Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 17, 2018, 04:33 PM

  • 19 0093_19 0092_5172018_093713.mp4

Date
05/17/2018
W/O
PENDING
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00722
PipeID
P15285
Time
9:33 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7713
Sewer Name
19 EAST ARTESIA TRUNK, SECTS 1,2,3,&5
City
LAKEWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 19
Page No.
07
Purpose
Capital Improvement Program Assesment
Project
20180517DF_EAST_ARTESIA_TRUNK_SECTS_1_2_3_5_
Material
Reinforced Concrete Pipe
Shape
Circular
Height
21 in.
Upstream MH
19 0093
Downstream MH
19 0092
Dir. of Survey
Downstream
Length Surveyed
277.1 ft.
Total Length
277.1 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole 19 0093 to 19 0092
MH: 19 0093MH: 19 0092downstream0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 9:35 AM0 ft. MWL - Water Level, 20 %of cross sectional area2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 65%MAG2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start102.9 ft. MGP - General Photograph273.2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish273.2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish273.2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 80%MAG277.1 ft. AMH - Downstream Manhole, Survey Ends - 9:53 AM277.1 ft. MGO - General Observation - ROACHES @ MH277.1 ft. MGO - General Observation - Grease Throughout The Reach (5%)

Observation photos (3)

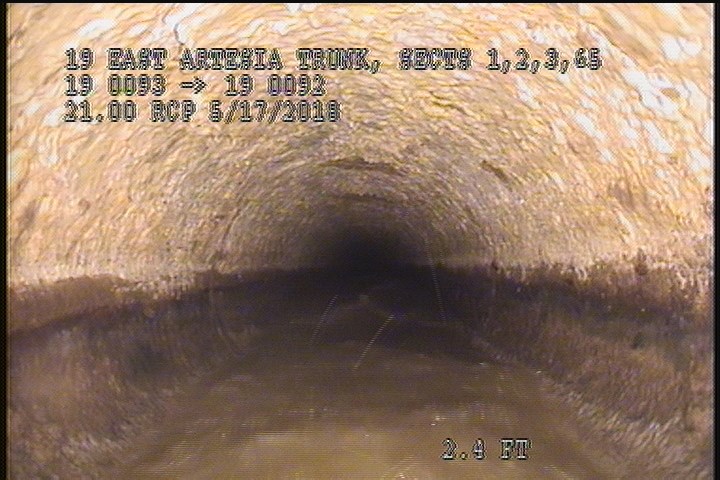

  • Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 65%MAG

    2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 65%MAG

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

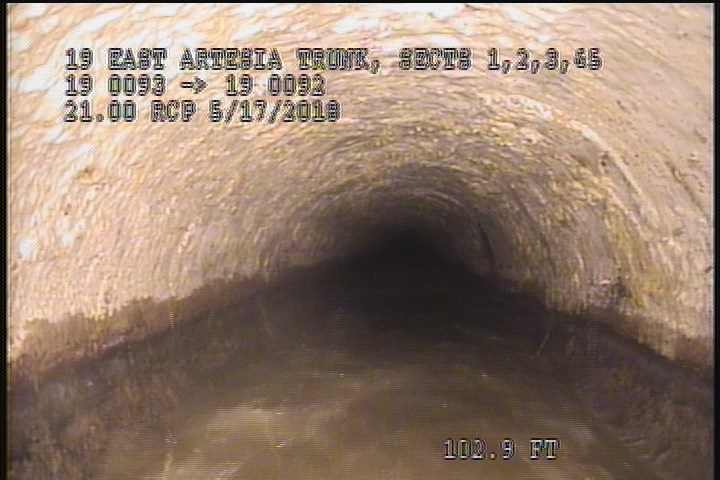

  • General Photograph

    102.9 ft. - General Photograph

All inspections of P15285Work order PENDING

Observations (13)

DistanceCodeObservation
273.2SSS—
273.2SAV—
2SZ65%MAG
2SAV—
277.1AMH9:53 AM
0MWM—
102.9MGP—
0AMH9:35 AM
2SSS—
273.2SZ80%MAG
0MWL—
277.1MGOROACHES @ MH
277.1MGOGrease Throughout The Reach (5%)

Properties (3)

custom_field_two
3
customer
LACSD
datetime
2018-05-17T09:33:41-07:00
