Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 17, 2018, 03:52 PM

  • 19 0094_19 0093_5172018_085904.mp4

Date
05/17/2018
W/O
PENDING
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00722
PipeID
P15286
Time
8:52 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7713
Sewer Name
19 EAST ARTESIA TRUNK, SECTS 1,2,3,&5
City
LAKEWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 19
Page No.
07
Purpose
Capital Improvement Program Assesment
Project
20180517DF_EAST_ARTESIA_TRUNK_SECTS_1_2_3_5_
Material
Reinforced Concrete Pipe
Shape
Circular
Height
21 in.
Upstream MH
19 0094
Downstream MH
19 0093
Dir. of Survey
Downstream
Length Surveyed
434.2 ft.
Total Length
434.2 ft.
Structural Index
3
Structural Quick
5131
Structural Rating
10
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
12
Pipe schematic from manhole 19 0094 to 19 0093
MH: 19 0094MH: 19 0093downstream0 ft. AMH - Upstream Manhole, Survey Begins - 8:56 AM0.1 ft. MWM - Water Mark, 30 %of cross sectional area0.1 ft. MWL - Water Level, 25 %of cross sectional area2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. UNKNOWN2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 55% MAG2 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active2 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start88.1 ft. MGP - General Photograph112.5 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: YES, 4" - Unkown147.4 ft. MGP - General Photograph162.4 ft. TFD - Tap Factory Made Defective, at 12 o'clock, -, within 8 inches of joint: YES, 4" - Active15%GREASE238 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4" - Open267.6 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"285.8 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"329.8 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 4" - Open430 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 55%MAG430 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish430 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish430 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish431.1 ft. MGO - General Observation - ROACHES @ MH434.2 ft. AMH - Downstream Manhole, Survey Ends - 9:33 AM

Observation photos (7)

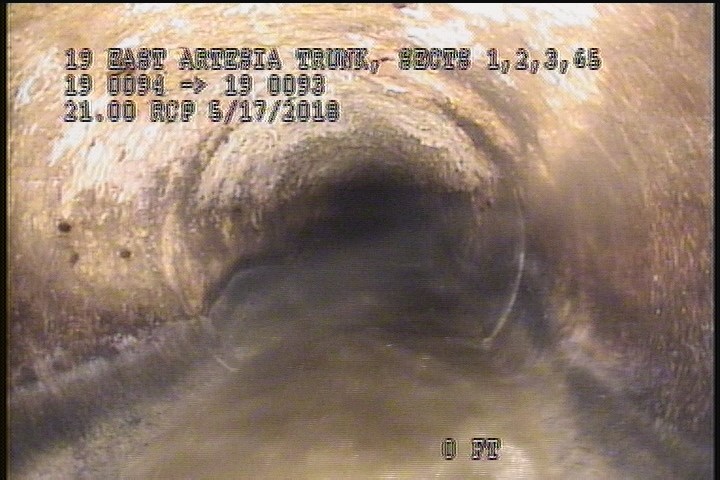

  • Water Level, 25 %of cross sectional area

    0.1 ft. - Water Level, 25 %of cross sectional area

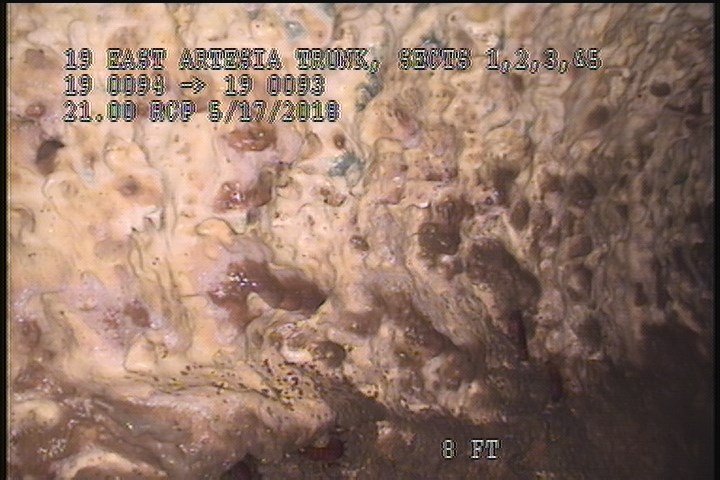

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

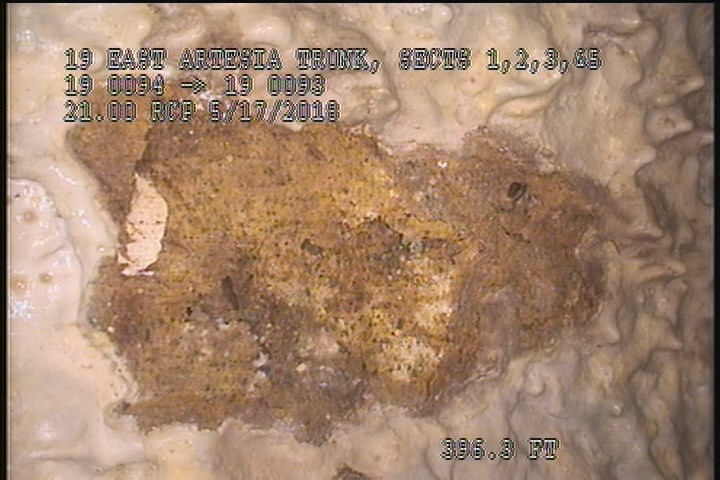

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

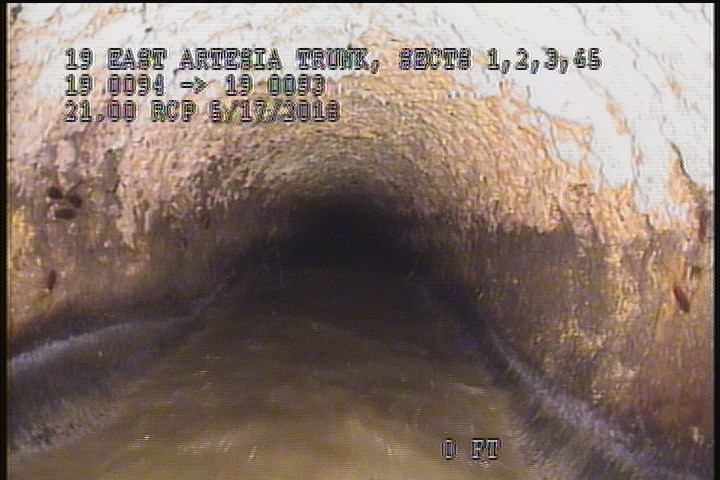

  • Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 55% MAG

    2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 55% MAG

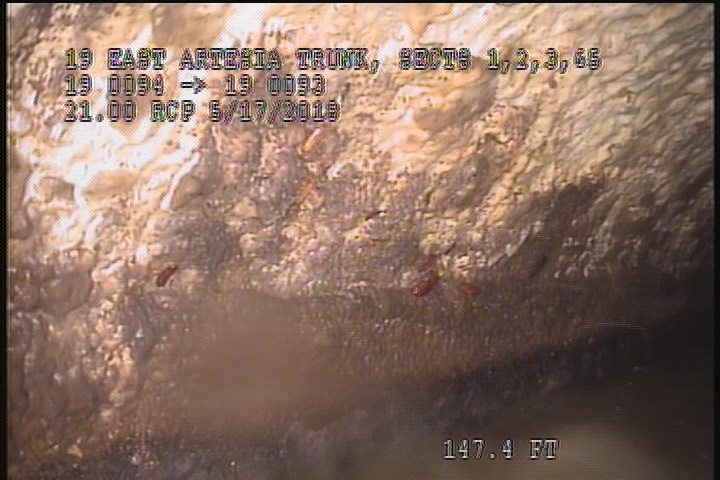

  • General Photograph

    88.1 ft. - General Photograph

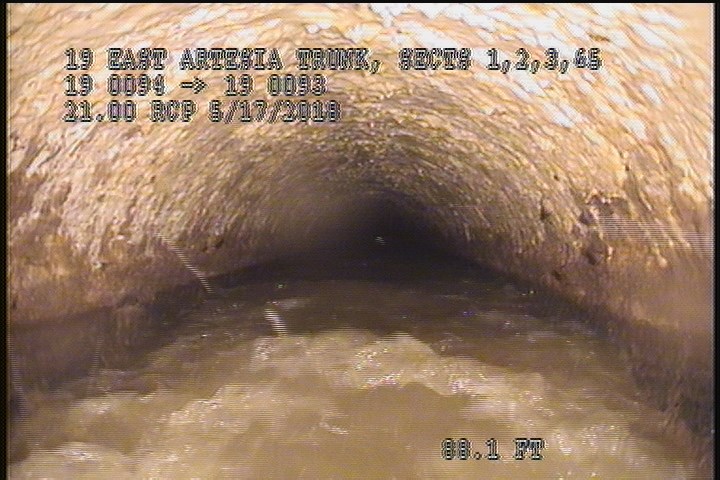

  • General Photograph

    147.4 ft. - General Photograph

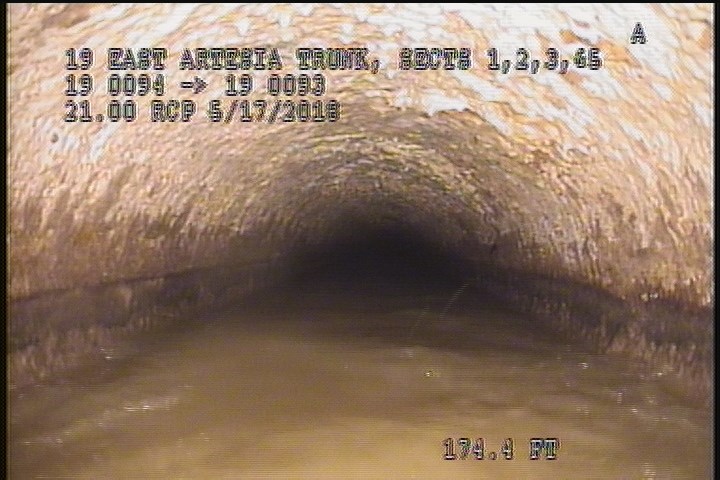

  • Tap Factory Made Defective, at 12 o'clock, -, within 8 inches of joint: YES, 4" - Active15%GREASE

    162.4 ft. - Tap Factory Made Defective, at 12 o'clock, -, within 8 inches of joint: YES, 4" - Active15%GREASE

All inspections of P15286Work order PENDING

Observations (23)

DistanceCodeObservation
267.6TFA—
434.2AMH9:33 AM
2SAV—
147.4MGP—
2SSS—
285.8TFA—
430SZ55%MAG
238TFOpen
2MGOConn. @ Mh, 3 O' Clock. UNKNOWN
0.1MWM—
112.5TFUnkown
0.1MWL—
2SZ55% MAG
430SSS—
430SRV—
0AMH8:56 AM
431.1MGOROACHES @ MH
2MGOConn. @ Mh, 9 O' Clock. Active
162.4TFDActive15%GREASE
2SRV—
430SAV—
88.1MGP—
329.8TFOpen

Properties (3)

custom_field_two
3
customer
LACSD
datetime
