Wastewater/Activity/PacpInspection/1.0Jul 21, 2016, 09:49 AM
02 0777_02 0776A_20160721_035956.mp4
- Date
- 07/21/2016
- W/O
- 574316
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00294
- PipeID
- P03336
- Time
- 2:49 AM
- Certificate
- U-507-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3659
- Sewer Name
- 02 OLD RIVER SCHOOL ROAD TRUNK, SECTS 1&2
- City
- DOWNEY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 24
- Purpose
- Routine Assessment
- Project
- WO_574316_TV02111_JUNE2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 02 0777
- Downstream MH
- 02 0776A
- Dir. of Survey
- Downstream
- Length Surveyed
- 274.3 ft.
- Total Length
- 274.3 ft.
- Structural Index
- 2
- Structural Quick
- 3122
- Structural Rating
- 7
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (3)

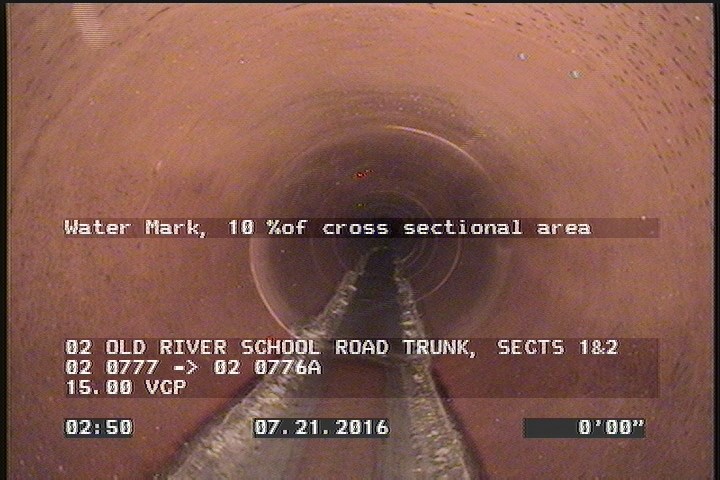

0 ft. - Water Mark, 10 %of cross sectional area

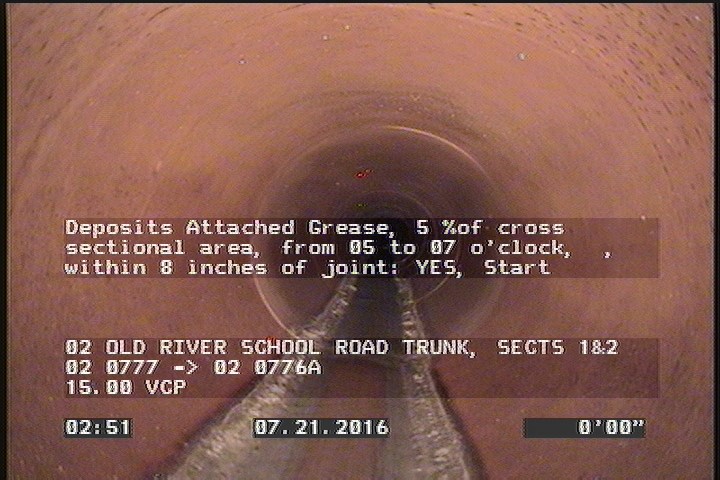

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

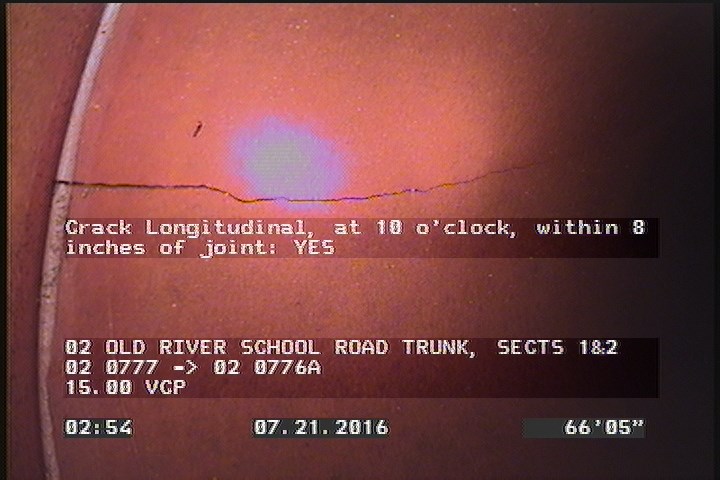

66.4 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 0 | MWL | — |
| 2 | CM | — |
| 76.7 | TFC | — |
| 274.3 | AMH | 02 0776A |
| 272 | DAGS | — |
| 118.9 | CL | — |
| 66.4 | CL | — |
| 228.3 | TFC | — |
| 180.7 | TFC | — |
| 28.8 | TFC | — |
| 2 | DAGS | — |
| 128.5 | TFC | — |
| 0 | AMH | 02 0777 |
Properties (4)
- additional_info
- SC305538
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-07-21T02:49:00-07:00
