Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 26, 2016, 07:20 AM

  • 02 0724_02 0723_20160726_013015.mp4

Date
07/26/2016
W/O
574316
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00294
PipeID
P03278
Time
12:20 AM
Certificate
U-507-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3662
Sewer Name
02 OLD RIVER SCHOOL ROAD TRUNK, SECTS 1&2
City
DOWNEY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
29
Purpose
Routine Assessment
Project
WO_574316_TV02111_JUNE2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
02 0723
Downstream MH
02 0724
Dir. of Survey
Upstream
Length Surveyed
256.8 ft.
Total Length
256.8 ft.
Structural Index
2
Structural Quick
2400
Structural Rating
8
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole 02 0723 to 02 0724
MH: 02 0723MH: 02 0724upstream0 ft. AMH - Upstream Manhole, Survey Ends - 02 07247.2 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES10.3 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish13.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"16.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"105.5 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - WANDERING 30%106 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4"109.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"138.1 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish224.1 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start226.5 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES226.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"228.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"256.8 ft. MWL - Water Level, 35 %of cross sectional area256.8 ft. AMH - Downstream Manhole, Survey Begins - 02 0723256.8 ft. MWM - Water Mark, 35 %of cross sectional area256.8 ft. MGO - General Observation - CONNECTION AT THE MH 3 O'CLOCK ACTIVE

Observation photos (4)

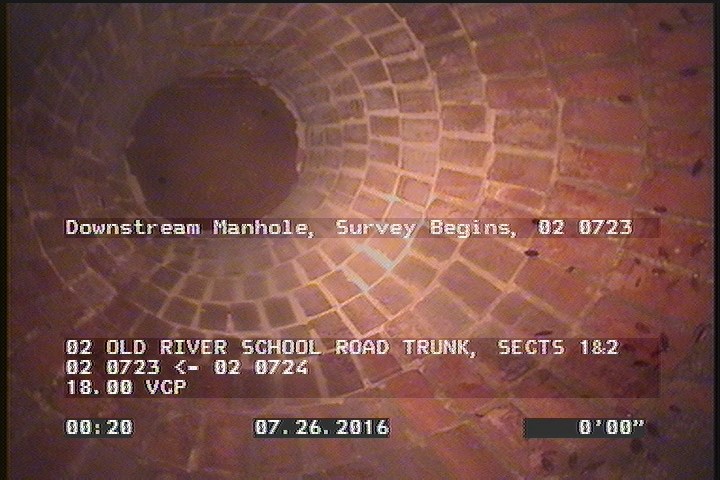

  • Downstream Manhole, Survey Begins - 02 0723

    0 ft. - Downstream Manhole, Survey Begins - 02 0723

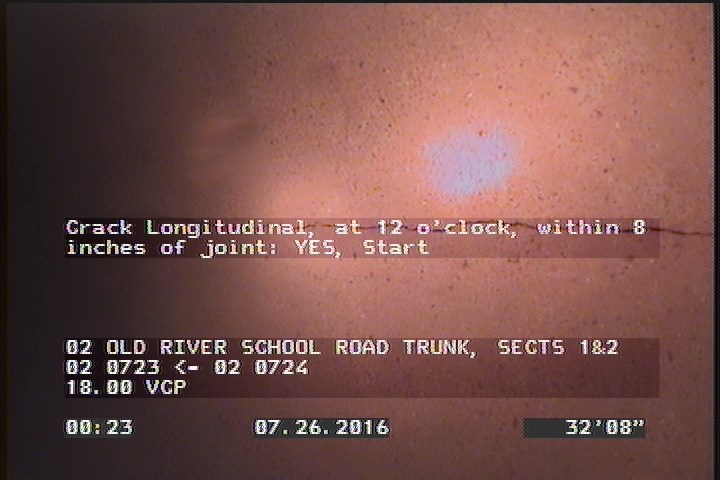

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

    32.7 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

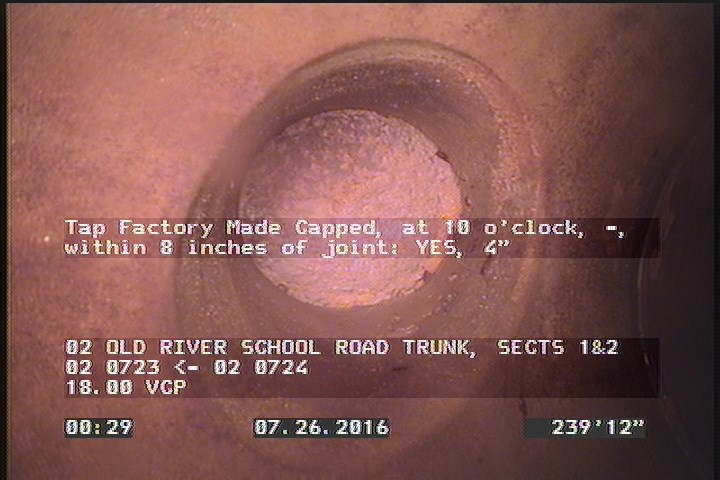

  • Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"

    240 ft. - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"

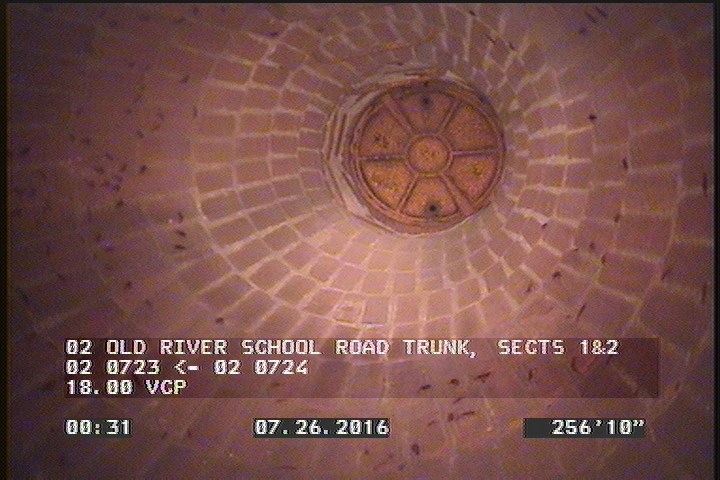

  • Upstream Manhole, Survey Ends - 02 0724

    256.8 ft. - Upstream Manhole, Survey Ends - 02 0724

All inspections of P03278Work order 574316

Observations (17)

DistanceCodeObservation
243.1TFC—
249.6SSS—
32.7CL—
0MWL—
246.5CL—
147.3TFC—
256.8AMH02 0724
30.3CL—
28TFC—
118.7CL—
0AMH02 0723
150.8TF—
30.3TFC—
240TFC—
0MWM—
151.3CLWANDERING 30%
0MGOCONNECTION AT THE MH 3 O'CLOCK ACTIVE

Properties (4)

additional_info
SC305541
custom_field_two
3
customer
LACSD
datetime
2016-07-26T00:20:00-07:00
