Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 22, 2016, 08:10 AM

  • 02 0769_02 0768_20160722_022657.mp4

Date
07/22/2016
W/O
574316
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00294
PipeID
P03327
Time
1:10 AM
Certificate
U-507-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3660
Sewer Name
02 OLD RIVER SCHOOL ROAD TRUNK, SECTS 1&2
City
DOWNEY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
24
Purpose
Routine Assessment
Project
WO_574316_TV02111_JUNE2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
02 0768
Downstream MH
02 0769
Dir. of Survey
Upstream
Length Surveyed
327.5 ft.
Total Length
327.5 ft.
Structural Index
2
Structural Quick
3123
Structural Rating
9
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
11
Pipe schematic from manhole 02 0768 to 02 0769
MH: 02 0768MH: 02 0769upstream0 ft. AMH - Upstream Manhole, Survey Ends - 02 07692.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish14.5 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: YES, 4"66.3 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 4"99.6 ft. CL - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES117.9 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: YES, 4"166.6 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: YES, 4"215.5 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 4"224.5 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES266.9 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 4"302.8 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES316 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 4"320.3 ft. CM - Crack Multiple, from 09 to 12 o'clock, within 8 inches of joint: YES325.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start327.5 ft. MWM - Water Mark, 20 %of cross sectional area327.5 ft. MWL - Water Level, 10 %of cross sectional area327.5 ft. AMH - Downstream Manhole, Survey Begins - 02 0768

Observation photos (3)

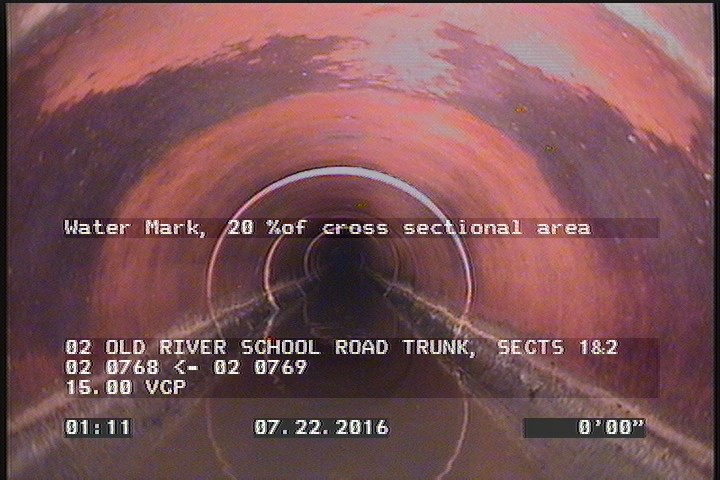

  • Water Mark, 20 %of cross sectional area

    0 ft. - Water Mark, 20 %of cross sectional area

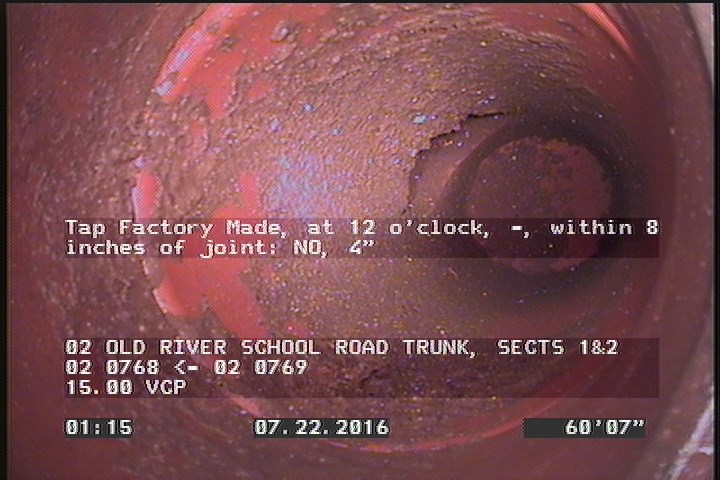

  • Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 4"

    60.6 ft. - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 4"

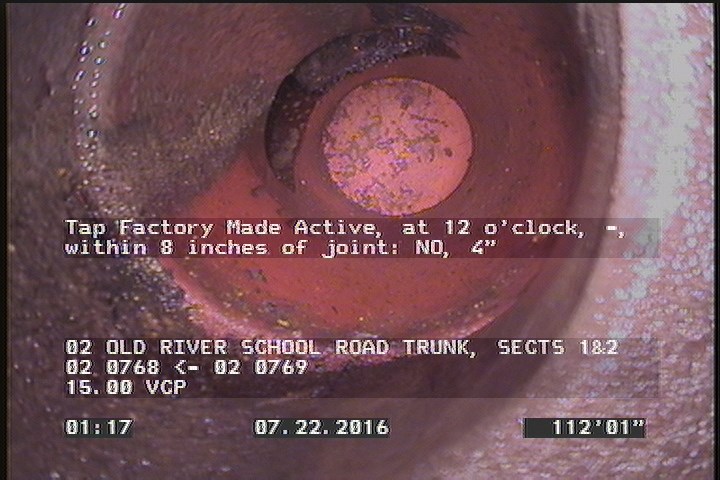

  • Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 4"

    112 ft. - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 4"

All inspections of P03327Work order 574316

Observations (17)

DistanceCodeObservation
24.7CL—
325.4DAGS—
103CL—
0MWM—
327.5AMH02 0769
7.2CM—
209.6TFA—
2DAGS—
60.6TF—
313TFA—
261.2TFA—
11.5TFC—
0MWL—
0AMH02 0768
227.9CL—
160.9TFA—
112TFA—

Properties (4)

additional_info
SC305539
custom_field_two
4
customer
LACSD
datetime
2016-07-22T01:10:00-07:00
