Wastewater/Activity/PacpInspection/1.0Jul 29, 2016, 06:29 AM

  • 02 0804_02 0803_20160729_005010.mp4

Date
07/28/2016
W/O
574316
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00294
PipeID
P03370
Time
11:29 PM
Certificate
U-507-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3666
Sewer Name
02 OLD RIVER SCHOOL ROAD TRUNK, SECTS 1&2
City
DOWNEY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
24
Purpose
Routine Assessment
Project
WO_574316_TV02111_JUNE2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
02 0804
Downstream MH
02 0803
Dir. of Survey
Downstream
Length Surveyed
343.6 ft.
Total Length
343.6 ft.
Structural Index
3
Structural Quick
3200
Structural Rating
6
O&M Index
2
O&M Quick
2212
O&M Rating
6
Overall Index
2
Overall Quick
—
Overall Rating
12
Pipe schematic from manhole 02 0804 to 02 0803
MH: 02 0804MH: 02 0803downstream0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES0 ft. AMH - Upstream Manhole, Survey Begins - 02 080414.8 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES34.2 ft. TBA - Tap Break-In Active, at 11 o'clock, -, within 8 inches of joint: YES, 4"37.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"48.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - WANDERING85.8 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"89 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"134.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"137.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"183 ft. RFC - Roots Fine Connection, at 11 o'clock183 ft. TFA - Tap Factory Made Active, at 11 o'clock, -, within 8 inches of joint: NO, 4"186.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"235.4 ft. RFC - Roots Fine Connection, at 12 o'clock235.4 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: YES, 4"238.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"284.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"330.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4", 4"333.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"340.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES - FINISH340.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish343.6 ft. AMH - Downstream Manhole, Survey Ends - 02 0803

Observation photos (4)

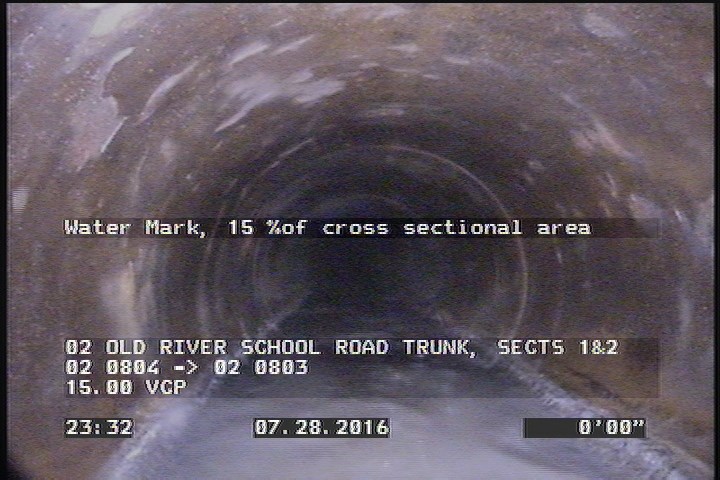

  • Water Mark, 15 %of cross sectional area

    0 ft. - Water Mark, 15 %of cross sectional area

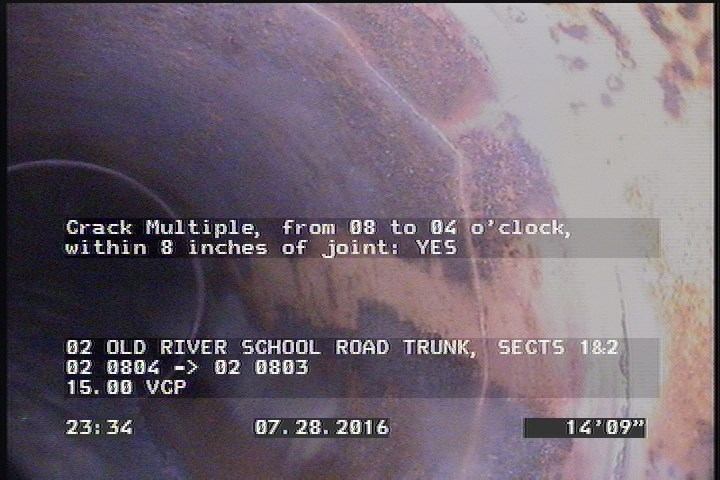

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    14.8 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

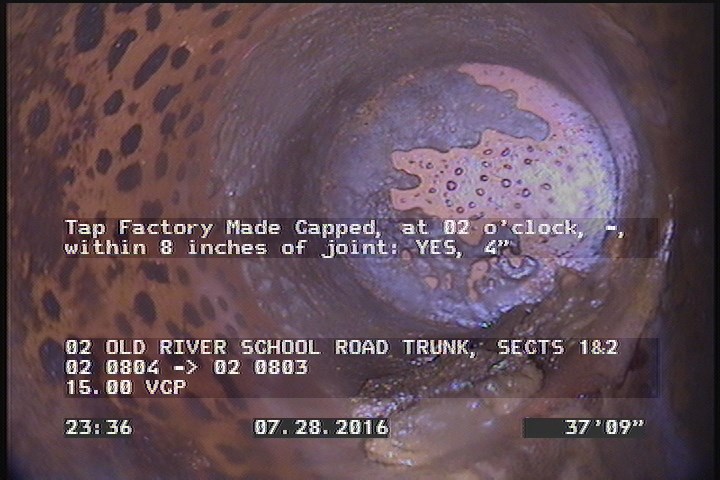

  • Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"

    37.7 ft. - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"

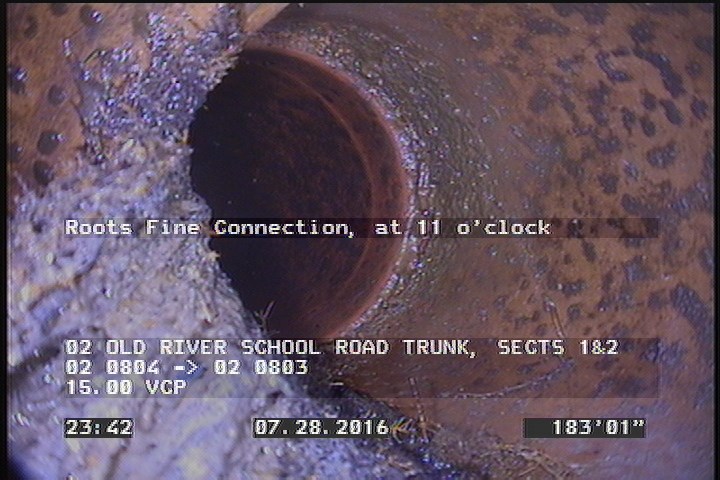

  • Roots Fine Connection, at 11 o'clock

    183 ft. - Roots Fine Connection, at 11 o'clock

All inspections of P03370Work order 574316

Observations (24)

DistanceCodeObservation
85.8TFA—
343.6AMH02 0803
137.9TFC—
14.8CM—
183RFC—
333.7TFC—
186.2TFC—
235.4RFC—
89TFC—
0MWM—
284.2TFC—
0MWL—
37.7TFC—
238.8TFC—
0DAGS—
235.4TFA—
183TFA—
330.3TFC—
134.6TFC—
48.6CMWANDERING
340.3DAGSFINISH
34.2TBA—
340.3CM—
0AMH02 0804

Properties (4)

additional_info
SC305545
custom_field_two
3
customer
LACSD
datetime
2016-07-28T23:29:00-07:00
