Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 21, 2016, 10:10 AM

  • 02 0776_02 0775_20160721_042535.mp4

Date
07/21/2016
W/O
574316
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00294
PipeID
P03334
Time
3:10 AM
Certificate
U-507-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3659
Sewer Name
02 OLD RIVER SCHOOL ROAD TRUNK, SECTS 1&2
City
DOWNEY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
24
Purpose
Routine Assessment
Project
WO_574316_TV02111_JUNE2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
02 0776
Downstream MH
02 0775
Dir. of Survey
Downstream
Length Surveyed
316.3 ft.
Total Length
316.3 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole 02 0776 to 02 0775
MH: 02 0776MH: 02 0775downstream0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT THE MH 3 O'CLOCK ACTIVE0 ft. AMH - Upstream Manhole, Survey Begins - 02 07763.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start8 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 4"59.7 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 4"93.3 ft. TB - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: YES, 4"94.9 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: YES, 4"164.1 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"212.2 ft. TBA - Tap Break-In Active, at 12 o'clock, -, within 8 inches of joint: YES, 4"263.6 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 4"306 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 4"314 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish316.3 ft. AMH - Downstream Manhole, Survey Ends - 02 0775

Observation photos (4)

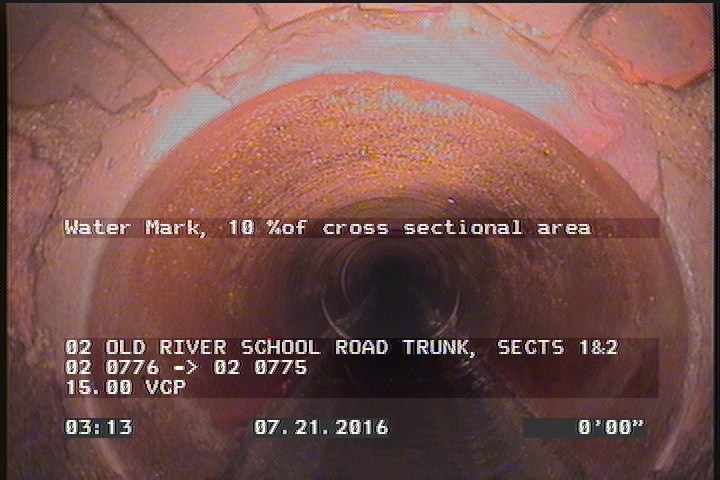

  • Water Mark, 10 %of cross sectional area

    0 ft. - Water Mark, 10 %of cross sectional area

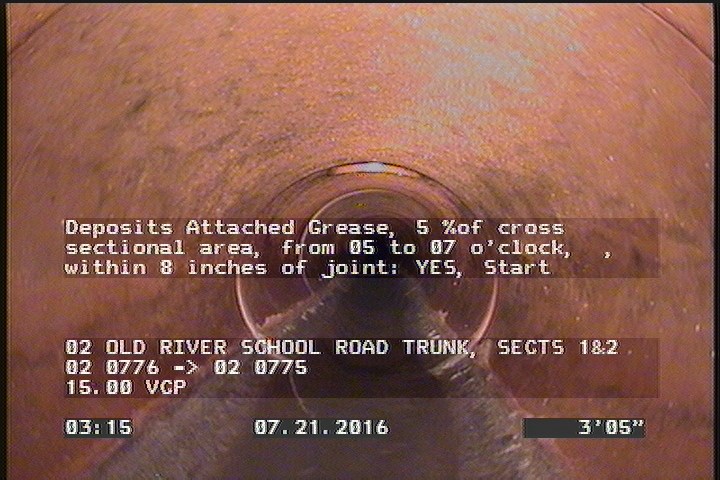

  • Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

    3.4 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

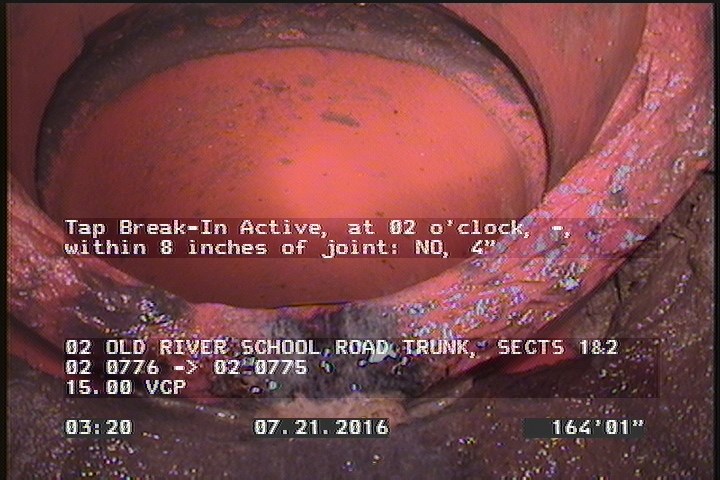

  • Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"

    164.1 ft. - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"

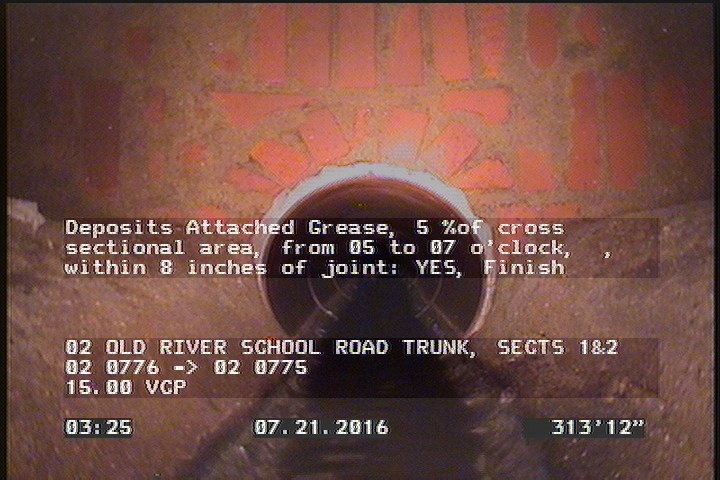

  • Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish

    314 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish

All inspections of P03334Work order 574316

Observations (15)

DistanceCodeObservation
306TFC—
59.7TFC—
3.4DAGS—
94.9TB—
0MWL—
314DAGS—
93.3TB—
164.1TBA—
212.2TBA—
263.6TFC—
0MWM—
8TFC—
0MGOCONNECTION AT THE MH 3 O'CLOCK ACTIVE
316.3AMH02 0775
0AMH02 0776

Properties (4)

additional_info
SC305538
custom_field_two
4
customer
LACSD
datetime
2016-07-21T03:10:00-07:00
