Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 23, 2018, 09:16 AM

  • B 1270_B 1269_5232018_021737.mp4

Date
05/23/2018
W/O
0707873
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z01126
PipeID
P25165
Time
2:16 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0867R
Sewer Name
B JOINT OUTFALL B - UNIT 6J
City
PASADENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
16
Purpose
Maintenance Related
Project
20180523MDM_JOINT_OUTFALL_B_UNIT_6J
Material
Reinforced Concrete Pipe
Shape
Circular
Height
24 in.
Upstream MH
B 1270
Downstream MH
B 1269
Dir. of Survey
Downstream
Length Surveyed
358.1 ft.
Total Length
358.1 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
1
O&M Quick
3117
O&M Rating
10
Overall Index
1
Overall Quick
—
Overall Rating
10
Pipe schematic from manhole B 1270 to B 1269
MH: B 1270MH: B 1269downstream0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 2:20AM3.5 ft. RMJ - Roots Medium Joint, from 08 to 04 o'clock, 10 %, within 8 inches of joint: YESR80.5 ft. MGP - General Photograph - PIPE MEASURED AS 18"RCP-CHANGED TIRES119 ft. RFJ - Roots Fine Joint, from 08 to 10 o'clock, within 8 inches of joint: YESR - 1%130.6 ft. RFJ - Roots Fine Joint, from 02 to 04 o'clock, within 8 inches of joint: YESR - 3%138.4 ft. RFJ - Roots Fine Joint, from 02 to 04 o'clock, within 8 inches of joint: YESR - 2%143.5 ft. RFJ - Roots Fine Joint, from 02 to 04 o'clock, within 8 inches of joint: YESR - 2%177.2 ft. RFJ - Roots Fine Joint, from 02 to 04 o'clock, within 8 inches of joint: YESR - 1%255.3 ft. RFJ - Roots Fine Joint, from 02 to 04 o'clock, within 8 inches of joint: YESR - 1%339.4 ft. RFJ - Roots Fine Joint, from 10 to 02 o'clock, within 8 inches of joint: YESR - 3%358.1 ft. AMH - Downstream Manhole, Survey Ends - 3:15AM

Observation photos (2)

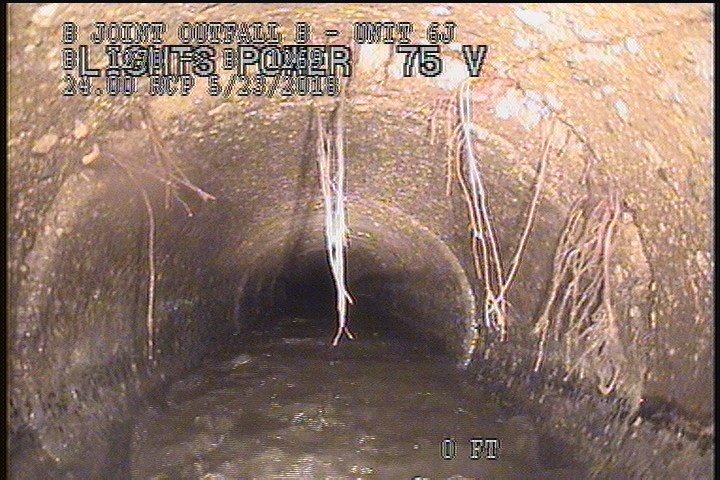

  • Roots Medium Joint, from 08 to 04 o'clock, 10 %, within 8 inches of joint: YESR

    3.5 ft. - Roots Medium Joint, from 08 to 04 o'clock, 10 %, within 8 inches of joint: YESR

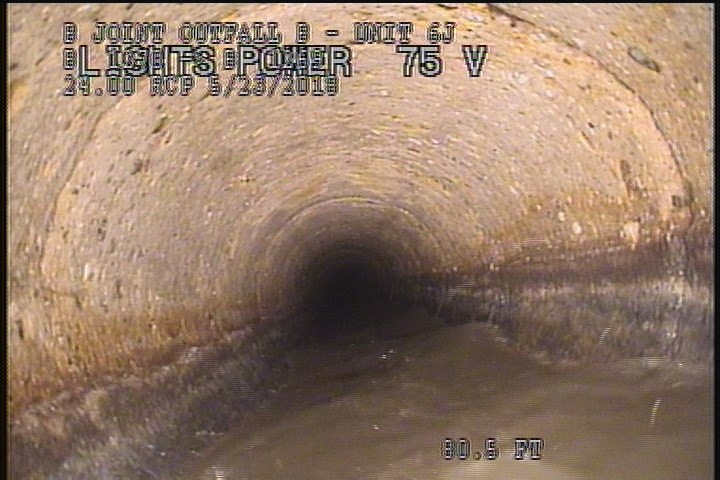

  • General Photograph - PIPE MEASURED AS 18"RCP-CHANGED TIRES

    80.5 ft. - General Photograph - PIPE MEASURED AS 18"RCP-CHANGED TIRES

All inspections of P25165Work order 0707873

Observations (13)

DistanceCodeObservation
358.1AMH3:15AM
177.2RFJ1%
0MWM—
255.3RFJ1%
119RFJ1%
143.5RFJ2%
339.4RFJ3%
138.4RFJ2%
130.6RFJ3%
0MWL—
0AMH2:20AM
80.5MGPPIPE MEASURED AS 18"RCP-CHANGED TIRES
3.5RMJ—

Properties (3)

additional_info
POST ROOT CCTV-PIPE MEASURED AT 18" RCP NOT 24" RCP
customer
LACSD
datetime
2018-05-23T02:16:28-07:00
