Wastewater/Activity/PacpInspection/1.0May 21, 2018, 03:45 PM
Section#1_A 0040_A 0039__5212018__I0011.mp4
- Date
- 05/21/2018
- W/O
- 0701060
- Weather
- Dry
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z00334
- PipeID
- P08415
- Time
- 8:45 AM
- Certificate
- U-1014-06022541
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- I0011
- Sewer Name
- A JOINT OUTFALL A - UNIT 3C
- City
- COMPTON
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 09
- Purpose
- Capital Improvement Program Assesment
- Project
- 20180521SHO_JOINT_OUTFALL_A_UNIT_3C
- Material
- RCP-CTL
- Shape
- Square
- Height
- 78 in.
- Width
- 78 in.
- Upstream MH
- A 0040
- Downstream MH
- A 0039
- Dir. of Survey
- Downstream
- Length Surveyed
- 1094.8 ft.
- Total Length
- 1094.8 ft.
- Structural Index
- 3
- Structural Quick
- 3200
- Structural Rating
- 6
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (5)

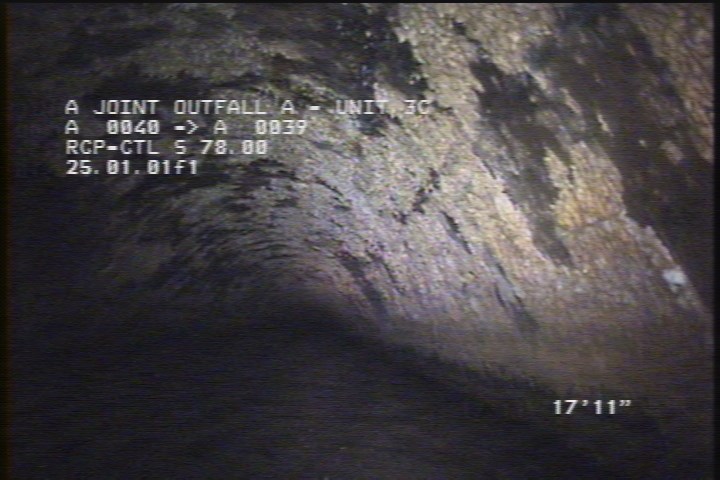

16.7 ft. - General Observation - 70%-80% MAG COAT INTACT

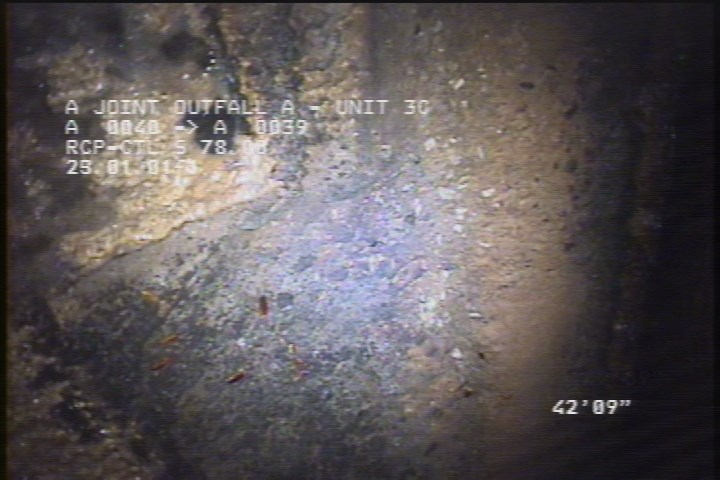

42.7 ft. - Surface Aggregate Projecting, from 03 to 04 o'clock, within 8 inches of joint: YES

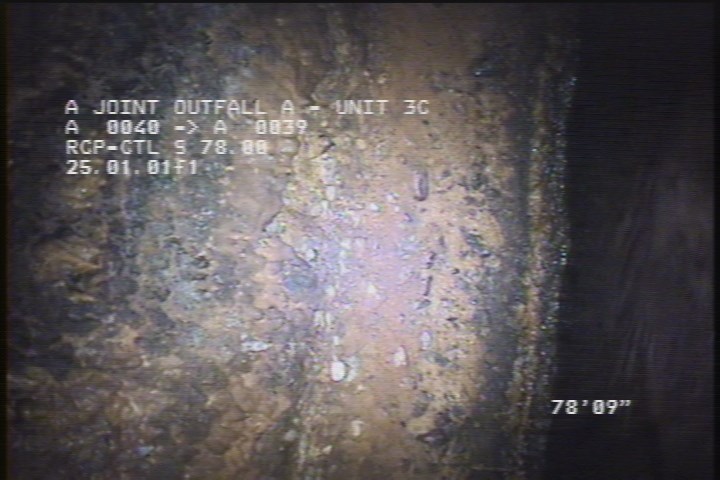

78.7 ft. - Surface Aggregate Projecting, from 08 to 09 o'clock, within 8 inches of joint: YES

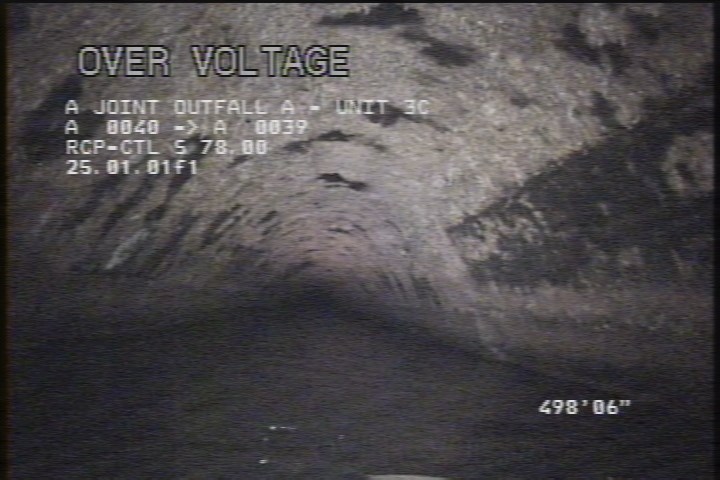

497.8 ft. - General Observation - 25% MISSING TILES

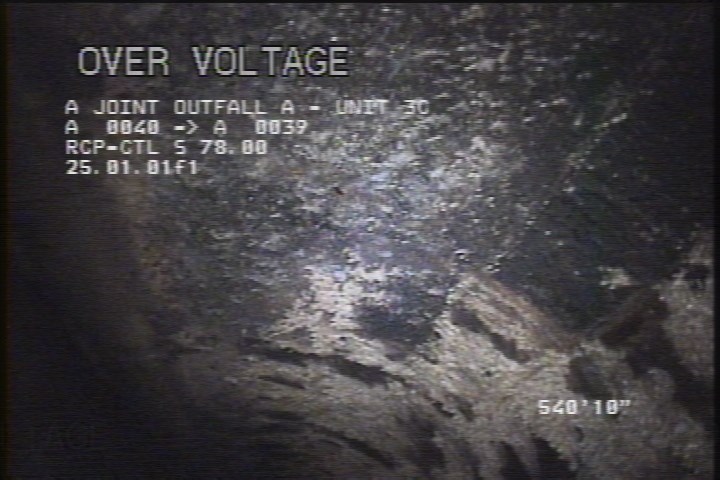

537 ft. - General Observation - 20% MISSING TILES
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 497.8 | MGO | 25% MISSING TILES |
| 0 | AMH | 1020 |
| 0 | MWL | — |
| 42.7 | SAP | — |
| 0 | MWM | — |
| 16.7 | MGO | 70%-80% MAG COAT INTACT |
| 78.7 | SAP | — |
| 537 | MGO | 20% MISSING TILES |
| 1094.8 | AMH | 1225 |
| 247 | TFA | — |
Properties (5)
- additional_info
- RFIR
- custom_field_three
- SMALL AMOUNT OF EXP. AGG.
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-05-21T08:45:55-07:00
