Wastewater/Activity/PacpInspection/1.0May 21, 2018, 12:05 PM
B 1535_B 1534_5212018_055436.mp4
- Date
- 05/21/2018
- W/O
- 070705
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z01200
- PipeID
- P26345
- Time
- 5:05 AM
- Certificate
- 0-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0864
- Sewer Name
- B JOINT OUTFALL B - UNIT 6J RELIEF
- City
- LA CANADA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 03
- Purpose
- Capital Improvement Program Assesment
- Project
- 20180521MDM_JOINT_OUTFALL_B_UNIT_6J_RELIEF
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Upstream MH
- B 1535
- Downstream MH
- B 1534
- Dir. of Survey
- Downstream
- Length Surveyed
- 17.8 ft.
- Total Length
- 17.8 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (2)

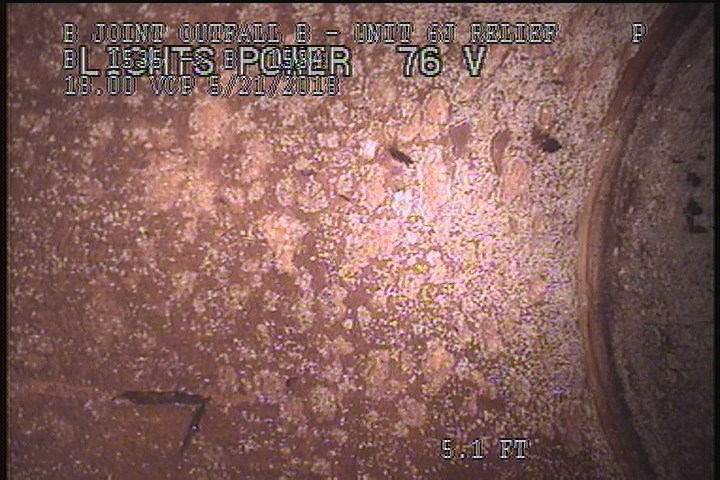

5.1 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PIPE

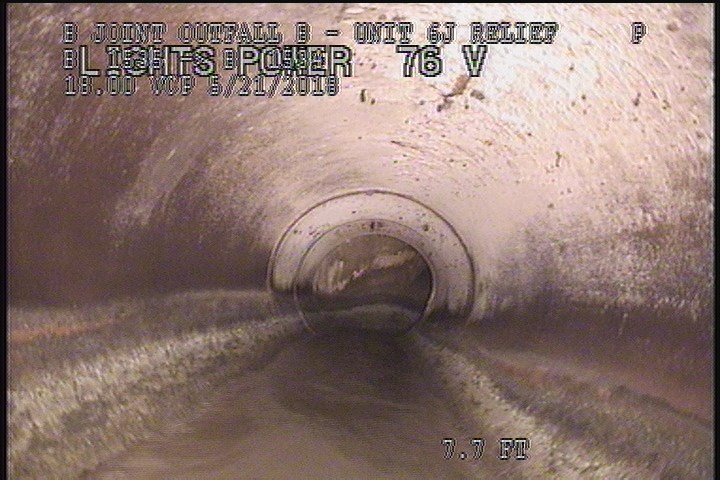

7.7 ft. - General Observation - 18" VCP
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 7.7 | MGO | 18" VCP |
| 17.8 | AMH | 6:00AM |
| 0 | MWL | — |
| 0 | MWM | — |
| 0 | AMH | 5:55AM |
| 5.1 | SSS | BLISTERING PIPE |
| 17.2 | SSS | BLISTERING PIPE |
Properties (4)
- custom_field_three
- BLISTERING VCP
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-05-21T05:05:07-07:00
