Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 12, 2016, 09:11 PM
Date
07/12/2016
W/O
574316
Weather
Dry
Operator/Surveyor
N. ZAHREDDINE
Sewer ID
Z00294
PipeID
P03376
Time
2:11 PM
Certificate
N/A
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3204
Sewer Name
02 OLD RIVER SCHOOL ROAD TRUNK, SECTS 1&2
City
DOWNEY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
24
Purpose
Routine Assessment
Project
WO_574316_TV02111_JUNE2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
02 0810
Downstream MH
02 0809
Dir. of Survey
Downstream
Length Surveyed
350.2 ft.
Total Length
350.2 ft.
Structural Index
3
Structural Quick
433J
Structural Rating
185
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
187
Pipe schematic from manhole 02 0810 to 02 0809
MH: 02 0810MH: 02 0809downstream0 ft. AMH - Upstream Manhole, Survey Begins - 02 08100 ft. MGO - General Observation - CONNECTION AT THE MH 90 ft. MGO - General Observation - VERMIN COCKROACH0 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"10.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"12.1 ft. FC - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES24 ft. FM - Fracture Multiple, from 02 to 09 o'clock, within 8 inches of joint: YES41.1 ft. CH2 - Crack Longitudinal Hinge, 2, from 08 to 03 o'clock, within 8 inches of joint: YES48.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4", 4"61.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 4"62.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start108.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"110.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"155.1 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 4"160.1 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: NO, 4"206.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"209 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"257.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"264 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"305.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"310.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"335 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES346.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish350 ft. MGO - General Observation - VERMIN COCKROACH350.2 ft. AMH - Downstream Manhole, Survey Ends - 02 0809

Observation photos (6)

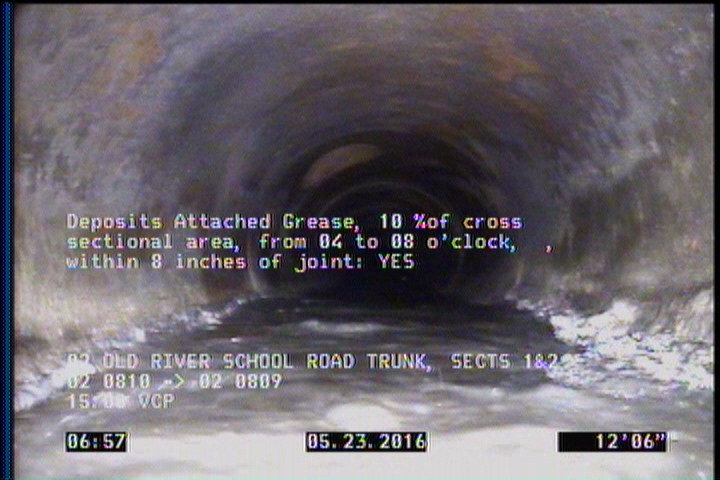

  • Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES

    0 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES

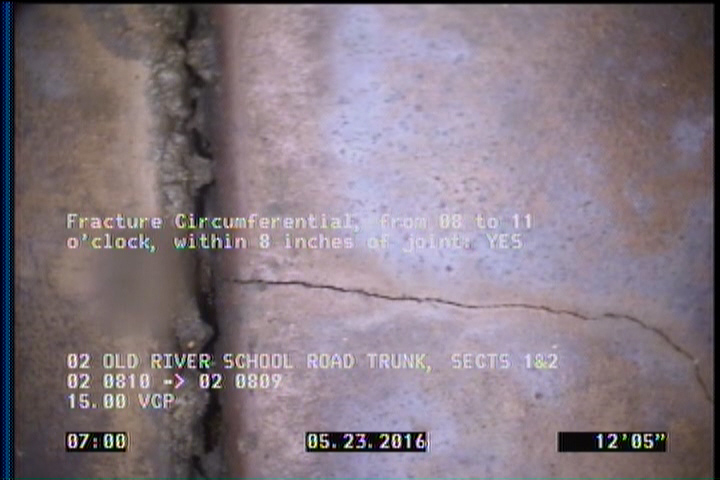

  • Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES

    12.1 ft. - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES

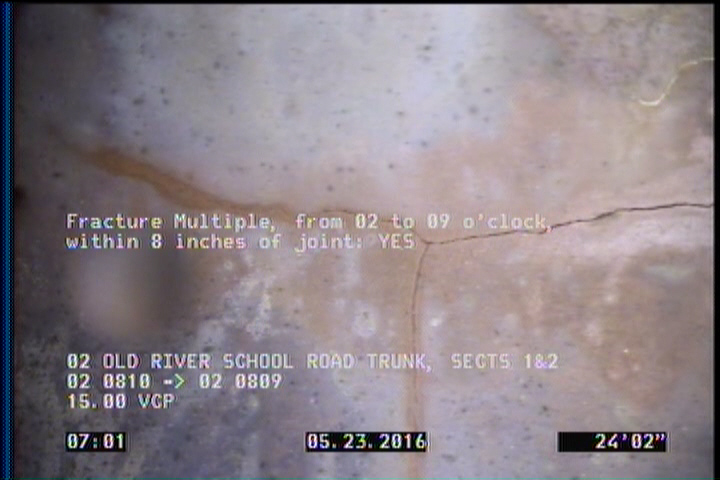

  • Fracture Multiple, from 02 to 09 o'clock, within 8 inches of joint: YES

    24 ft. - Fracture Multiple, from 02 to 09 o'clock, within 8 inches of joint: YES

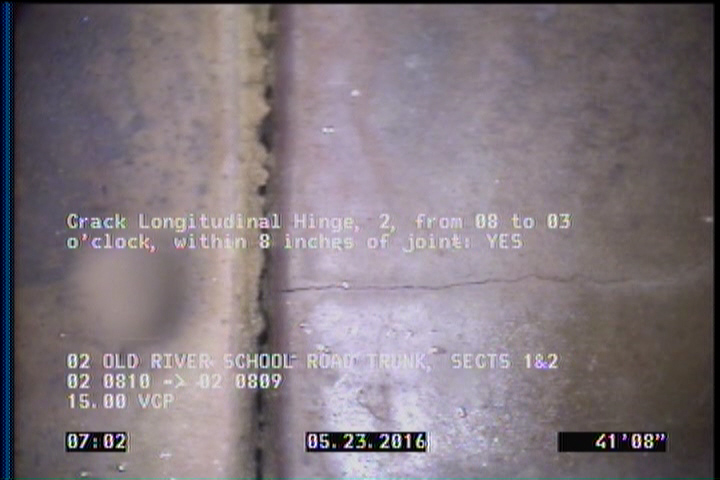

  • Crack Longitudinal Hinge, 2, from 08 to 03 o'clock, within 8 inches of joint: YES

    41.1 ft. - Crack Longitudinal Hinge, 2, from 08 to 03 o'clock, within 8 inches of joint: YES

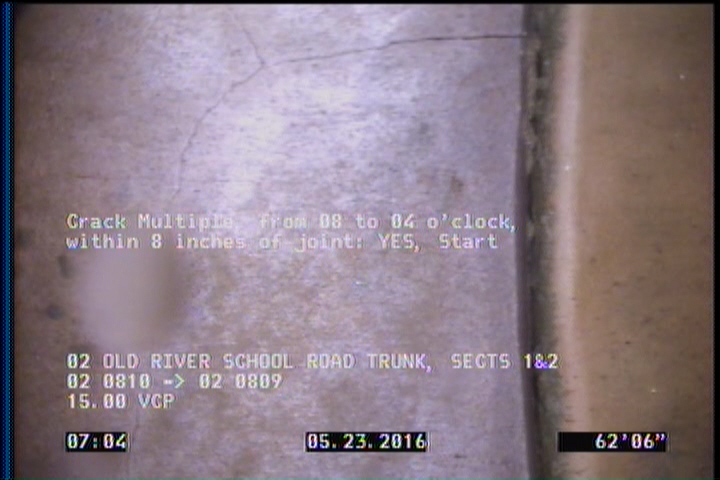

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    62.1 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

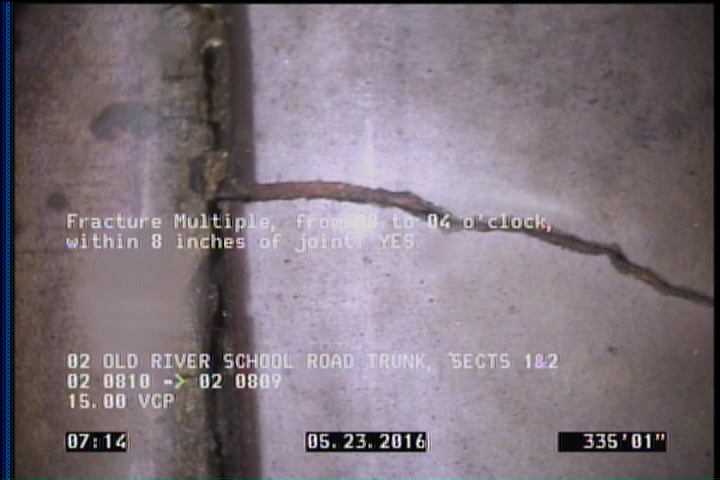

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    335 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

All inspections of P03376Work order 574316

Observations (26)

DistanceCodeObservation
346.1CM—
0AMH02 0810
0MGOCONNECTION AT THE MH 9
41.1CH2—
10.1TFC—
257.1TFC—
206.1TFC—
209TFC—
62.1CM—
350MGOVERMIN COCKROACH
335FM—
160.1TFC—
155.1TFC—
264TFC—
108.1TFC—
310.1TFC—
24FM—
0MGOVERMIN COCKROACH
110.1TFC—
350.2AMH02 0809
48.1TFC—
305.1TFC—
12.1FC—
61.1TF—
7TFC—
0DAGS—

Properties (4)

additional_info
SC300662
custom_field_two
3
customer
LACSD
datetime
2016-07-12T14:11:27-07:00
