Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 4, 2017, 08:13 AM
Date
11/04/2017
W/O
#
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z01180
PipeID
P01087
Time
1:13 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6859
Sewer Name
G JOINT OUTFALL G - UNIT 8
City
LYNWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
13
Purpose
Routine assessment
Project
JOINT_OUTFALL_G_UNIT_8
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Upstream MH
G 0182
Downstream MH
G 0181
Dir. of Survey
Downstream
Length Surveyed
3 ft.
Total Length
3 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
5
O&M Quick
5100
O&M Rating
5
Overall Index
5
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole G 0182 to G 0181
MH: G 0182MH: G 0181downstream0 ft. MWM - Water Mark, 100 %of cross sectional area0 ft. MWL - Water Level, 100 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 1:45AM3 ft. MSA - Survey Abandoned - DOWNLEG UPSTREAM SIPHON SOUTH

Observation photos (2)

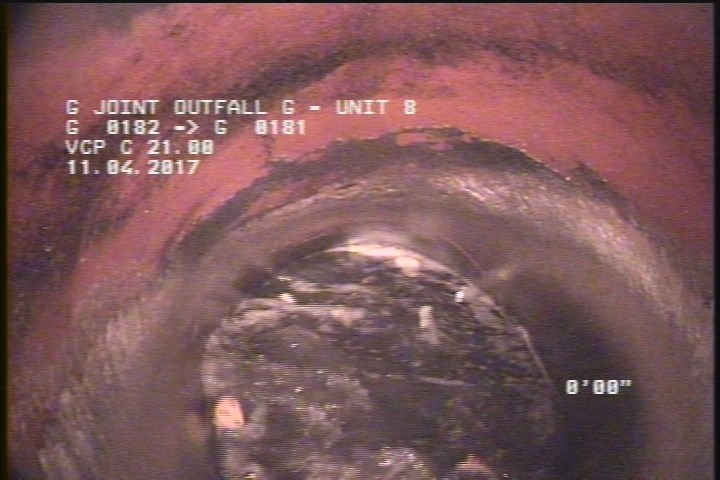

  • Water Mark, 100 %of cross sectional area

    0 ft. - Water Mark, 100 %of cross sectional area

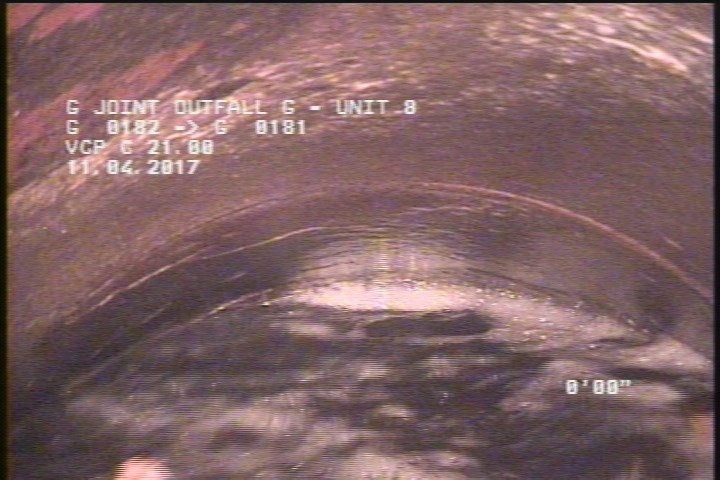

  • Survey Abandoned - DOWNLEG UPSTREAM SIPHON SOUTH

    3 ft. - Survey Abandoned - DOWNLEG UPSTREAM SIPHON SOUTH

All inspections of P01087Work order #

Observations (4)

DistanceCodeObservation
0MWM—
0MWL—
0AMH1:45AM
3MSADOWNLEG UPSTREAM SIPHON SOUTH

Properties (4)

additional_info
DOWNLEG UPSTREAM SIPHON SOUTH
custom_field_two
4
customer
LACSD
datetime
2017-11-04T01:13:12-07:00
