Wastewater/Activity/PacpInspection/1.0Apr 30, 2018, 07:42 AM
Section#7_18 1182_18 0882__4302018__G6992.mp4
- Date
- 04/30/2018
- W/O
- 0701634
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00709
- PipeID
- P14734
- Time
- 12:42 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- G6992
- Sewer Name
- 18 SO WHITTIER OUTFALL RLF TR, SECTS 1,2A,2B,2C,&3
- City
- SOUTH WHITTIER
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 20
- Purpose
- Routine Assessment
- Project
- 20180428MDM_SO_WHITTIER_OUTFALL_RLF_TR_SECTS_1_2A_2B_2C_3
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 30 in.
- Upstream MH
- 18 1182
- Downstream MH
- 18 0882
- Dir. of Survey
- Downstream
- Length Surveyed
- 8.8 ft.
- Total Length
- 8.8 ft.
- Structural Index
- 2
- Structural Quick
- 2200
- Structural Rating
- 4
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (2)

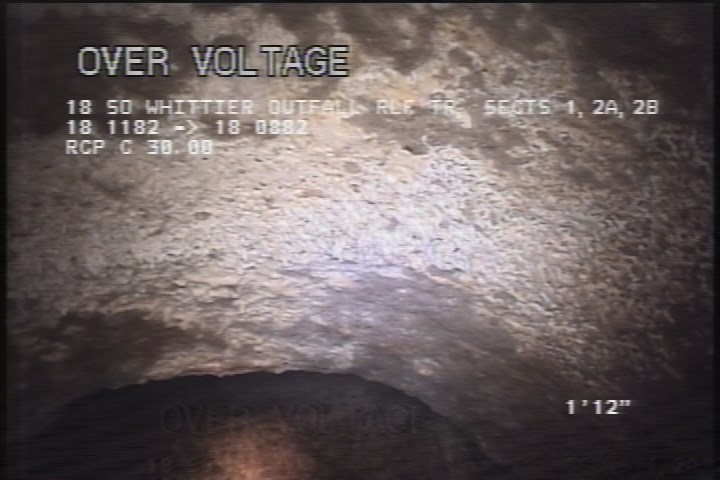

2 ft. - General Observation - MAG COAT 10%

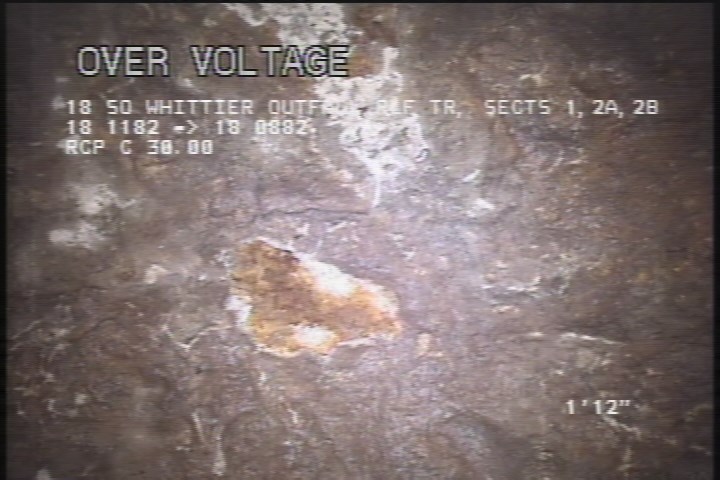

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 8.1 | SSS | BLISTERING PEELING CONCRETE |
| 2 | MGO | MAG COAT 10% |
| 2 | SSS | BLISTERING PEELING CONCRETE |
| 0 | MWL | — |
| 8.8 | AMH | 12:55AM |
| 0 | AMH | 12:45AM |
| 8.1 | MGO | MH CONN 9:00 OPEN |
Properties (4)
- custom_field_three
- BLISTERING PEELING CONCRETE
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-04-30T00:42:38-07:00
