Wastewater/Activity/PacpInspection/1.0May 4, 2018, 08:56 AM
02 0947A_H 0188 _04052018_020737.mp4
- Date
- 05/04/2018
- W/O
- 695978
- Weather
- Dry
- Operator/Surveyor
- K. ADAME
- Sewer ID
- Z00279
- PipeID
- P04585
- Time
- 1:56 AM
- Certificate
- U-0817-07009000
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5609
- Sewer Name
- 02 MONTEBELLO TRUNK
- City
- BELL GARDENS, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 23
- Purpose
- Routine Assessment
- Project
- WO_695978_TV02334_APR2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 02 0947A
- Downstream MH
- H 0188
- Dir. of Survey
- Downstream
- Length Surveyed
- 120.5 ft.
- Total Length
- 120.5 ft.
- Structural Index
- 2
- Structural Quick
- 3121
- Structural Rating
- 6
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (3)

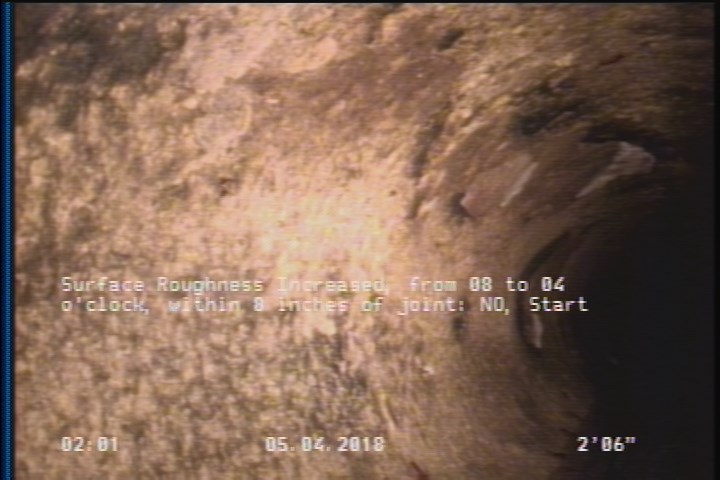

2.5 ft. - Surface Roughness Increased, from 08 to 04 o'clock, within 8 inches of joint: NO, Start
17.9 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start
65.3 ft. - Surface Spalling, from 08 to 09 o'clock, within 8 inches of joint: YES
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 120.4 | SAV | — |
| 0 | MWL | — |
| 41.1 | TB | — |
| 0 | AMH | 02 0947A |
| 120.5 | AMH | H 0188 |
| 120.5 | MGO | SERVICE CONNECTION AT 3 O' CLOCK AT MH |
| 65.3 | SSS | — |
| 0 | MGO | SERVICE CONNECTION AT 9 O'CLOCK AT MH |
| 17.9 | SAV | — |
| 2.5 | SRI | — |
| 17.7 | SRI | — |
| 120.5 | MGO | SERVICE CONNECTION AT 9 O'CLOCK AT MH |
Properties (4)
- additional_info
- SC359161
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-05-04T01:56:48-07:00
