Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 1, 2018, 06:58 AM

  • B 1097_B 1096 _01052018_002346.mp4

Date
04/30/2018
W/O
695771
Weather
Dry
Operator/Surveyor
K. ADAME
Sewer ID
Z01124
PipeID
P13722
Time
11:58 PM
Certificate
U-0817-07009000
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5546
Sewer Name
B JOINT OUTFALL B - UNIT 6G
City
ALHAMBRA, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
04
Purpose
Routine Assessment
Project
WO_695771_TV02344_APR2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
36 in.
Width
36 in.
Upstream MH
B 1097
Downstream MH
B 1096
Dir. of Survey
Downstream
Length Surveyed
864 ft.
Total Length
864 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
3
O&M Quick
4123
O&M Rating
10
Overall Index
3
Overall Quick
—
Overall Rating
13
Pipe schematic from manhole B 1097 to B 1096
MH: B 1097MH: B 1096downstream0 ft. AMH - Upstream Manhole, Survey Begins - B10970 ft. MGO - General Observation - CONNECTION AT MH 3 OCLOCK0 ft. MWL - Water Level, 45 %of cross sectional area0 ft. MWM - Water Mark, 55 %of cross sectional area10.1 ft. MGO - General Observation - MAG COAT10.2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: NO, Start217.2 ft. TBC - Tap Break-In Capped, at 03 o'clock, -, within 8 inches of joint: NO, 15"329.1 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 8"617.6 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 8"642.1 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 6"644.1 ft. TBC - Tap Break-In Capped, at 03 o'clock, -, within 8 inches of joint: NO, 15", 15"733.1 ft. TBC - Tap Break-In Capped, at 03 o'clock, -, within 8 inches of joint: NO, 20"828.5 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 8"861 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: NO, Finish864 ft. AMH - Downstream Manhole, Survey Ends - B1096

Observation photos (2)

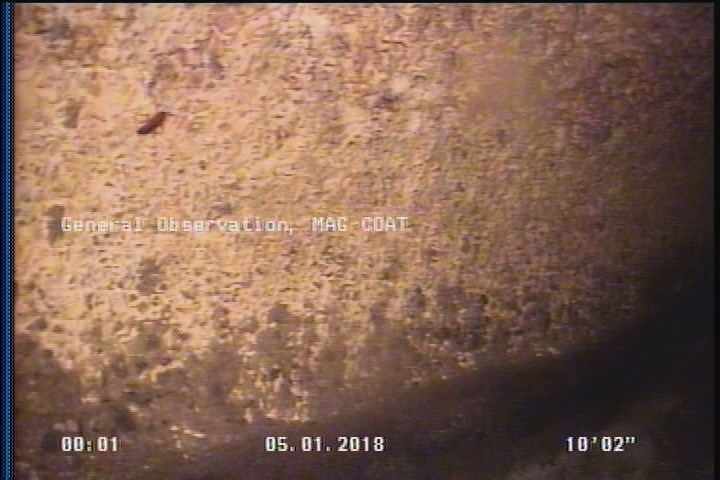

  • General Observation - MAG COAT

    10.1 ft. - General Observation - MAG COAT

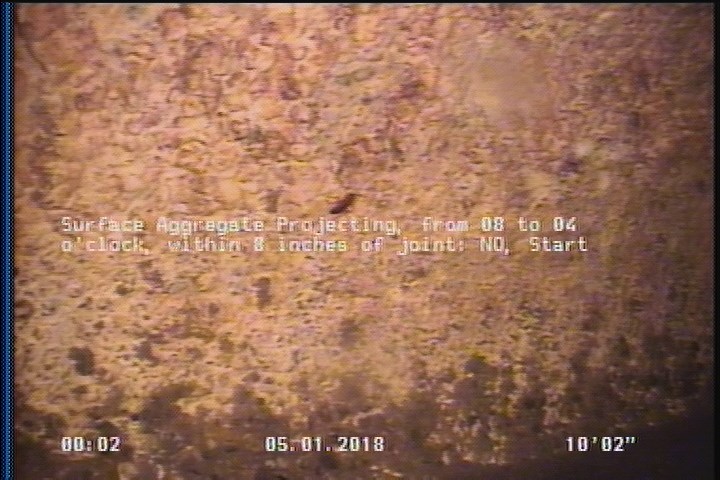

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

    10.2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

All inspections of P13722Work order 695771

Observations (15)

DistanceCodeObservation
864AMHB1096
217.2TBC—
10.2SAP—
0AMHB1097
642.1TFC—
617.6TB—
733.1TBC—
828.5TB—
329.1TB—
644.1TBC—
0MGOCONNECTION AT MH 3 OCLOCK
10.1MGOMAG COAT
861SAP—
0MWL—
0MWM—

Properties (4)

additional_info
SC359154
custom_field_two
3
customer
LACSD
datetime
2018-04-30T23:58:19-07:00
