Wastewater/Activity/PacpInspection/1.0May 18, 2018, 11:26 AM
01 0971A_01 0971_5182018_043059.mp4
- Date
- 05/18/2018
- W/O
- 0705547
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00228
- PipeID
- P01809
- Time
- 4:26 AM
- Certificate
- U-1014-022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0862
- Sewer Name
- 01 WRIGHT ROAD TRUNK
- City
- MAYWOOD
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- 20180518MDM_WRIGHT_ROAD_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- 01 0971A
- Downstream MH
- 01 0971
- Dir. of Survey
- Downstream
- Length Surveyed
- 12.8 ft.
- Total Length
- 12.8 ft.
- Structural Index
- 2
- Structural Quick
- 3122
- Structural Rating
- 7
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (2)

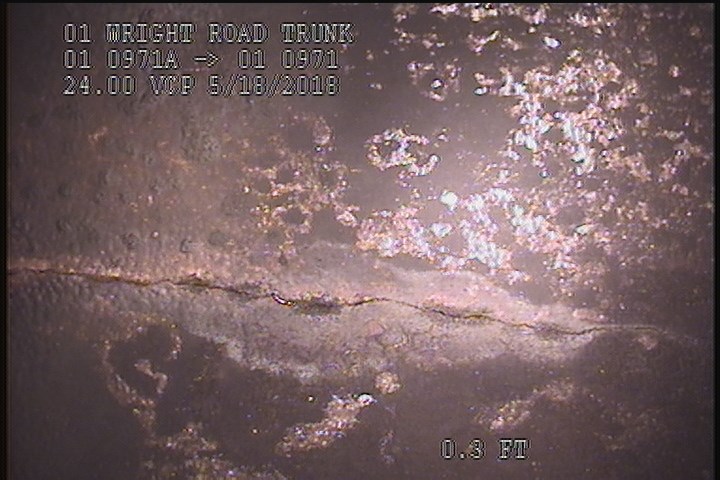

2 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

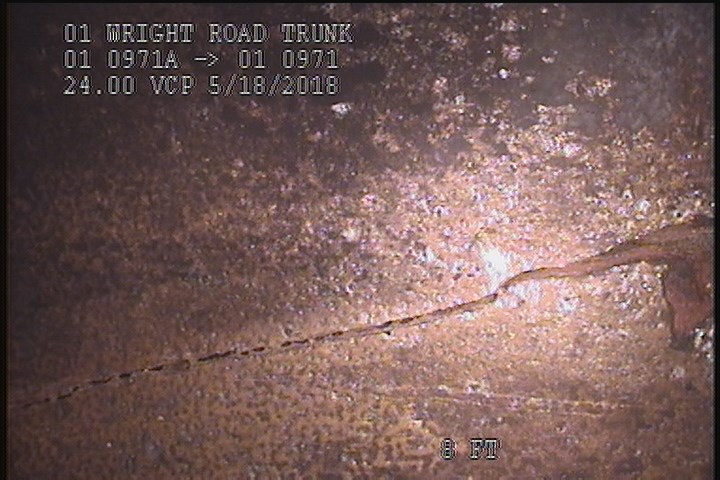

8 ft. - Fracture Circumferential, from 01 to 03 o'clock, within 8 inches of joint: YES, - SLIGHT JOINT TO JOINT
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 12.2 | FL | SLIGHT |
| 0 | MGO | Conn. @ Mh, 9 O' Clock. Active |
| 11.3 | FC | H |
| 0 | MWL | — |
| 8 | FC | SLIGHT JOINT TO JOINT |
| 12.8 | AMH | 4:40AM |
| 0 | MGO | Conn. @ Mh, 3 O' Clock. Active |
| 12.2 | DSZ | SLUDGE ROCKS |
| 2 | FL | SLIGHT |
| 2 | DSZ | SLUDGE ROCKS |
| 12.2 | MGO | Conn. @ Mh, 3 O' Clock. Active |
| 0 | AMH | 4:30AM |
| 0 | MWM | — |
Properties (4)
- custom_field_three
- SLIGHT LONG FRACTURE JOINT TO JOINT LONGER
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-05-18T04:26:08-07:00
