Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 11, 2018, 07:42 AM

  • 01 0986_01 0985A_5112018_011439.mp4

Date
05/11/2018
W/O
0705547
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00228
PipeID
P01825
Time
12:42 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0853
Sewer Name
01 WRIGHT ROAD TRUNK
City
MAYWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
02
Purpose
Routine Assessment
Project
20180511MDM_WRIGHT_ROAD_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Upstream MH
01 0985A
Downstream MH
01 0986
Dir. of Survey
Upstream
Length Surveyed
62 ft.
Total Length
62 ft.
Structural Index
2
Structural Quick
3223
Structural Rating
12
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
12
Pipe schematic from manhole 01 0985A to 01 0986
MH: 01 0985AMH: 01 0986upstream0 ft. AMH - Upstream Manhole, Survey Ends - 1:25AM17.3 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - H26.2 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - H34.9 ft. MGO - General Observation - 21" VCP49.6 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - H52 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - HAIRLINE54.6 ft. FC - Fracture Circumferential, from 08 to 01 o'clock, within 8 inches of joint: YES - HAIRLINE57.9 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - SLIGHT62 ft. MWM - Water Mark, 20 %of cross sectional area62 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active62 ft. AMH - Downstream Manhole, Survey Begins - 1:10AM62 ft. MWL - Water Level, 5 %of cross sectional area

Observation photos (2)

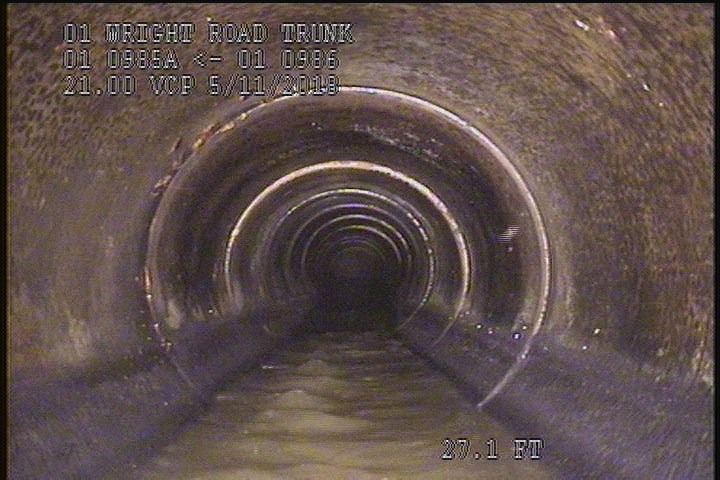

  • General Observation - 21" VCP

    27.1 ft. - General Observation - 21" VCP

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - H

    35.8 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - H

All inspections of P01825Work order 0705547

Observations (12)

DistanceCodeObservation
0MWM—
12.4FCH
62AMH1:25AM
10FLHAIRLINE
27.1MGO21" VCP
0MGOConn. @ Mh, 9 O' Clock. Active
35.8FLH
4.1FCSLIGHT
44.7FLH
0AMH1:10AM
0MWL—
7.4FCHAIRLINE

Properties (3)

custom_field_two
4
customer
LACSD
datetime
2018-05-11T00:42:08-07:00
