Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 14, 2018, 08:24 PM

  • B 1057_B 1056_5142018_133023.mp4

Date
05/14/2018
W/O
PENDING
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00923
PipeID
P22901
Time
1:24 PM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7708
Sewer Name
B JOINT OUTFALL B - UNIT 1C REPLACEMENT
City
PICO RIVERA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
19
Purpose
Routine Assessment
Project
20180510DF_JOINT_OUTFALL_B_UNIT_1C_REPLACEMENT
Material
RGRCP-PTL
Shape
Circular
Height
78 in.
Upstream MH
B 1057
Downstream MH
B 1056
Dir. of Survey
Downstream
Length Surveyed
500 ft.
Total Length
500 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
3
Pipe schematic from manhole B 1057 to B 1056
MH: B 1057MH: B 1056downstream0 ft. MWL - Water Level, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 1:25 PM0 ft. MWM - Water Mark, 35 %of cross sectional area2 ft. LFB - Lining Failure Blistered, from 08 to 04 o'clock, within 8 inches of joint: YES, Start123.7 ft. MGP - General Photograph256.4 ft. MGP - General Photograph302.3 ft. MGP - General Photograph399.3 ft. MGP - General Photograph496.2 ft. MGO - General Observation - Grease Throughout The Reach (5%)496.9 ft. LFB - Lining Failure Blistered, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish500 ft. AMH - Downstream Manhole, Survey Ends - 1:46 PM

Observation photos (6)

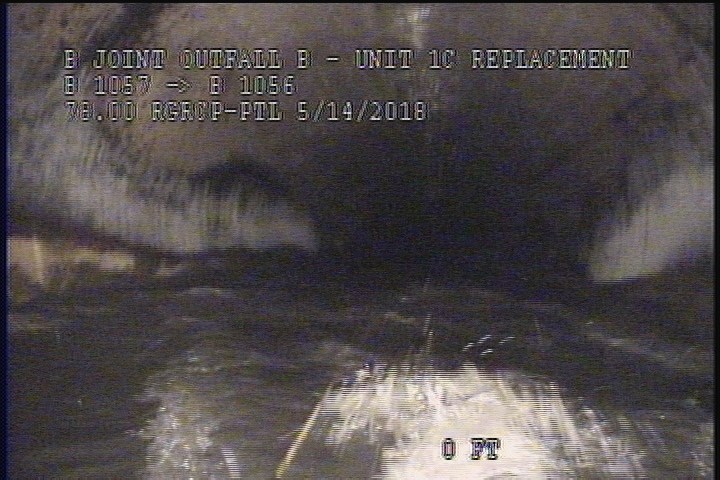

  • Water Level, 30 %of cross sectional area

    0 ft. - Water Level, 30 %of cross sectional area

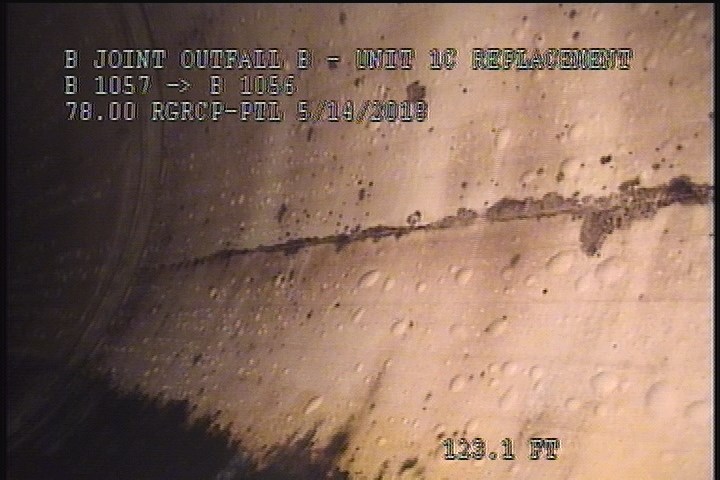

  • Lining Failure Blistered, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Lining Failure Blistered, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

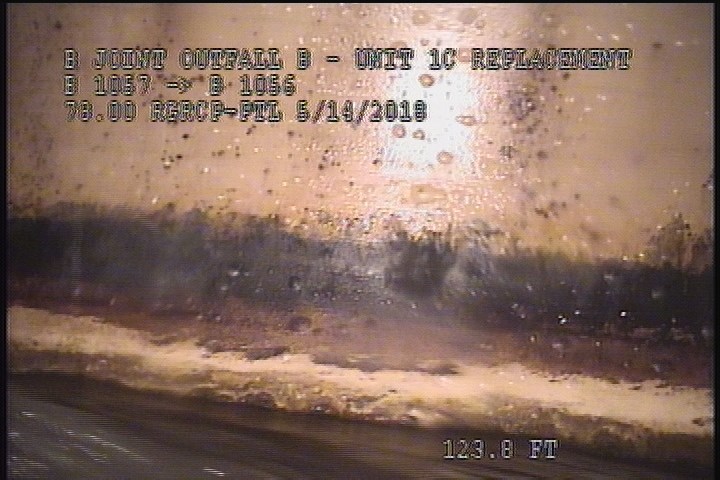

  • General Photograph

    123.7 ft. - General Photograph

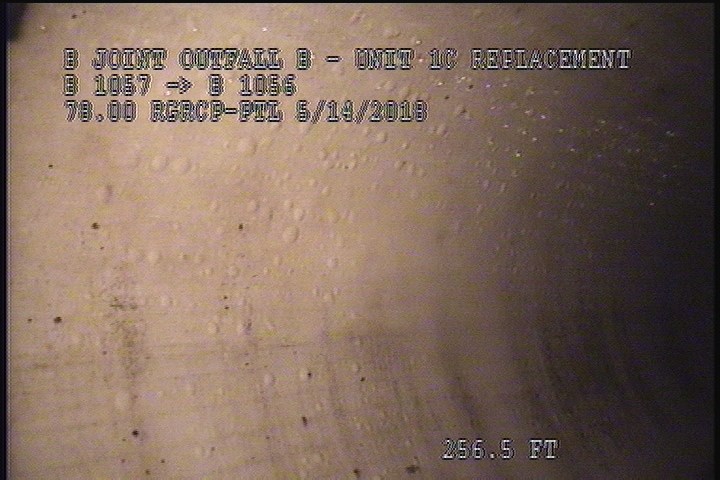

  • General Photograph

    256.4 ft. - General Photograph

  • General Photograph

    302.3 ft. - General Photograph

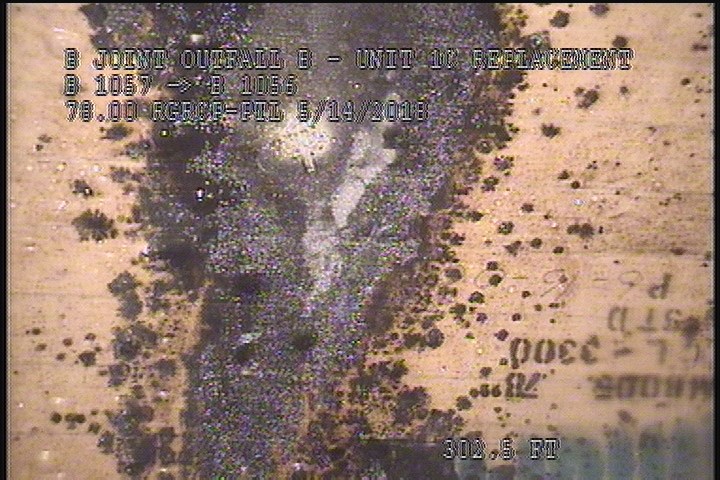

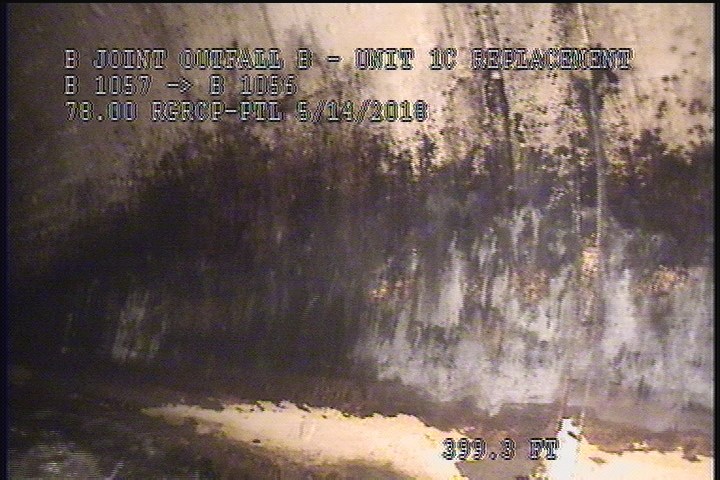

  • General Photograph

    399.3 ft. - General Photograph

All inspections of P22901Work order PENDING

Observations (11)

DistanceCodeObservation
496.2MGOGrease Throughout The Reach (5%)
496.9LFB—
2LFB—
256.4MGP—
0MWL—
123.7MGP—
500AMH1:46 PM
302.3MGP—
0AMH1:25 PM
0MWM—
399.3MGP—

Properties (3)

custom_field_two
4
customer
LACSD
datetime
2018-05-14T13:24:44-07:00
