Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 14, 2018, 03:36 PM

  • B 1069_B 1068_5142018_084226.mp4

Date
05/14/2018
W/O
PENDING
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00923
PipeID
P23038
Time
8:36 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7708
Sewer Name
B JOINT OUTFALL B - UNIT 1C REPLACEMENT
City
PICO RIVERA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
19
Purpose
Routine Assessment
Project
20180510DF_JOINT_OUTFALL_B_UNIT_1C_REPLACEMENT
Material
RGRCP-PTL
Shape
Circular
Height
78 in.
Upstream MH
B 1069
Downstream MH
B 1068
Dir. of Survey
Downstream
Length Surveyed
702 ft.
Total Length
702 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole B 1069 to B 1068
MH: B 1069MH: B 1068downstream0 ft. MWL - Water Level, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 8:38 AM0 ft. MWM - Water Mark, 35 %of cross sectional area72.2 ft. MGP - General Photograph201.9 ft. MGP - General Photograph301.1 ft. MGP - General Photograph301.1 ft. MGP - General Photograph551.2 ft. MGP - General Photograph700 ft. MGO - General Observation - Grease Throughout The Reach (5%)702 ft. AMH - Downstream Manhole, Survey Ends - 9:12 AM

Observation photos (6)

  • Water Level, 30 %of cross sectional area

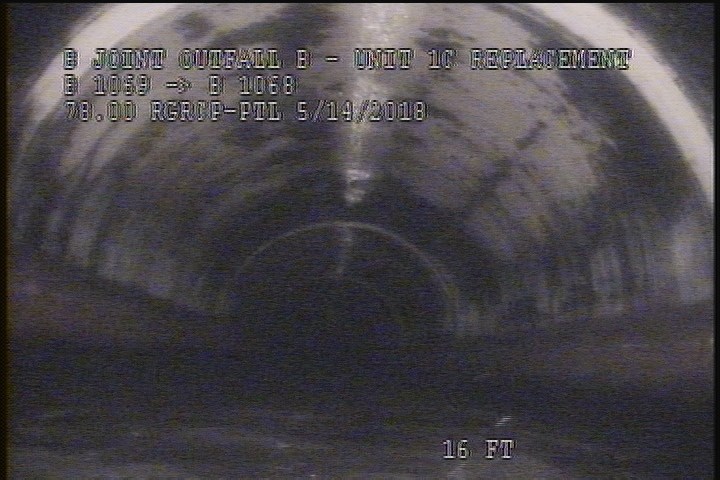

    0 ft. - Water Level, 30 %of cross sectional area

  • General Photograph

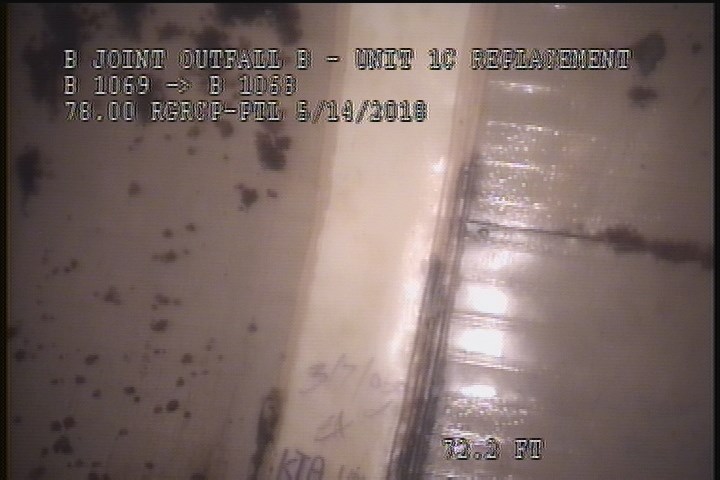

    72.2 ft. - General Photograph

  • General Photograph

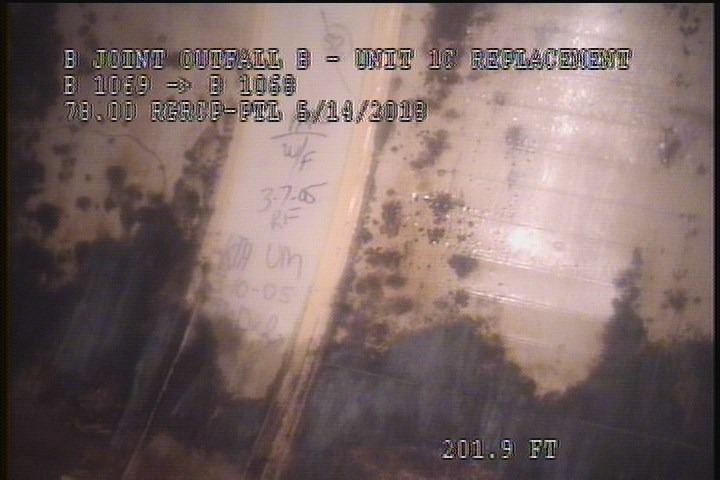

    201.9 ft. - General Photograph

  • General Photograph

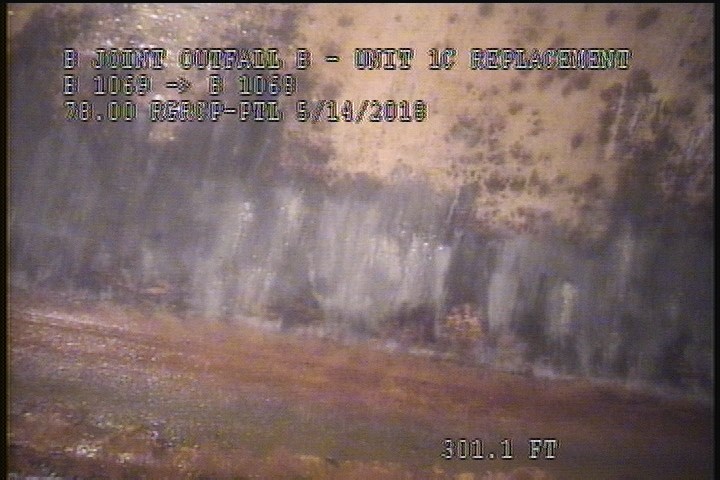

    301.1 ft. - General Photograph

  • General Photograph

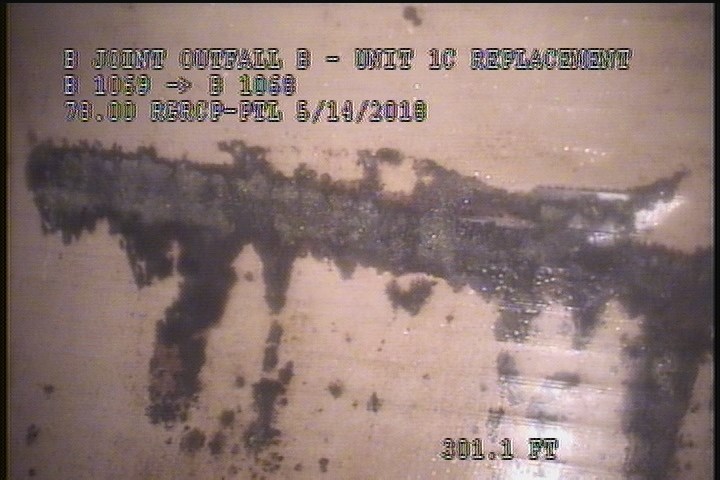

    301.1 ft. - General Photograph

  • General Photograph

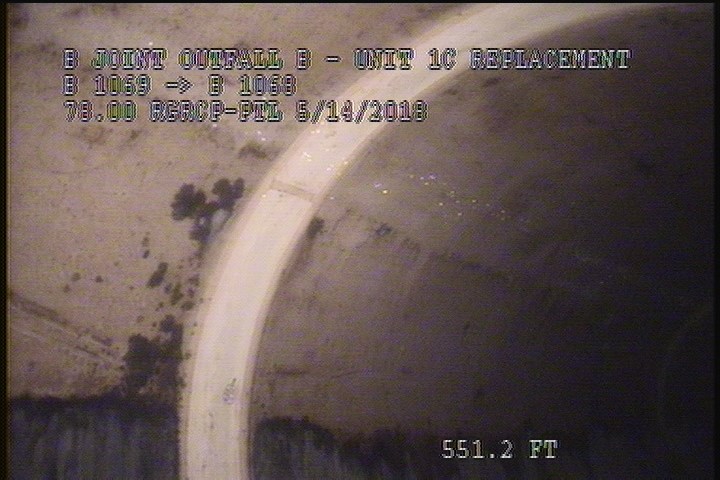

    551.2 ft. - General Photograph

All inspections of P23038Work order PENDING

Observations (10)

DistanceCodeObservation
301.1MGP—
72.2MGP—
700MGOGrease Throughout The Reach (5%)
0MWL—
0AMH8:38 AM
201.9MGP—
0MWM—
551.2MGP—
702AMH9:12 AM
301.1MGP—

Properties (3)

custom_field_two
4
customer
LACSD
datetime
2018-05-14T08:36:58-07:00
