Wastewater/Activity/PacpInspection/1.0May 16, 2018, 04:06 PM
30 0292_30 0350_5162018_094534.mp4
- Date
- 05/16/2018
- W/O
- PENDING
- Weather
- Dry
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z00878
- PipeID
- P17779
- Time
- 9:06 AM
- Certificate
- U-1014-06022541
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0858
- Sewer Name
- 30 SOUTH BAY CITIES MAIN TRUNK
- City
- HERMOSA BEACH
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 30
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- 20180516SHO_SOUTH_BAY_CITIES_MAIN_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- 30 0292
- Downstream MH
- 30 0350
- Dir. of Survey
- Downstream
- Length Surveyed
- 3 ft.
- Total Length
- 3 ft.
- Structural Index
- 5
- Structural Quick
- 5100
- Structural Rating
- 5
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 5
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (2)

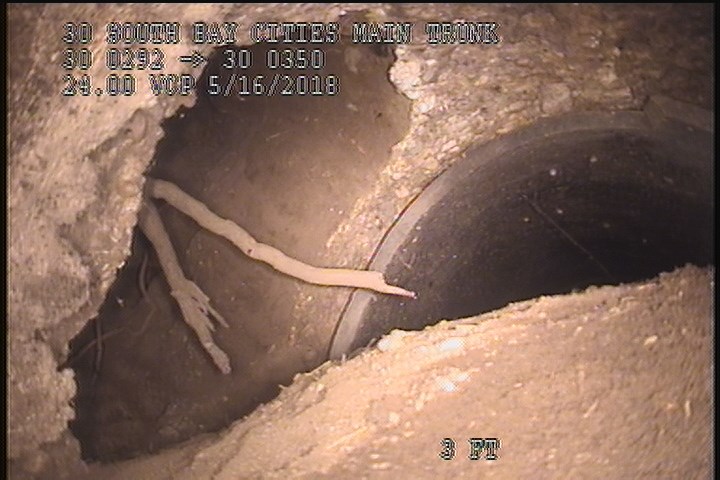

3 ft. - Surface Missing Wall, from 09 to 12 o'clock, within 8 inches of joint: YES - HOLE IN THE PIPE, LOOKS LIKE ROOTS BROKE THROUGH

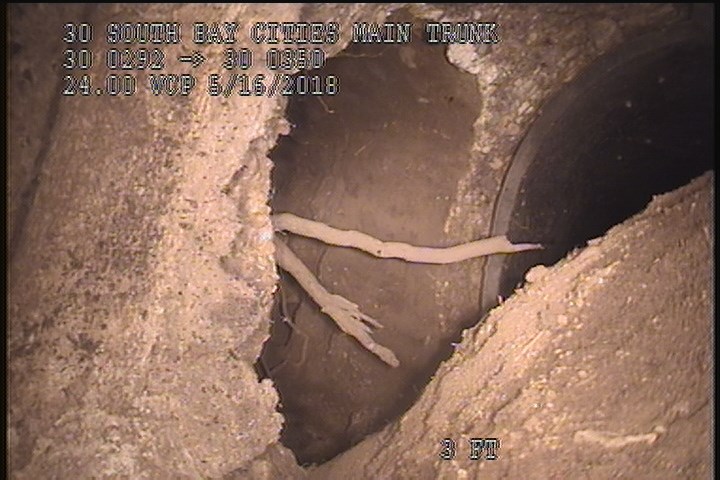

3 ft. - General Observation - HOLE IN THE PIPE
Observations (5)
| Distance | Code | Observation |
|---|---|---|
| 3 | SMW | HOLE IN THE PIPE, LOOKS LIKE ROOTS BROKE THROUGH |
| 0 | AMH | 0940 |
| 3 | MGO | HOLE IN THE PIPE |
| 0 | MWL | DRY LINE, DEBRIS IN THE LINE |
| 2 | MMC | POSSIBLY NRCP |
Properties (6)
- additional_info
- LOOKING FOR ANY DAMAGE THAT CAN CAUSE A SINKHOLE, PROBLEM SHOULD BE 4' D/S
- custom_field_three
- HOLE IN THE PIPE
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2018-05-16T09:06:26-07:00
- lining
- PEP
