Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 24, 2016, 10:40 AM

  • 32 0081A_32 0081_24052016_034056.mp4

Date
05/24/2016
W/O
574354
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00889
PipeID
P19845
Time
3:40 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3508
Sewer Name
32 RYE CANYON TRUNK
City
SANTA CLARITA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 32
Page No.
04
Purpose
Routine Assessment
Project
WO_574354_TV32020_JUNE2016
Sewer Type
GRAVITY
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Upstream MH
32 0081A
Downstream MH
32 0081
Dir. of Survey
Downstream
Length Surveyed
369.6 ft.
Total Length
369.6 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
2
O&M Quick
2N00
O&M Rating
154
Overall Index
2
Overall Quick
—
Overall Rating
157
Pipe schematic from manhole 32 0081A to 32 0081
MH: 32 0081AMH: 32 0081downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - 32 0081A2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start76.2 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"181 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"196.5 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 09 o'clock, , within 8 inches of joint: YES366.1 ft. CM - Crack Multiple, from 10 to 03 o'clock, within 8 inches of joint: YES366.3 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start369.6 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish369.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish369.6 ft. AMH - Downstream Manhole, Survey Ends - 32 0081

Observation photos (5)

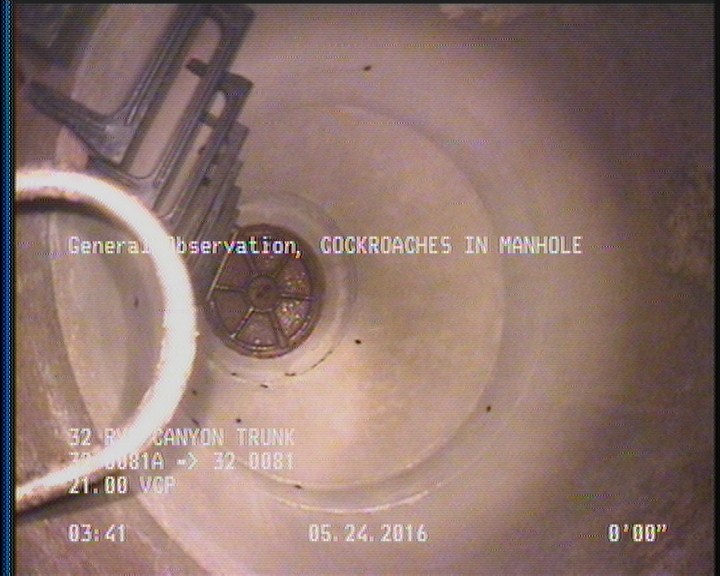

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

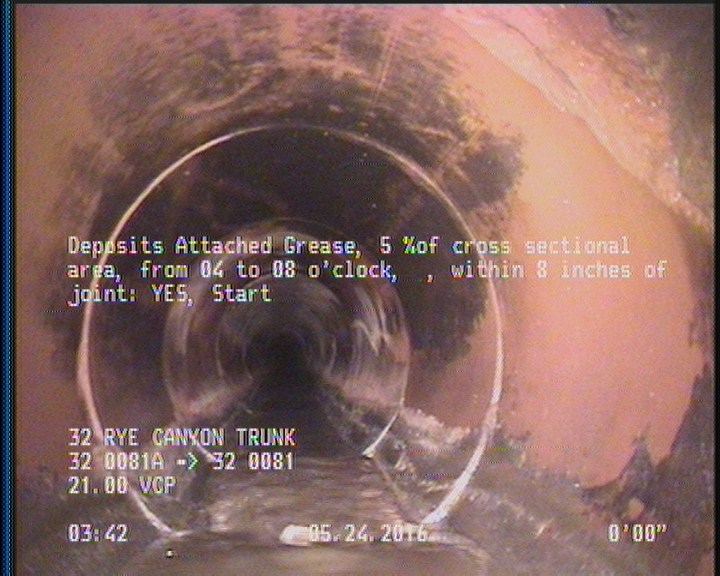

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

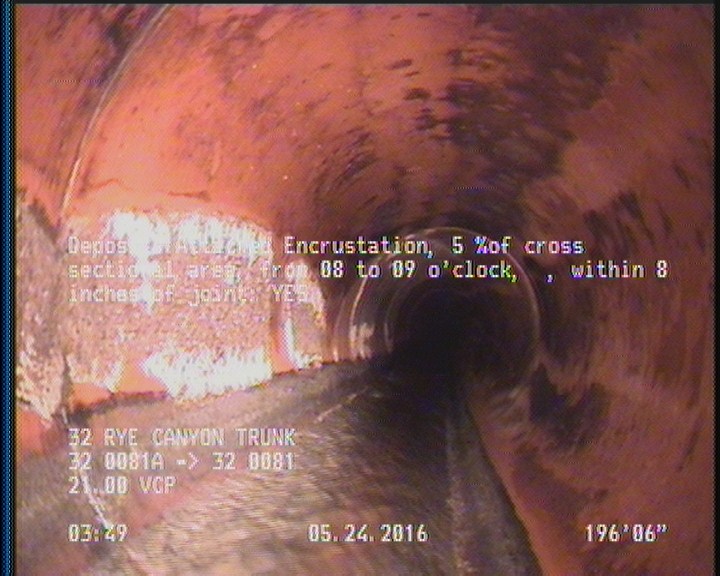

  • Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 09 o'clock, , within 8 inches of joint: YES

    196.5 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 09 o'clock, , within 8 inches of joint: YES

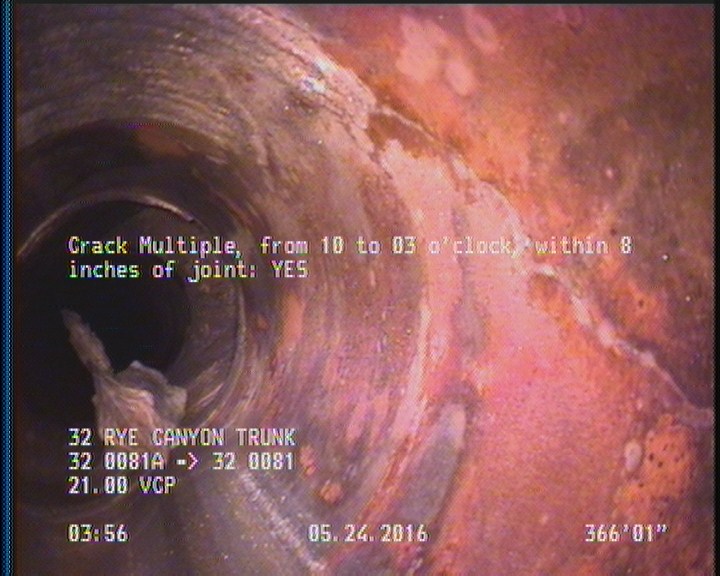

  • Crack Multiple, from 10 to 03 o'clock, within 8 inches of joint: YES

    366.1 ft. - Crack Multiple, from 10 to 03 o'clock, within 8 inches of joint: YES

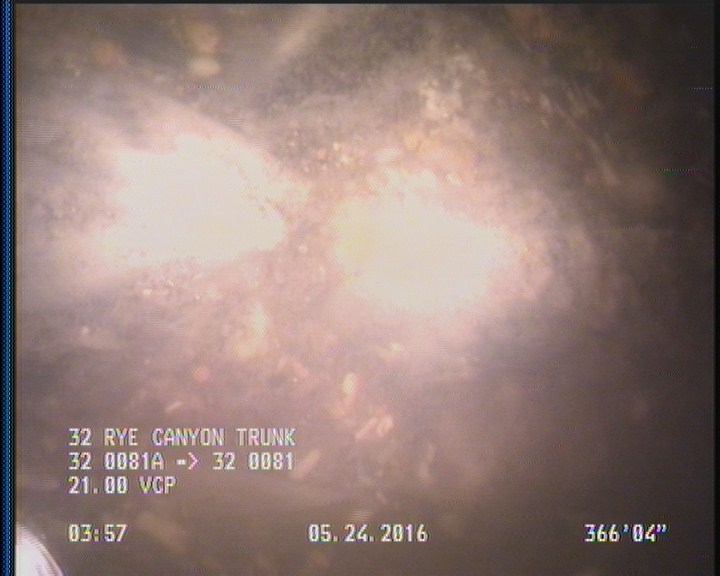

  • Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

    366.3 ft. - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

All inspections of P19845Work order 574354

Observations (14)

DistanceCodeObservation
366.1CM—
181TFA—
0MWM—
369.6DSZ—
366.3DSZ—
76.2TFA—
0MWL—
196.5DAE—
0MGOCOCKROACHES IN MANHOLE
369.6DAGS—
369.6AMH32 0081
0MGOACTIVE CONNECTION AT MH 9 O'CLOCK
0AMH32 0081A
2DAGS—

Properties (4)

additional_info
SC305638
custom_field_two
4
customer
LACSD
datetime
2016-05-24T03:40:18-07:00
