Wastewater/Activity/PacpInspection/1.0Feb 28, 2017, 07:27 AM
F 0176_F 0175 _02272017_235343.mp4
- Date
- 02/27/2017
- W/O
- 619073
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00044
- PipeID
- P10309
- Time
- 11:27 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4254
- Sewer Name
- F JOINT OUTFALL F - UNIT 7B
- City
- NORWALK
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 34
- Purpose
- Routine Assessment
- Project
- WO_619073_TV18094_FEB2017
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 48 in.
- Width
- 48 in.
- Upstream MH
- F 0176
- Downstream MH
- F 0175
- Dir. of Survey
- Downstream
- Length Surveyed
- 569.4 ft.
- Total Length
- 569.4 ft.
- Structural Index
- 3
- Structural Quick
- 3U00
- Structural Rating
- 324
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 324
Observation photos (1)

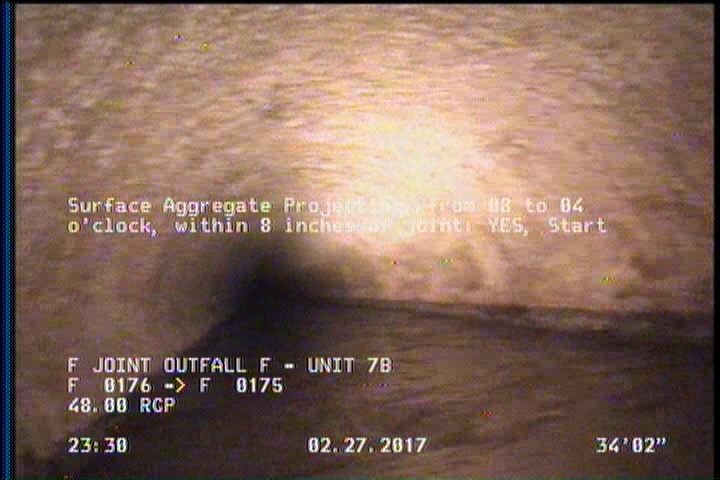

30.3 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 30.3 | SAP | — |
| 204.2 | TBA | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 2 | MGO | MAG COATING 90% |
| 569.4 | SAP | — |
| 569.4 | AMH | F 0175 |
| 0 | AMH | F 0176 |
Properties (4)
- additional_info
- SC306960
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-02-27T23:27:05-08:00
