Wastewater/Activity/PacpInspection/1.0Oct 3, 2016, 10:42 AM
01 0683_01 0682_03102016_034232.mp4
- Date
- 10/03/2016
- W/O
- 591536
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00199
- PipeID
- P01392
- Time
- 3:42 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3597
- Sewer Name
- 01 CALIFORNIA AVENUE EXTENSION TRUNK
- City
- SOUTH GATE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 11
- Purpose
- Routine Assessment
- Project
- WO_591536_TV01117_SEP2016
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 33 in.
- Width
- 33 in.
- Upstream MH
- 01 0683
- Downstream MH
- 01 0682
- Dir. of Survey
- Downstream
- Length Surveyed
- 405.9 ft.
- Total Length
- 405.9 ft.
- Structural Index
- 4
- Structural Quick
- 5232
- Structural Rating
- 16
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 16
Observation photos (3)

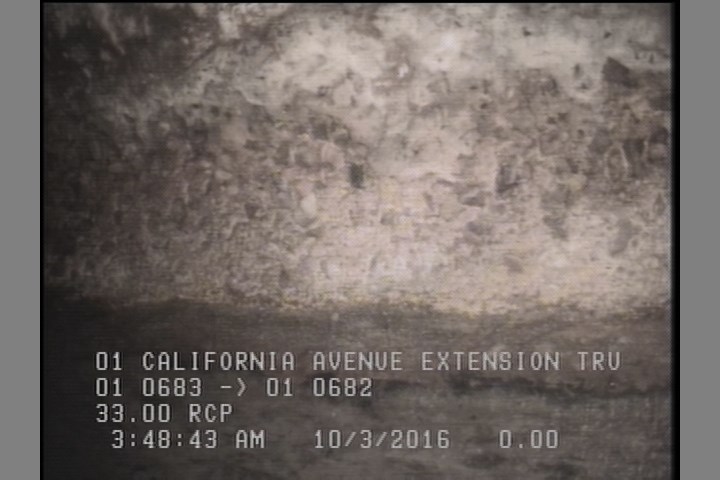

6.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

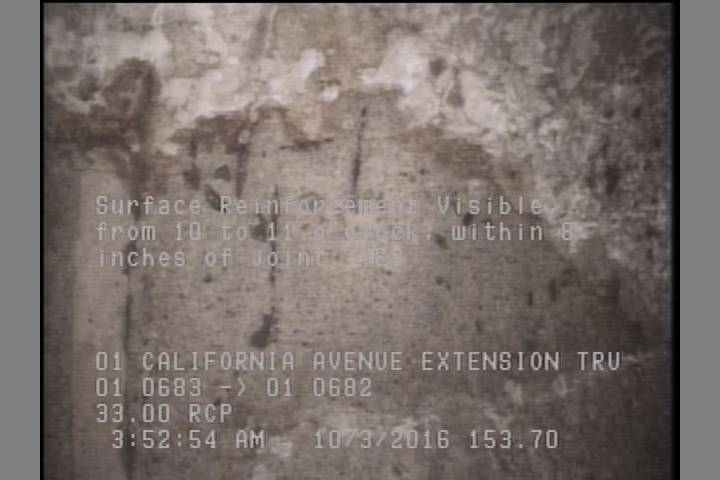

153.7 ft. - Surface Reinforcement Visible, from 10 to 11 o'clock, within 8 inches of joint: YES

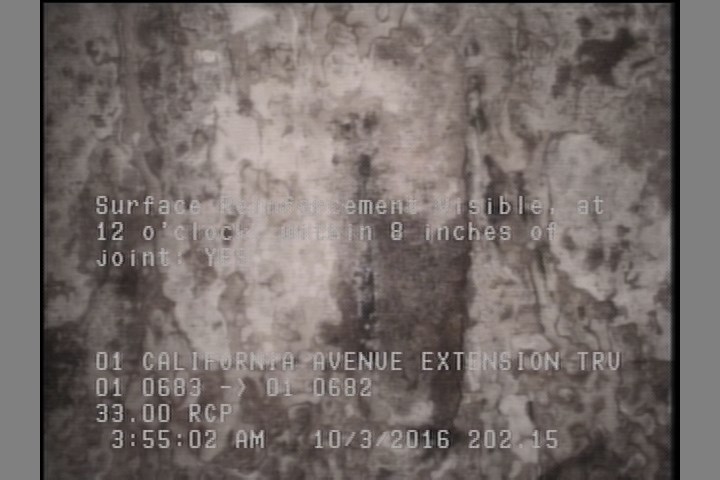

202.1 ft. - Surface Reinforcement Visible, at 12 o'clock, within 8 inches of joint: YES
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 01 0683 |
| 0 | MWM | — |
| 403.8 | SAP | — |
| 202.1 | SRV | — |
| 2 | MGO | MAG COAT 70% |
| 0 | MWL | — |
| 6.1 | SAP | — |
| 405.9 | AMH | 01 0682 |
| 153.7 | SRV | — |
Properties (4)
- additional_info
- SC306192
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-10-03T03:42:00-07:00
