Wastewater/Activity/PacpInspection/1.0May 8, 2018, 04:59 PM
Section#2_J 0220_J 0218__582018__I003.mp4
- Date
- 05/08/2018
- W/O
- 0688897
- Weather
- Dry
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z00057
- PipeID
- P11464
- Time
- 9:59 AM
- Certificate
- U-1014-06022541
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- I003
- Sewer Name
- J JOINT OUTFALL J - UNIT 1E
- City
- SAN PEDRO
- Loc. details
- Woods
- Location Code
- E
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 48
- Purpose
- Capital Improvement Program Assesment
- Project
- 20180508SHO_JOINT_OUTFALL_1E
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Upstream MH
- J 0218
- Downstream MH
- J 0220
- Dir. of Survey
- Upstream
- Length Surveyed
- 2 ft.
- Total Length
- 2 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (2)

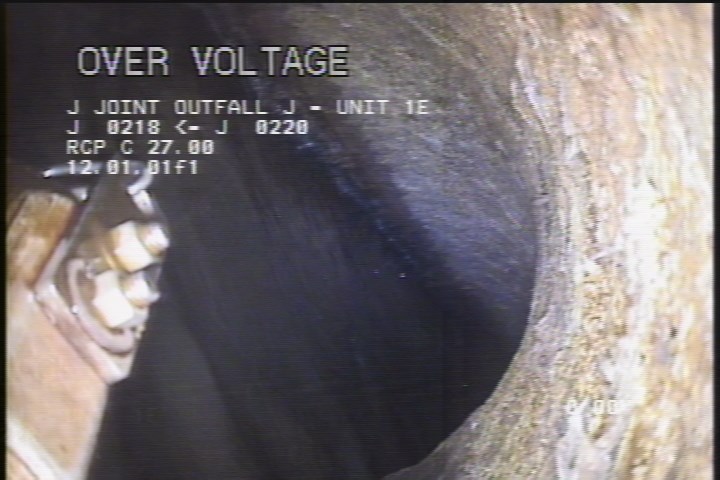

2 ft. - Downstream Manhole, Survey Ends - ZOOMED U/S TO COMPLETE INSPECTION

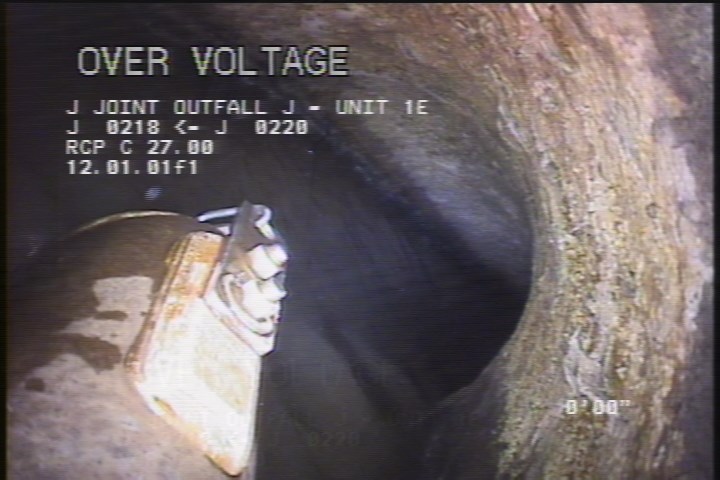

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES
Observations (5)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 1040 |
| 2 | AMH | ZOOMED U/S TO COMPLETE INSPECTION |
| 2 | SSS | — |
| 0 | MWM | — |
| 0 | MWL | — |
Properties (5)
- additional_info
- RFIR, LOOKING U/S TO COMPLETE THE INSPECTION
- custom_field_three
- RFIR, SPALLING
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-05-08T09:59:29-07:00
