Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 9, 2018, 09:02 AM

  • Section#8_18 0853A_18 0853__592018__I0004.mp4

Date
05/09/2018
W/O
0701634
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00709
PipeID
P14709
Time
2:02 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
I0004
Sewer Name
18 SO WHITTIER OUTFALL RLF TR, SECTS 1,2A,2B,2C,&3
City
NORWALK
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
34
Purpose
Routine Assessment
Project
20180504MDM_SO_WHITTIER_OUTFALL_RLF_TR_SECTS_1_2A_2B_2C_3
Material
Reinforced Concrete Pipe
Shape
Circular
Height
51 in.
Upstream MH
18 0853A
Downstream MH
18 0853
Dir. of Survey
Downstream
Length Surveyed
643.6 ft.
Total Length
643.6 ft.
Structural Index
4
Structural Quick
5s4r
Structural Rating
2781
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
4
Overall Quick
—
Overall Rating
2785
Pipe schematic from manhole 18 0853A to 18 0853
MH: 18 0853AMH: 18 0853downstream0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 2:10AM0 ft. MWL - Water Level, 40 %of cross sectional area2 ft. SAM - Surface Aggregate Missing, from 09 to 11 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG2 ft. SRV - Surface Reinforcement Visible, from 09 to 10 o'clock, within 8 inches of joint: YES, Start - CIRCUM REBAR2 ft. SAV - Surface Aggregate Visible, from 11 to 01 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG SPORATIC2 ft. SRV - Surface Reinforcement Visible, from 02 to 03 o'clock, within 8 inches of joint: YES, Start - CIRCUM REBAR2 ft. SSS - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES - BLISTERING PEELING CONCRETE2 ft. SAM - Surface Aggregate Missing, from 01 to 03 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG11.6 ft. SRV - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: NO - CIRCUM REBAR20.3 ft. SRV - Surface Reinforcement Visible, from 02 to 03 o'clock, within 8 inches of joint: NO - CIRCUM REBAR24.2 ft. SRV - Surface Reinforcement Visible, from 09 to 11 o'clock, within 8 inches of joint: NO - CIRCUM REBAR170.2 ft. SSS - Surface Spalling, from 11 to 01 o'clock, within 8 inches of joint: NO - PEELING CONCRETE457.5 ft. SSS - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: NO, Start - PEELING CONCRETE643.2 ft. SRV - Surface Reinforcement Visible, from 09 to 10 o'clock, within 8 inches of joint: YES, Finish - CIRCUM REBAR643.2 ft. SAV - Surface Aggregate Visible, from 11 to 01 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG643.2 ft. SAM - Surface Aggregate Missing, from 01 to 03 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG643.2 ft. SRV - Surface Reinforcement Visible, from 02 to 03 o'clock, within 8 inches of joint: YES, Finish - CIRCUM REBAR643.2 ft. SSS - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: NO, Finish - PEELING CONCRETE643.2 ft. SAM - Surface Aggregate Missing, from 09 to 11 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG643.6 ft. AMH - Downstream Manhole, Survey Ends - 3:35AM

Observation photos (7)

  • Surface Aggregate Missing, from 09 to 11 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

    2 ft. - Surface Aggregate Missing, from 09 to 11 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

  • Surface Reinforcement Visible, from 09 to 10 o'clock, within 8 inches of joint: YES, Start - CIRCUM REBAR

    2 ft. - Surface Reinforcement Visible, from 09 to 10 o'clock, within 8 inches of joint: YES, Start - CIRCUM REBAR

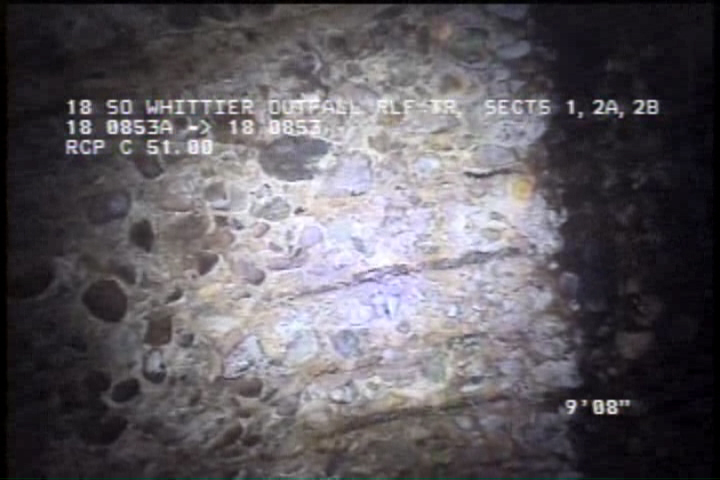

  • Surface Reinforcement Visible, from 02 to 03 o'clock, within 8 inches of joint: YES, Start - CIRCUM REBAR

    2 ft. - Surface Reinforcement Visible, from 02 to 03 o'clock, within 8 inches of joint: YES, Start - CIRCUM REBAR

  • Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: NO - CIRCUM REBAR

    11.6 ft. - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: NO - CIRCUM REBAR

  • Surface Reinforcement Visible, from 02 to 03 o'clock, within 8 inches of joint: NO - CIRCUM REBAR

    20.3 ft. - Surface Reinforcement Visible, from 02 to 03 o'clock, within 8 inches of joint: NO - CIRCUM REBAR

  • Surface Reinforcement Visible, from 09 to 11 o'clock, within 8 inches of joint: NO - CIRCUM REBAR

    24.2 ft. - Surface Reinforcement Visible, from 09 to 11 o'clock, within 8 inches of joint: NO - CIRCUM REBAR

  • Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: NO, Start - PEELING CONCRETE

    457.5 ft. - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: NO, Start - PEELING CONCRETE

All inspections of P14709Work order 0701634

Observations (21)

DistanceCodeObservation
643.2SRVCIRCUM REBAR
0MWM—
643.6AMH3:35AM
2SAMSEVERE AGG
0AMH2:10AM
0MWL—
2SRVCIRCUM REBAR
2SAVSEVERE AGG SPORATIC
170.2SSSPEELING CONCRETE
643.2SAVSEVERE AGG
457.5SSSPEELING CONCRETE
20.3SRVCIRCUM REBAR
643.2SAMSEVERE AGG
2SRVCIRCUM REBAR
643.2SRVCIRCUM REBAR
643.2SSSPEELING CONCRETE
11.6SRVCIRCUM REBAR
643.2SAMSEVERE AGG
24.2SRVCIRCUM REBAR
2SSSBLISTERING PEELING CONCRETE
2SAMSEVERE AGG

Properties (4)

custom_field_three
CIRCUM REBAR VISIBLE
custom_field_two
2
customer
LACSD
datetime
2018-05-09T02:02:17-07:00
