Wastewater/Activity/PacpInspection/1.0May 4, 2018, 03:29 PM
E 0105_E 0069_542018_084111.mp4
- Date
- 05/04/2018
- W/O
- 0701683
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00030
- PipeID
- P11302
- Time
- 8:29 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7702
- Sewer Name
- E JOINT OUTFALL E - UNIT 4
- City
- LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 13
- Purpose
- Routine Assessment
- Project
- 20180504DF_JOINT_OUTFALL_E_UNIT_4
- Material
- NRCP
- Shape
- Circular
- Height
- 21 in.
- Upstream MH
- E 0105
- Downstream MH
- E 0069
- Dir. of Survey
- Downstream
- Length Surveyed
- 2 ft.
- Total Length
- 2 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (6)

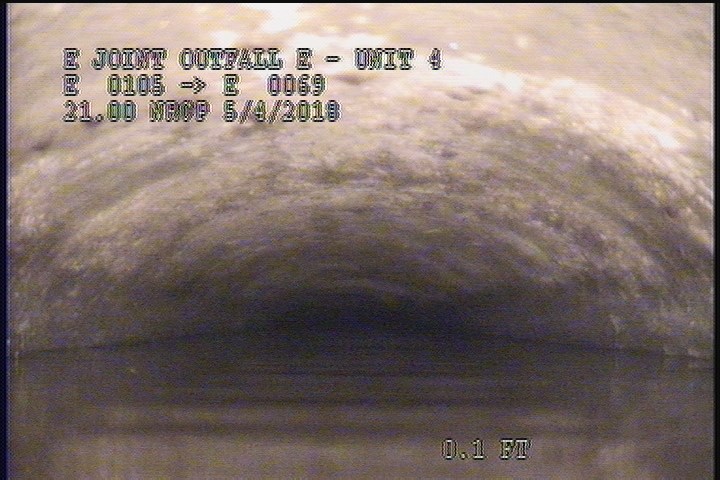

0 ft. - General Photograph

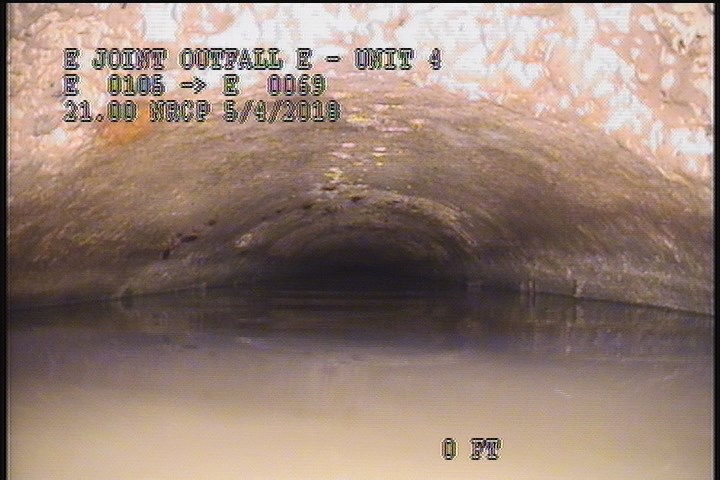

0.1 ft. - Water Mark, 70 %of cross sectional area

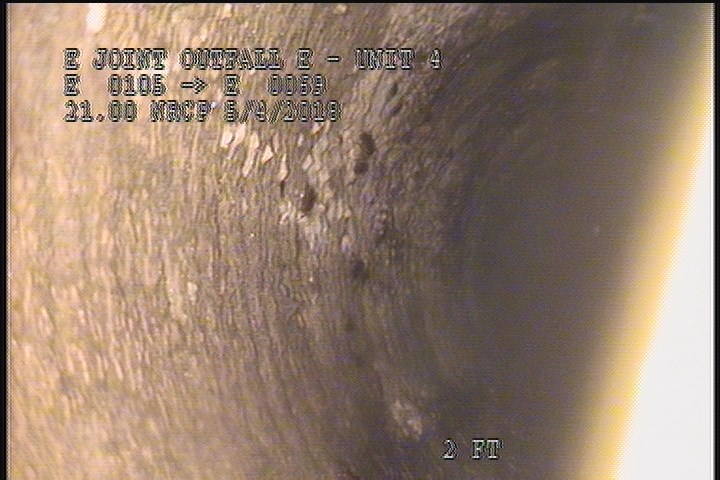

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES

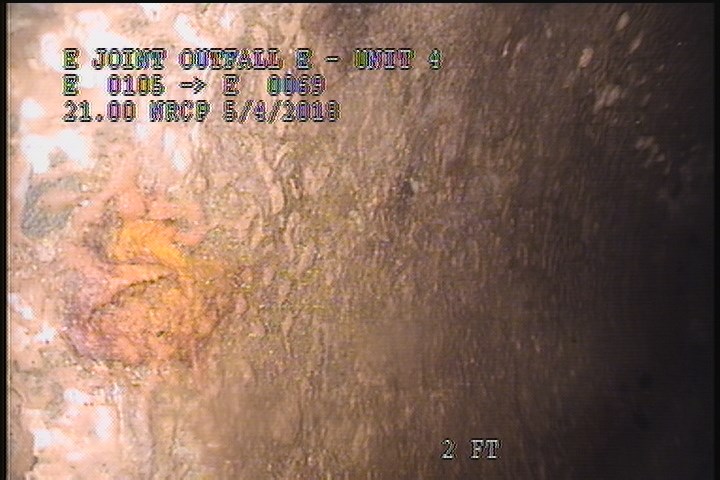

2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES

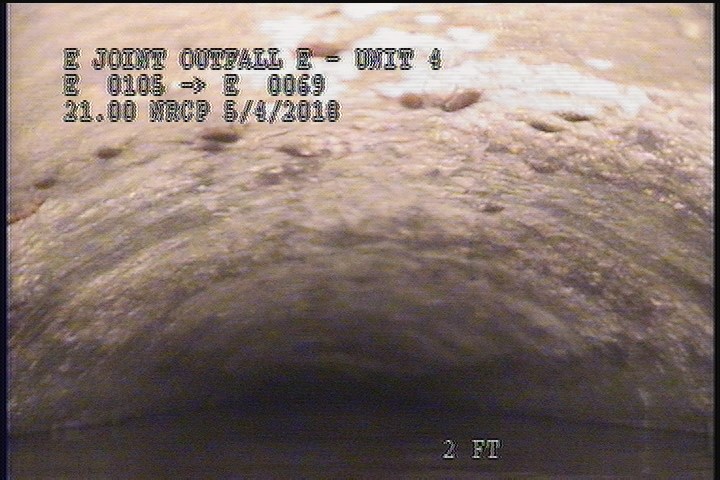

2 ft. - General Photograph

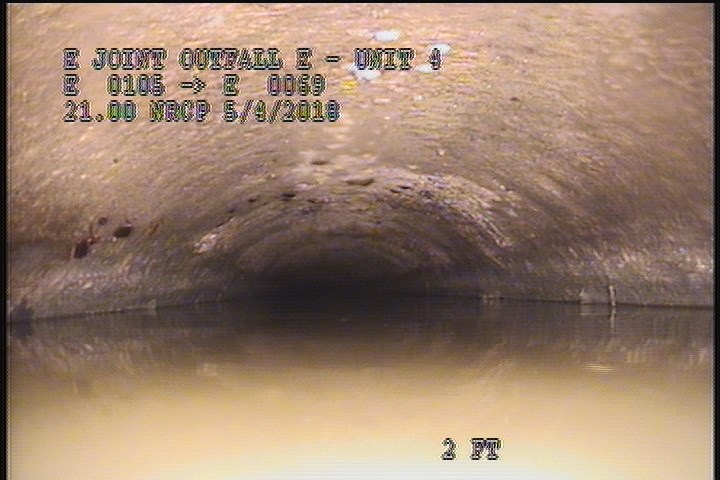

2 ft. - General Photograph
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 2 | SSS | — |
| 2 | AMH | 8:51 AM |
| 0 | AMH | 8:37 AM |
| 0.1 | MWM | — |
| 2 | SAV | — |
| 2 | MGP | — |
| 0 | MGP | — |
| 2 | MGP | — |
| 0.1 | MWL | — |
Properties (3)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-05-04T08:29:09-07:00
