Wastewater/Activity/PacpInspection/1.0Jul 18, 2016, 11:15 AM
16 0712_16 0711 _18072016_041555.mp4
- Date
- 07/18/2016
- W/O
- 582916
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z01110
- PipeID
- P22797
- Time
- 4:15 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3615
- Sewer Name
- 16 ALHAMBRA ROAD RELIEF TRUNK, SECTION 2
- City
- ALHAMBRA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 19
- Purpose
- Routine Assessment
- Project
- WO_582916_TV16068_JULY2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 16 0712
- Downstream MH
- 16 0711
- Dir. of Survey
- Downstream
- Length Surveyed
- 254.7 ft.
- Total Length
- 254.7 ft.
- Structural Index
- 3
- Structural Quick
- 3800
- Structural Rating
- 24
- O&M Index
- 2
- O&M Quick
- 312I
- O&M Rating
- 105
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 129
Observation photos (3)

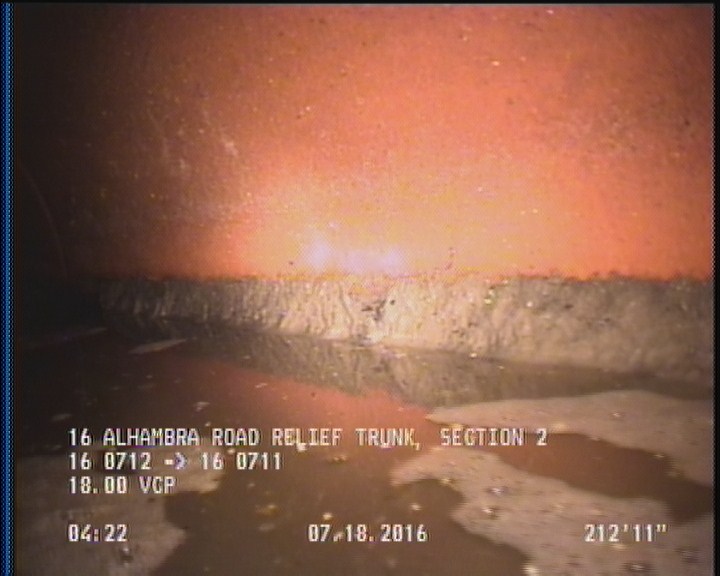

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

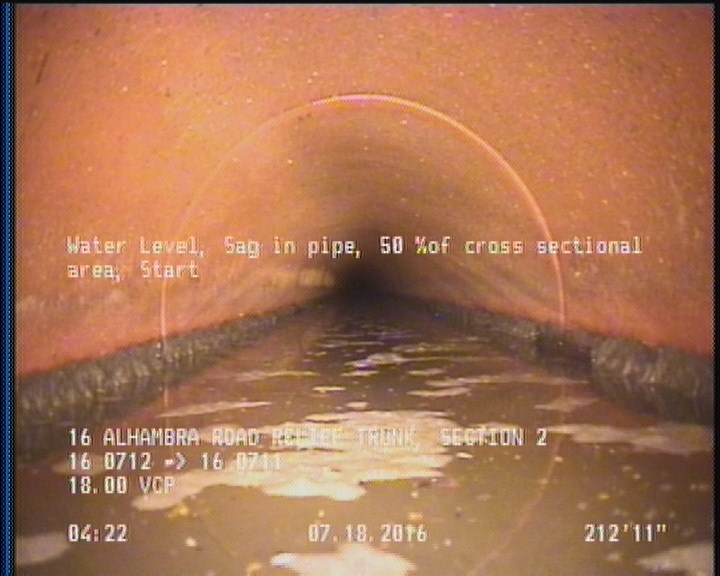

212.9 ft. - Water Level, Sag in pipe, 50 %of cross sectional area, Start

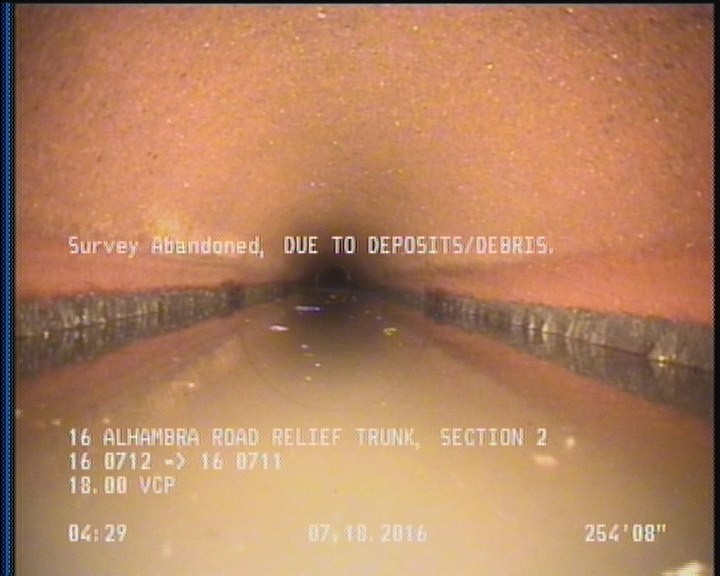

254.7 ft. - Survey Abandoned - DUE TO DEPOSITS/DEBRIS.
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 2 | DAGS | — |
| 254.5 | DSZ | — |
| 0 | MWM | — |
| 254.7 | DAGS | — |
| 212.9 | MWLS | — |
| 0 | MWL | — |
| 254.7 | MWLS | — |
| 0 | AMH | 16 0712 |
| 0 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 254.7 | MSA | DUE TO DEPOSITS/DEBRIS. |
Properties (5)
- additional_info
- SC305794
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2016-07-18T04:15:28-07:00
- year_laid
- 36133
