Wastewater/Activity/PacpInspection/1.0Apr 6, 2016, 10:43 AM
32 1318_32 1317_20160406_035434.mp4
- Date
- 04/06/2016
- W/O
- 563391
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00843
- PipeID
- P19697
- Time
- 3:43 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3309
- Sewer Name
- 32 SOLEDAD CANYON RELIEF TRUNK
- City
- SANTA CLARITA
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 06
- Purpose
- Routine Assessment
- Project
- WO_563391_TV32040_APRIL2016
- Sewer Type
- GRAVITY
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- 32 1317
- Downstream MH
- 32 1318
- Dir. of Survey
- Upstream
- Length Surveyed
- 122.7 ft.
- Total Length
- 122.7 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2D00
- O&M Rating
- 48
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 48
Observation photos (1)

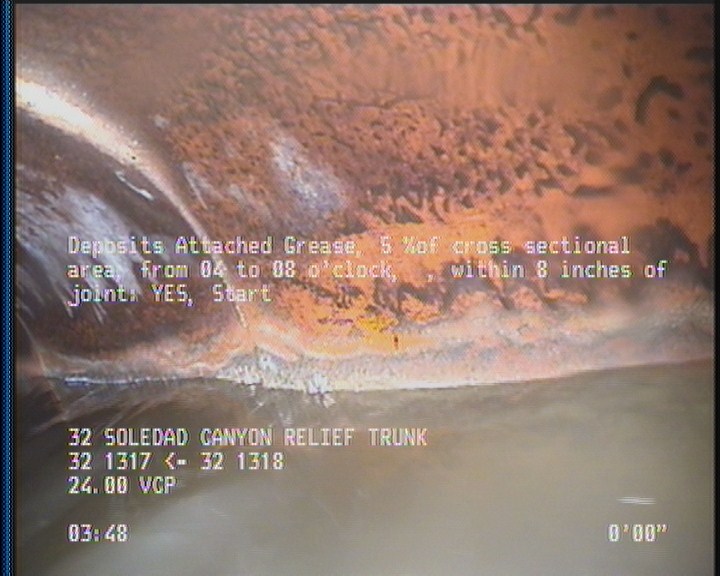

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 122.7 | DAGS | — |
| 122.7 | AMH | 32 1318 |
| 2 | DAGS | — |
| 0 | AMH | 32 1317 |
| 0 | MWM | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 0 | MWL | — |
Properties (5)
- additional_info
- SC305436
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-04-06T03:43:56-07:00
- year_laid
- 19891027
