Wastewater/Activity/PacpInspection/1.0Mar 22, 2017, 05:42 AM
18 0180_18 0179 _20170321_231104.mp4
- Date
- 03/21/2017
- W/O
- 624437
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00695
- PipeID
- P14005
- Time
- 10:42 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4415
- Sewer Name
- 18 ORR AND DAY ROAD TRUNK
- City
- SANTA FE SPRINGS
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 19
- Purpose
- Routine Assessment
- Project
- WO_624437_TV18043_MAR2017
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- 18 0180
- Downstream MH
- 18 0179
- Dir. of Survey
- Downstream
- Length Surveyed
- 538.5 ft.
- Total Length
- 538.5 ft.
- Structural Index
- 2
- Structural Quick
- 2N00
- Structural Rating
- 152
- O&M Index
- 2
- O&M Quick
- 412T
- O&M Rating
- 218
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 370
Observation photos (3)

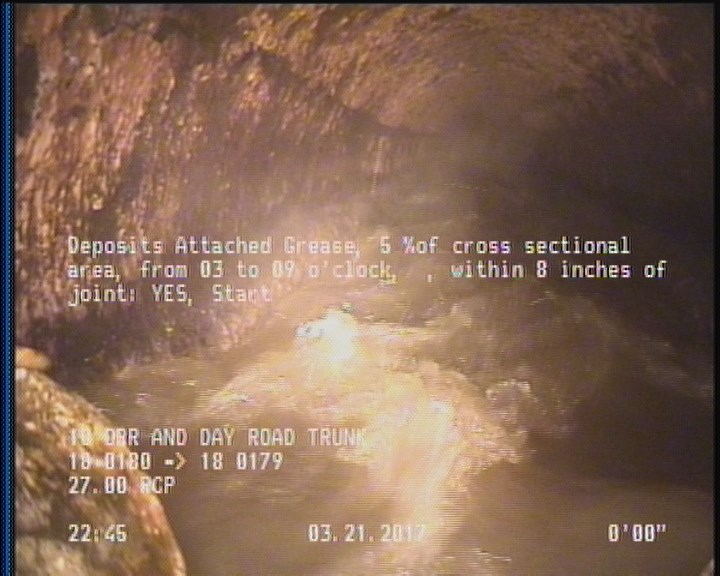

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

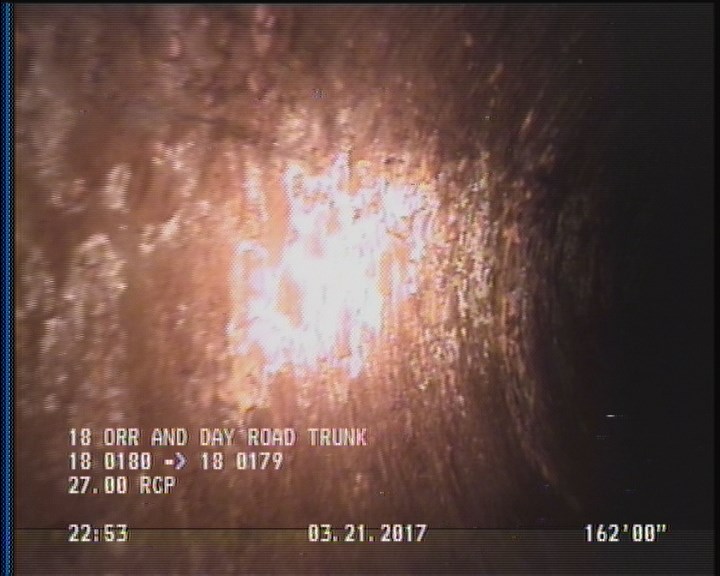

157.3 ft. - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

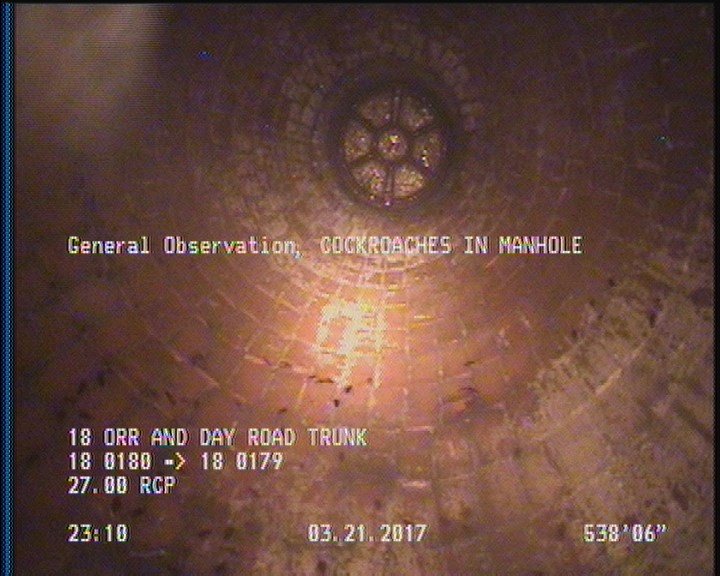

538.5 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 537.3 | SSS | — |
| 0 | AMH | 18 0180 |
| 0 | MWL | — |
| 537.4 | DAGS | — |
| 538.5 | MGO | COCKROACHES IN MANHOLE |
| 538.5 | AMH | 18 0179 |
| 0 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 2 | DAGS | — |
| 157.3 | SSS | — |
| 537.4 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
Properties (4)
- additional_info
- SC306980
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-03-21T22:42:08-07:00
