Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 22, 2017, 10:06 AM

  • 02 0317_02 0316_6222017_044928.mp4

Date
06/22/2017
W/O
0647471
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00251
PipeID
P02631
Time
3:06 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0570
Sewer Name
02 DOWNEY-BELLFLOWER TRUNK
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
19A
Purpose
Routine Assessment
Project
201706021MDM_DOWNEY_BELLFLOWER_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Upstream MH
02 0316
Downstream MH
02 0317
Dir. of Survey
Upstream
Length Surveyed
170.8 ft.
Total Length
170.8 ft.
Structural Index
2
Structural Quick
4132
Structural Rating
74
O&M Index
4
O&M Quick
4200
O&M Rating
8
Overall Index
2
Overall Quick
—
Overall Rating
82
Pipe schematic from manhole 02 0316 to 02 0317
MH: 02 0316MH: 02 0317upstream0 ft. AMH - Upstream Manhole, Survey Ends(COMPLETED BY REVERSE INSPECTION) - 5:20AM( COMPLETED BY REVERSE INSPECTION0.3 ft. MGP - General Photograph0.3 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 70 % HAIRLINES AT JOINTS0.8 ft. OBP - Obstacles External Pipe or Cable, 30 %of cross sectional area, from 03 to 07 o'clock - STEEL CABLE0.8 ft. OBP - Obstacles External Pipe or Cable, 30 %of cross sectional area, from 03 to 07 o'clock - STEEL CABLE22.9 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - HAIRLINES AT JOINTS22.9 ft. TF - Tap Factory Made, at 01 o'clock, -, within 8 inches of joint: YES, 6" - Open49.5 ft. FC - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES - H53.5 ft. FC - Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES - SL53.5 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - SL57.4 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - H57.4 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - H61.4 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - H61.4 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - H65.6 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SL69.5 ft. FC - Fracture Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES - SL74.2 ft. FC - Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES - H74.2 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - H77.3 ft. FC - Fracture Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES - H81.7 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - H84.8 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - H84.8 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - H101.1 ft. FC - Fracture Circumferential, from 10 to 01 o'clock, within 8 inches of joint: YES - SL105.2 ft. FC - Fracture Circumferential, from 09 to 01 o'clock, within 8 inches of joint: YES - H109.4 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - H113.8 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - H113.8 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - SL117.8 ft. FC - Fracture Circumferential, from 10 to 01 o'clock, within 8 inches of joint: YES - H123.3 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Active128.8 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SL133.7 ft. FC - Fracture Circumferential, from 10 to 03 o'clock, within 8 inches of joint: YES - H141.1 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - H145.2 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SL145.2 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - H149 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - SLIGHT153 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - H153 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - H157 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - SL157 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - H161.2 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - HAIRLINE166 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SLIGHT166 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SLIGHT170.8 ft. AMH - Downstream Manhole, Survey Begins - 4:45AM170.8 ft. MWL - Water Level, 10 %of cross sectional area170.8 ft. MWM - Water Mark, 30 %of cross sectional area

Observation photos (4)

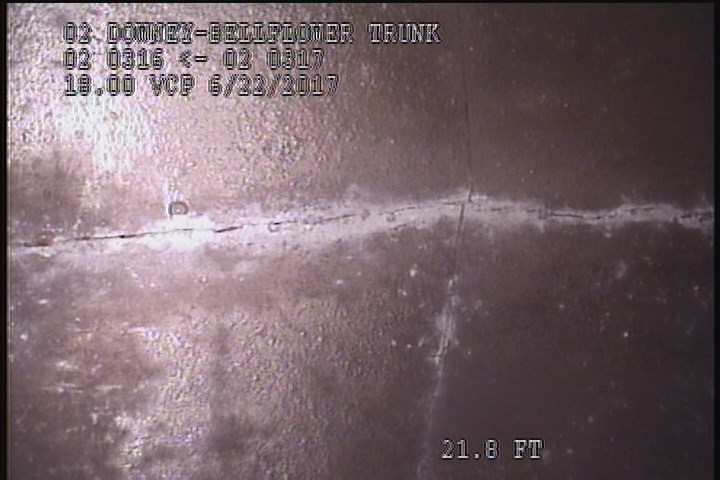

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - SLIGHT

    21.8 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - SLIGHT

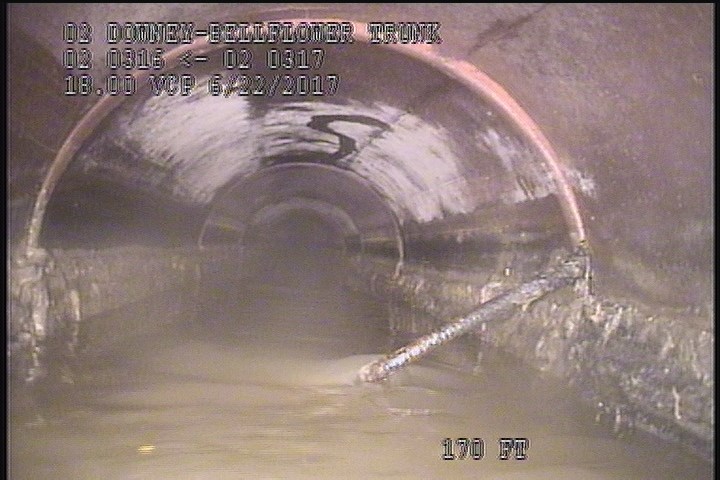

  • Obstacles External Pipe or Cable, 30 %of cross sectional area, from 03 to 07 o'clock - STEEL CABLE

    170 ft. - Obstacles External Pipe or Cable, 30 %of cross sectional area, from 03 to 07 o'clock - STEEL CABLE

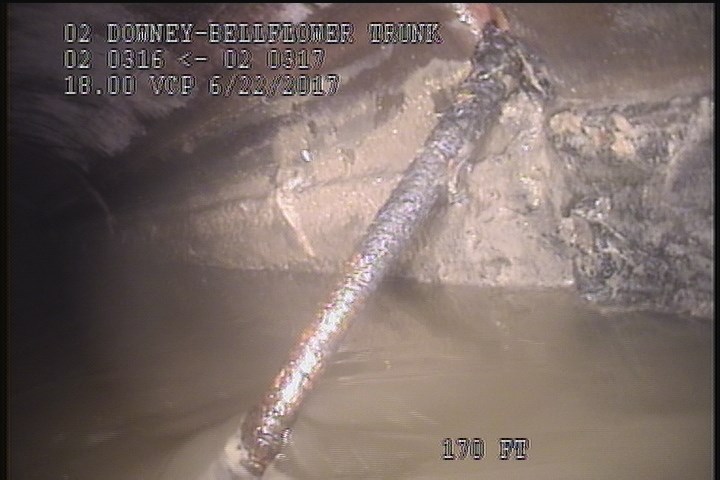

  • Obstacles External Pipe or Cable, 30 %of cross sectional area, from 03 to 07 o'clock - STEEL CABLE

    170 ft. - Obstacles External Pipe or Cable, 30 %of cross sectional area, from 03 to 07 o'clock - STEEL CABLE

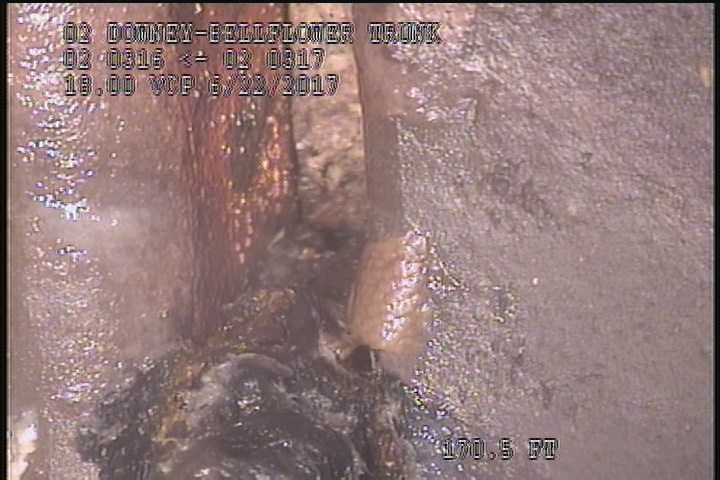

  • General Photograph

    170.5 ft. - General Photograph

All inspections of P02631Work order 0647471

Observations (45)

DistanceCodeObservation
109.4FCH
9.6FCHAIRLINE
47.5TFActive
0AMH4:45AM
0MWL—
113.4FCH
17.8FLH
86FCH
109.4FCH
147.9FCHAIRLINES AT JOINTS
57FCH
29.7FCH
170.8AMH5:20AM( COMPLETED BY REVERSE INSPECTION
25.6FCSL
147.9TFOpen
13.8FCSL
170OBPSTEEL CABLE
25.6FLH
13.8FCH
37.1FCH
4.8FCSLIGHT
117.3FCSL
170OBPSTEEL CABLE
4.8FCSLIGHT
96.6FCH
121.3FCH
170.5MGP—
93.5FCH
53FCH
21.8FMSLIGHT
105.2FCSL
101.3FCSL
96.6FCH
113.4FCH
117.3FCSL
86FCH
57FCSL
0MWM—
69.7FCSL
65.6FCH
17.8FCH
89.1FCH
61.4FCH
42FCSL
170.5FC70 % HAIRLINES AT JOINTS

Properties (4)

custom_field_three
SLIGHT FRACTURES
custom_field_two
3
customer
LACSD
datetime
2017-06-22T03:06:43-07:00
