Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 22, 2017, 07:23 AM

  • 02 0319_02 0318_6222017_004813.mp4

Date
06/22/2017
W/O
0647471
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00251
PipeID
P02633
Time
12:23 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0570
Sewer Name
02 DOWNEY-BELLFLOWER TRUNK
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
19A
Purpose
Routine Assessment
Project
201706021MDM_DOWNEY_BELLFLOWER_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Upstream MH
02 0318
Downstream MH
02 0319
Dir. of Survey
Upstream
Length Surveyed
106.8 ft.
Total Length
106.8 ft.
Structural Index
2
Structural Quick
3123
Structural Rating
9
O&M Index
3
O&M Quick
4231
O&M Rating
15
Overall Index
3
Overall Quick
—
Overall Rating
24
Pipe schematic from manhole 02 0318 to 02 0319
MH: 02 0318MH: 02 0319upstream0 ft. AMH - Upstream Manhole, Survey Ends - 12:50AM0.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish9 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES - HAIRLINE42 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SL46.6 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Capped57 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start57 ft. MWL - Water Level, 10 %of cross sectional area57 ft. MWM - Water Mark, 30 %of cross sectional area57 ft. DAGS - Deposits Attached Grease, 20 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish73.7 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - SL77.8 ft. MGO - General Observation - 18" VCP77.8 ft. DAGS - Deposits Attached Grease, 20 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start77.8 ft. DAGS - Deposits Attached Grease, 25 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish95.4 ft. TFD - Tap Factory Made Defective, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Active-30% GREASE103.8 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - SLIGHT104.8 ft. DAGS - Deposits Attached Grease, 25 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start106.8 ft. MWL - Water Level, 20 %of cross sectional area106.8 ft. AMH - Downstream Manhole, Survey Begins - 12:30AM106.8 ft. MWM - Water Mark, 50 %of cross sectional area106.8 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active

Observation photos (3)

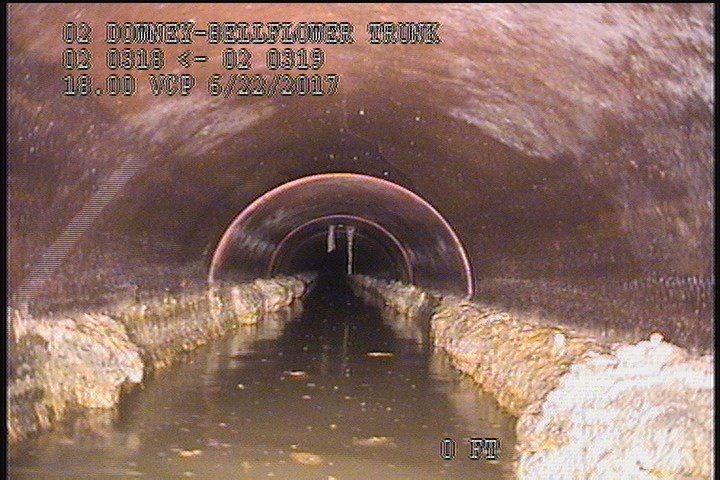

  • Deposits Attached Grease, 25 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 25 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

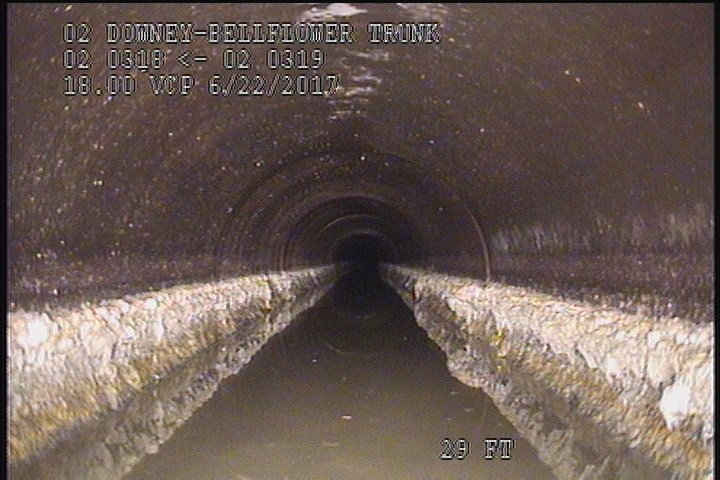

  • General Observation - 18" VCP

    29 ft. - General Observation - 18" VCP

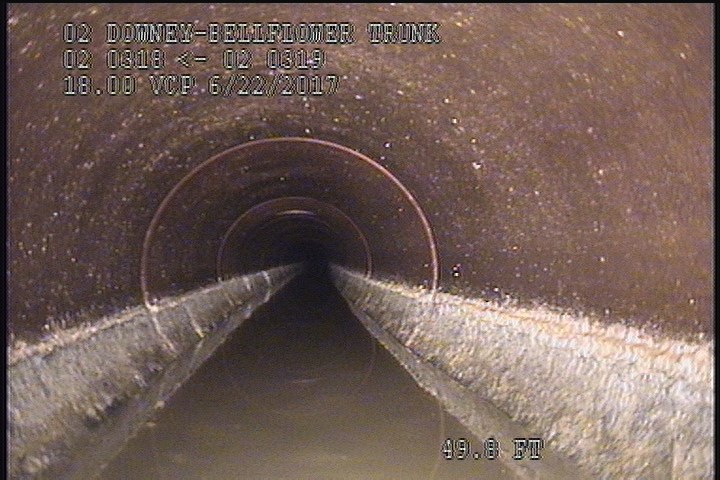

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    49.8 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

All inspections of P02633Work order 0647471

Observations (20)

DistanceCodeObservation
3FCSLIGHT
11.4TFDActive-30% GREASE
49.8DAGS—
106.8AMH12:50AM
29MGO18" VCP
60.2TFCCapped
29DAGS—
0MWL—
0AMH12:30AM
49.8MWL—
2DAGS—
64.8FCSL
97.8FLHAIRLINE
29DAGS—
49.8MWM—
0MWM—
0MGOConn. @ Mh, 9 O' Clock. Active
49.8DAGS—
33.1FCSL
106.3DAGS—

Properties (4)

custom_field_three
SLIGHT FRACTURES
custom_field_two
4
customer
LACSD
datetime
2017-06-22T00:23:51-07:00
