Wastewater/Activity/PacpInspection/1.0Apr 13, 2018, 07:04 AM
22 1390_22 1364_13042018_001127.mp4
- Date
- 04/13/2018
- W/O
- 695987
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00795
- PipeID
- P16647
- Time
- 12:04 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5568
- Sewer Name
- 22 CAMERON RELIEF TRUNK
- City
- WEST COVINA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 31
- Purpose
- Routine Assessment
- Project
- WO_695987_TV22009_APR2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 22 1390
- Downstream MH
- 22 1364
- Dir. of Survey
- Downstream
- Length Surveyed
- 197 ft.
- Total Length
- 197 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 3
- O&M Quick
- 3121
- O&M Rating
- 5
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (2)

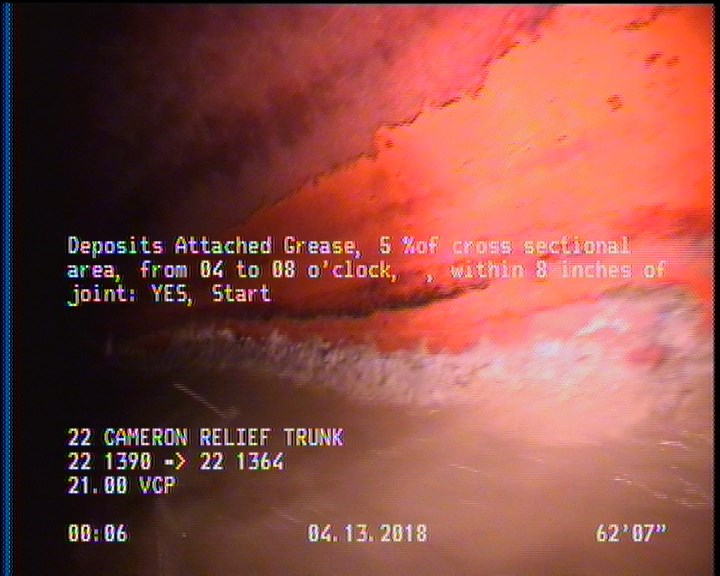

61.8 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

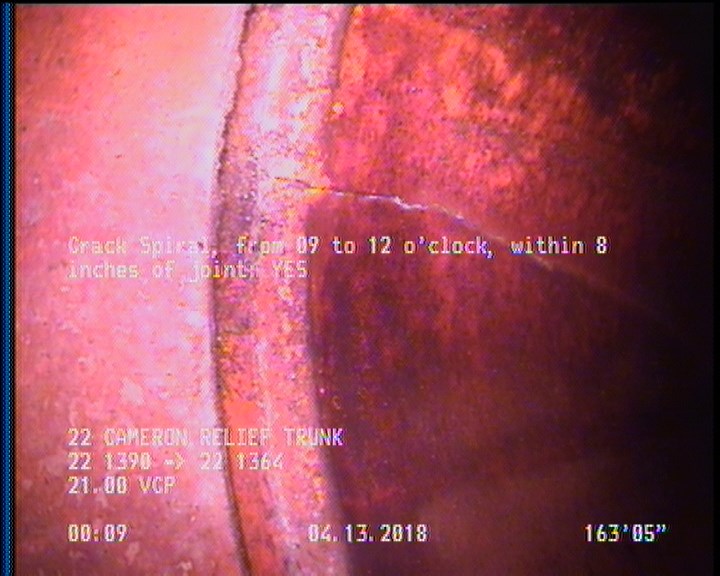

163.4 ft. - Crack Spiral, from 09 to 12 o'clock, within 8 inches of joint: YES
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 61.8 | DAGS | — |
| 163.4 | CS | — |
| 195.7 | DSZ | — |
| 0 | MWL | — |
| 195.7 | DAGS | — |
| 197 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 197 | AMH | 22 1364 |
| 0 | MWM | — |
| 0 | AMH | 22 1390 |
| 149.6 | DSZ | DEBRIS |
Properties (5)
- additional_info
- SC358527
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-04-13T00:04:06-07:00
- year_laid
- 33023
