Wastewater/Activity/PacpInspection/1.0Apr 12, 2018, 08:36 AM
22 1399_22 1398_12042018_015013.mp4
- Date
- 04/12/2018
- W/O
- 695987
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00795
- PipeID
- P16656
- Time
- 1:36 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5567
- Sewer Name
- 22 CAMERON RELIEF TRUNK
- City
- WEST COVINA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 32
- Purpose
- Routine Assessment
- Project
- WO_695987_TV22009_APR2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 22 1399
- Downstream MH
- 22 1398
- Dir. of Survey
- Downstream
- Length Surveyed
- 334.5 ft.
- Total Length
- 334.5 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2L00
- O&M Rating
- 132
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 132
Observation photos (1)

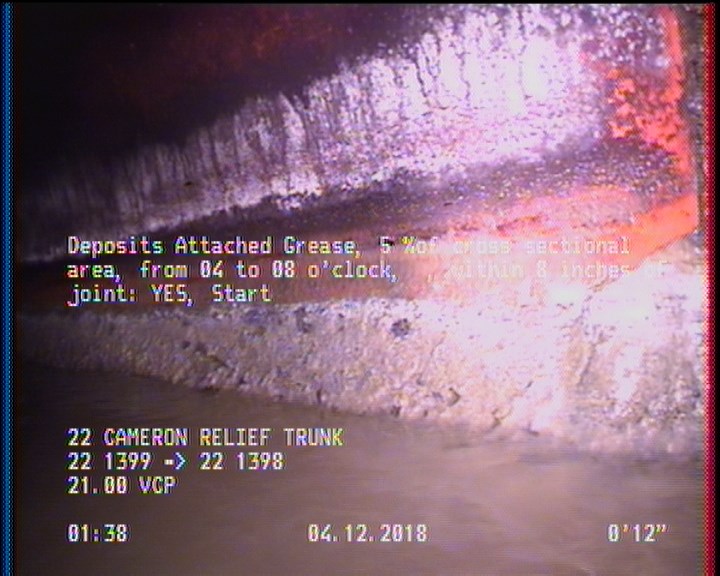

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 334.5 | AMH | 22 1398 |
| 0 | MWL | — |
| 0 | AMH | 22 1399 |
| 2 | DAGS | — |
| 334.5 | DAGS | — |
| 0 | MWM | — |
Properties (5)
- additional_info
- SC358526
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-04-12T01:36:04-07:00
- year_laid
- 33023
