Wastewater/Activity/PacpInspection/1.0Apr 16, 2018, 09:16 AM
22 1360_22 1359 _16042018_022159.mp4
- Date
- 04/16/2018
- W/O
- 695987
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00795
- PipeID
- P16641
- Time
- 2:16 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5569
- Sewer Name
- 22 CAMERON RELIEF TRUNK
- City
- WEST COVINA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 36
- Purpose
- Routine Assessment
- Project
- WO_695987_TV22009_APR2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 22 1360
- Downstream MH
- 22 1359
- Dir. of Survey
- Downstream
- Length Surveyed
- 105.6 ft.
- Total Length
- 105.6 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (2)

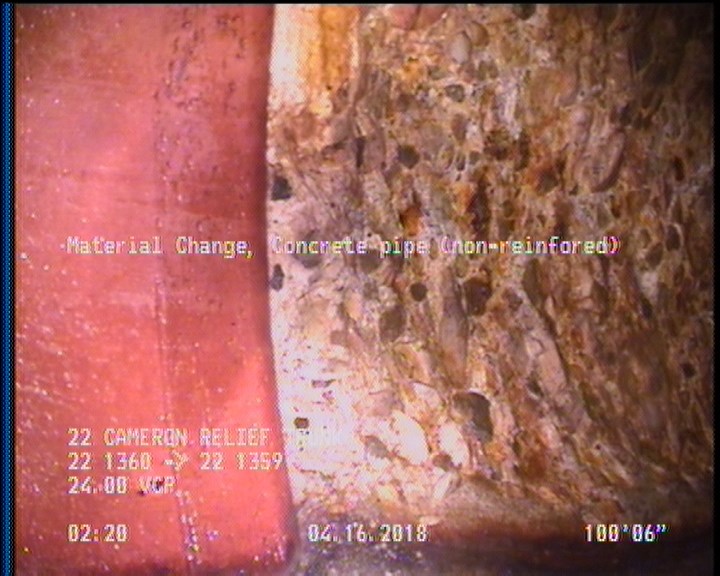

100.5 ft. - Material Change, Concrete pipe (non-reinfored)

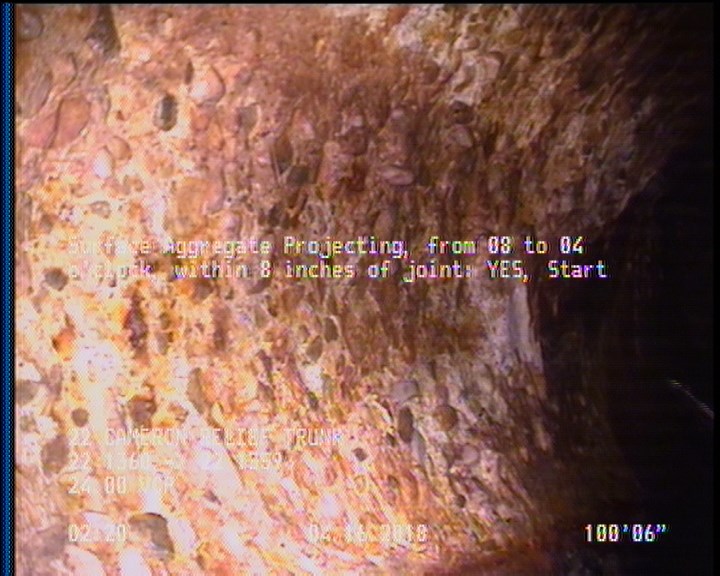

100.5 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 105.6 | SAP | — |
| 100.5 | MMC | — |
| 105.6 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 0 | AMH | 22 1360 |
| 100.5 | SAP | — |
| 0 | MWM | — |
| 105.6 | AMH | 22 1359 |
| 0 | MWL | — |
Properties (5)
- additional_info
- SC358528
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-04-16T02:16:25-07:00
- year_laid
- 32531
