Wastewater/Activity/PacpInspection/1.0Apr 16, 2018, 10:31 AM
22 0282_22 1364 _16042018_033936.mp4
- Date
- 04/16/2018
- W/O
- 695987
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00795
- PipeID
- P16646
- Time
- 3:31 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5569
- Sewer Name
- 22 CAMERON RELIEF TRUNK
- City
- WEST COVINA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 31
- Purpose
- Routine Assessment
- Project
- WO_695987_TV22009_APR2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 22 0282
- Downstream MH
- 22 1364
- Dir. of Survey
- Downstream
- Length Surveyed
- 11 ft.
- Total Length
- 11 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (1)

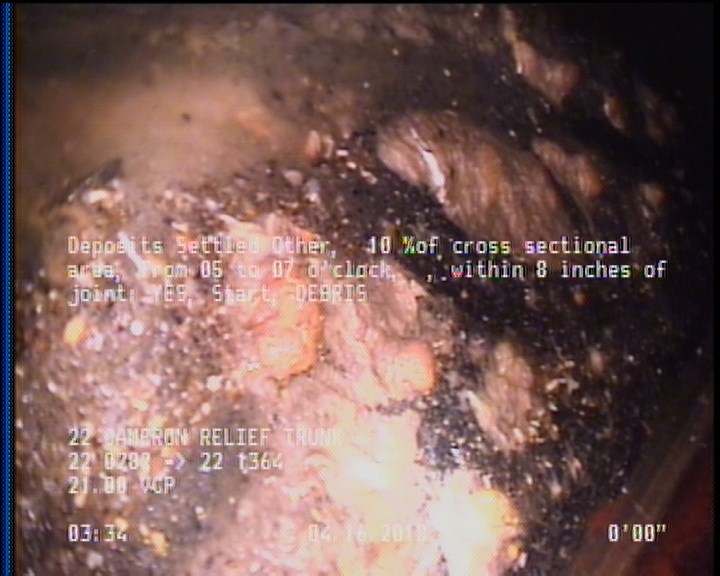

2 ft. - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - DEBRIS
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 22 0282 |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 11 | AMH | 22 1364 |
| 0 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 2 | DSZ | DEBRIS |
| 0 | MWL | — |
| 11 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 0 | MWM | — |
| 11 | DSZ | — |
Properties (5)
- additional_info
- SC358528
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-04-16T03:31:23-07:00
- year_laid
- 32531
