Wastewater/Activity/PacpInspection/1.0Apr 17, 2018, 07:51 AM
15 0599_15 0598 _17042018_010935.mp4
- Date
- 04/17/2018
- W/O
- 695907
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00628
- PipeID
- P12531
- Time
- 12:51 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5570
- Sewer Name
- 15 SANTA ANITA CONNECTION TRUNK
- City
- TEMPLE CITY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 11
- Purpose
- Routine Assessment
- Project
- WO_695907_TV15086_APR2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 15 0599
- Downstream MH
- 15 0598
- Dir. of Survey
- Downstream
- Length Surveyed
- 310.5 ft.
- Total Length
- 310.5 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2111
- O&M Rating
- 3
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (2)

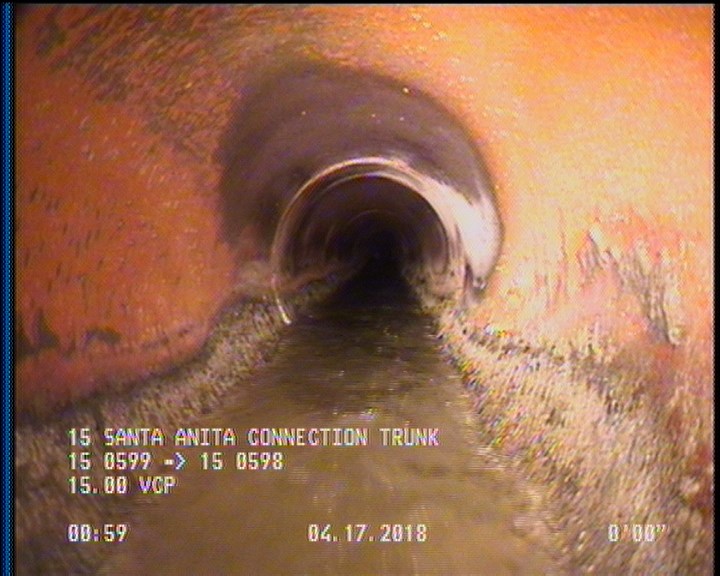

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start

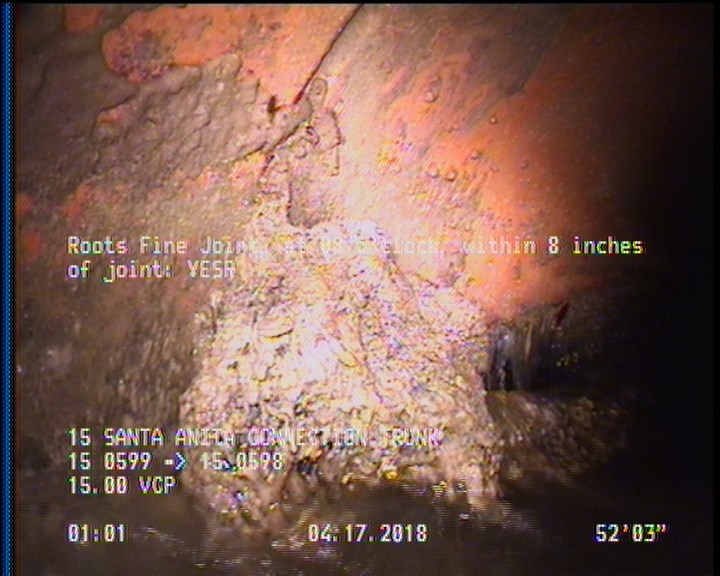

52.3 ft. - Roots Fine Joint, at 08 o'clock, within 8 inches of joint: YESR - 5 % cross sectional loss
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 308.7 | DAGS | — |
| 308.7 | MGO | COCKROACHES IN MANHOLE |
| 0 | MWL | — |
| 52.3 | RFJ | 5 % cross sectional loss |
| 0 | AMH | 15 0599 |
| 310.5 | MGO | ACTIVE CONNECTION AT MH 3 AND 9 O'CLOCK |
| 310 | MGO | Surface Spalling throughout the reach, 9 to 3 oclock |
| 2 | DAGS | — |
| 0 | MWM | — |
| 310.5 | AMH | 15 0598 |
Properties (4)
- additional_info
- SC358529
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-04-17T00:51:42-07:00
