Wastewater/Activity/PacpInspection/1.0Apr 17, 2018, 08:34 AM
15 0549_15 0599 _17042018_014014.mp4
- Date
- 04/17/2018
- W/O
- 695907
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00628
- PipeID
- P12532
- Time
- 1:34 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5570
- Sewer Name
- 15 SANTA ANITA CONNECTION TRUNK
- City
- TEMPLE CITY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 11
- Purpose
- Routine Assessment
- Project
- WO_695907_TV15086_APR2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 15 0599
- Downstream MH
- 15 0549
- Dir. of Survey
- Upstream
- Length Surveyed
- 40.6 ft.
- Total Length
- 40.6 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (1)

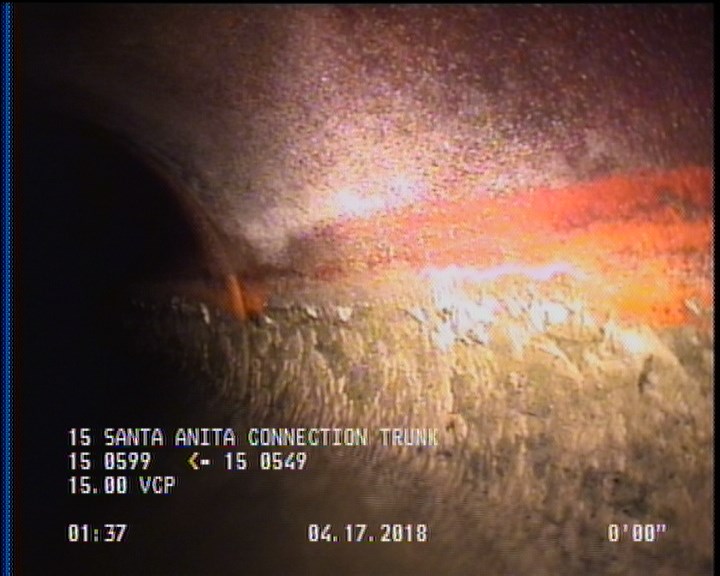

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 39.1 | DAGS | — |
| 40.6 | MGO | ACTIVE CONNECTION AT MH 9 AND 12 O'CLOCK |
| 0 | AMH | 15 0599 |
| 0 | MWL | — |
| 0 | MWM | — |
| 39.1 | MGO | COCKROACHES IN MANHOLE |
| 40.6 | AMH | 15 0549 |
| 2 | DAGS | — |
| 40 | MGO | Surface Spalling throughout the reach, 9 to 3 oclock |
Properties (4)
- additional_info
- SC358529
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-04-17T01:34:38-07:00
