Wastewater/Activity/PacpInspection/1.0Apr 17, 2018, 09:52 AM
15 0593_15 0592 _17042018_030125.mp4
- Date
- 04/17/2018
- W/O
- 695907
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00628
- PipeID
- P12525
- Time
- 2:52 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5570
- Sewer Name
- 15 SANTA ANITA CONNECTION TRUNK
- City
- TEMPLE CITY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 11
- Purpose
- Routine Assessment
- Project
- WO_695907_TV15086_APR2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 15 0593
- Downstream MH
- 15 0592
- Dir. of Survey
- Downstream
- Length Surveyed
- 312.7 ft.
- Total Length
- 312.7 ft.
- Structural Index
- 3
- Structural Quick
- 3221
- Structural Rating
- 8
- O&M Index
- 3
- O&M Quick
- 4121
- O&M Rating
- 6
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 14
Observation photos (4)

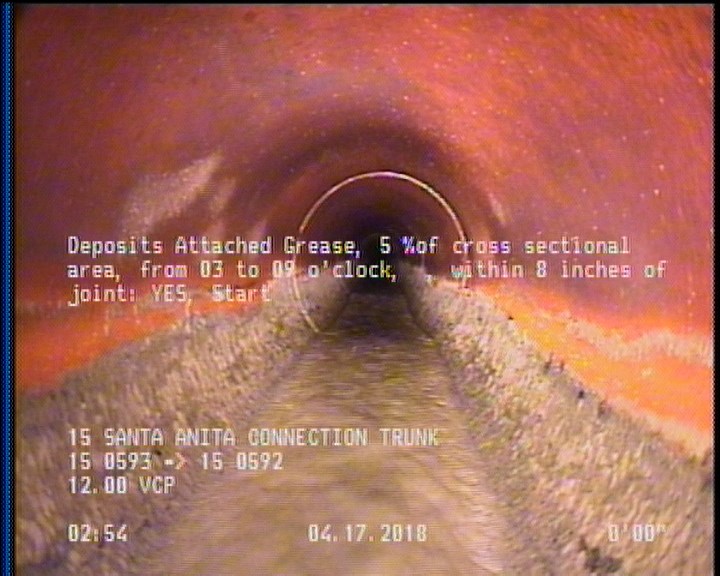

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

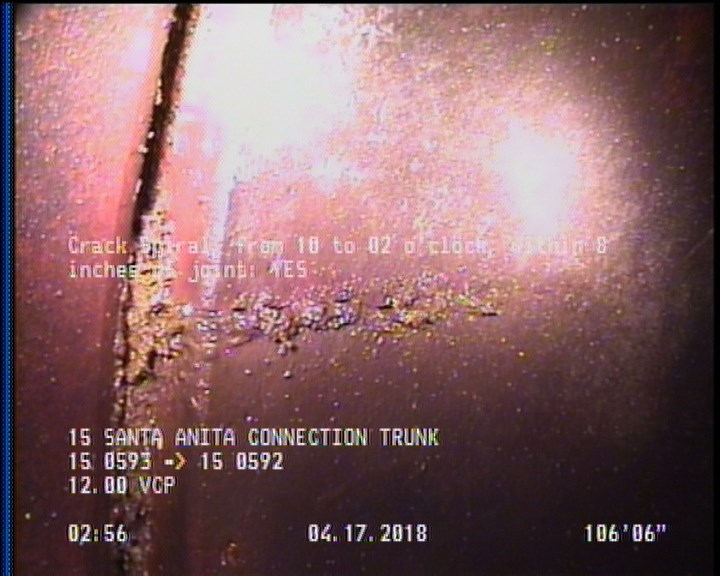

106.5 ft. - Crack Spiral, from 10 to 02 o'clock, within 8 inches of joint: YES

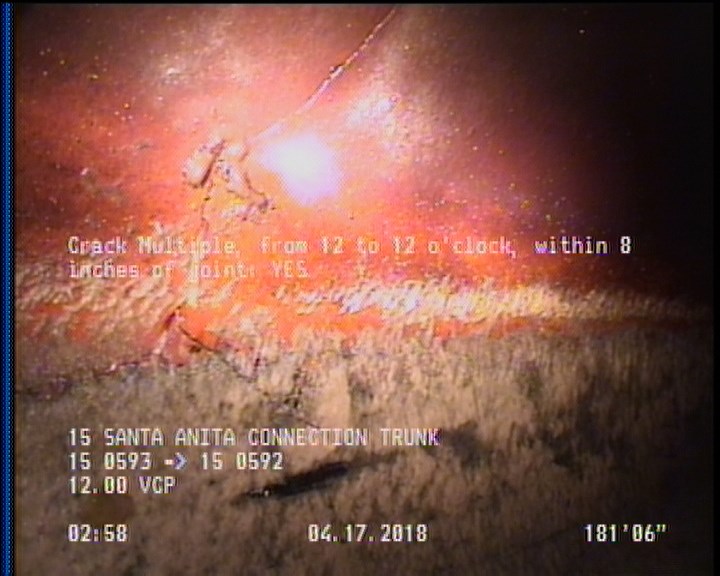

181.5 ft. - Crack Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES

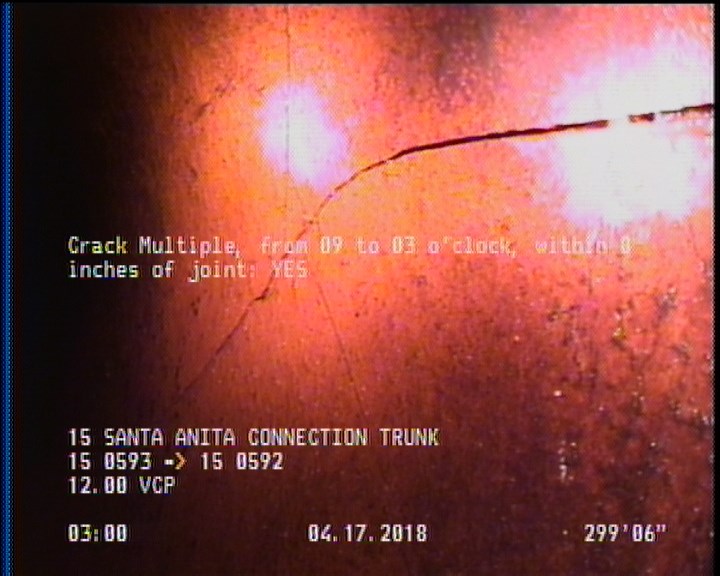

299.5 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 312.7 | DAGS | — |
| 181.5 | CM | — |
| 0 | MWM | — |
| 312 | MGO | Surface Spalling throughout the reach, 9 to 3 oclock |
| 0 | MWL | — |
| 0 | AMH | 15 0593 |
| 106.5 | CS | — |
| 2 | DAGS | — |
| 299.5 | CM | — |
| 312.7 | AMH | 15 0592 |
Properties (4)
- additional_info
- SC358529
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-04-17T02:52:35-07:00
