Wastewater/Activity/PacpInspection/1.0Apr 17, 2018, 10:09 AM
15 0591_B 0775 _17042018_032045.mp4
- Date
- 04/17/2018
- W/O
- 695907
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00628
- PipeID
- P12523
- Time
- 3:09 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5570
- Sewer Name
- 15 SANTA ANITA CONNECTION TRUNK
- City
- TEMPLE CITY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 11
- Purpose
- Routine Assessment
- Project
- WO_695907_TV15086_APR2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 15 0591
- Downstream MH
- B 0775
- Dir. of Survey
- Downstream
- Length Surveyed
- 301.9 ft.
- Total Length
- 301.9 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2K00
- O&M Rating
- 120
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 123
Observation photos (3)

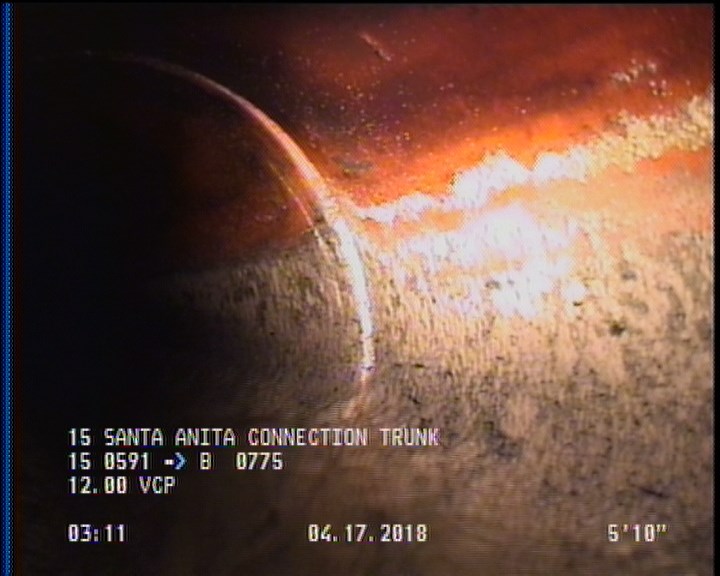

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

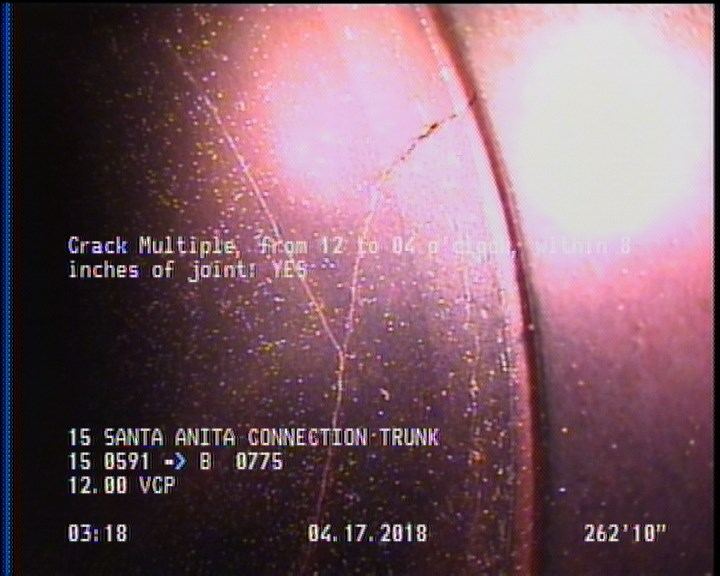

262.8 ft. - Crack Multiple, from 12 to 04 o'clock, within 8 inches of joint: YES

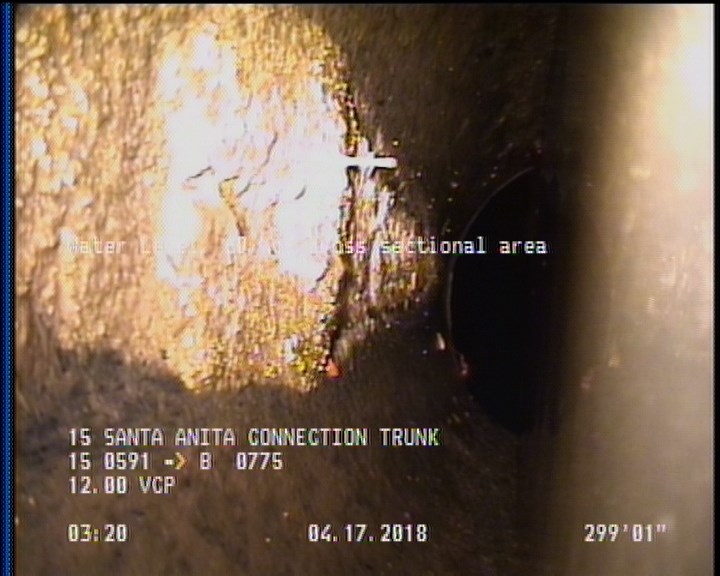

299 ft. - Water Level, 60 %of cross sectional area
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 2 | DAGS | — |
| 0 | AMH | 15 0591 |
| 299 | MWL | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 262.8 | CM | — |
| 301 | MGO | Surface Spalling throughout the reach, 9 to 3 oclock |
| 301.9 | AMH | B 0775 |
| 301.9 | DAGS | — |
Properties (4)
- additional_info
- SC358529
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-04-17T03:09:57-07:00
