Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 18, 2018, 04:42 AM

  • A 0571_A 0570 _17042018_220500.mp4

Date
04/17/2018
W/O
695770
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00327
PipeID
P08352
Time
9:42 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5533
Sewer Name
A JOA-1A SOUTH HAWTHORNE-WARFIELD AV EXTENSION
City
LAWNDALE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
19
Purpose
Routine Assessment
Project
WO_695770_TV05327_APR2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
A 0571
Downstream MH
A 0570
Dir. of Survey
Downstream
Length Surveyed
520.5 ft.
Total Length
520.6 ft.
Structural Index
3
Structural Quick
513H
Structural Rating
144
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
144
Pipe schematic from manhole A 0571 to A 0570
MH: A 0571MH: A 0570downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - A 05710 ft. MWL - Water Level, 15 %of cross sectional area13.6 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start35 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start35 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish36.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"42 ft. H - Hole, at 01 o'clock, within 8 inches of joint: YES45.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"71 ft. B - Broken, from 09 to 12 o'clock, within 8 inches of joint: YES73.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"97 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"121.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"148.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"157.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"190.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"193.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"242.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"245.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"246.6 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish279.3 ft. MGO - General Observation - CAPPED LATERAL 9 O'CLOCK @ MH279.3 ft. MGO - General Observation - ABANDONED MH279.3 ft. MGO - General Observation - CAPPED LATERAL 3 O'CLOCK @ MH329.9 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 6"343.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"367.3 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 6"396.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"414.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"447 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"448.4 ft. CL - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES455.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"498.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"502 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"520.6 ft. AMH - Downstream Manhole, Survey Ends - A 0570

Observation photos (4)

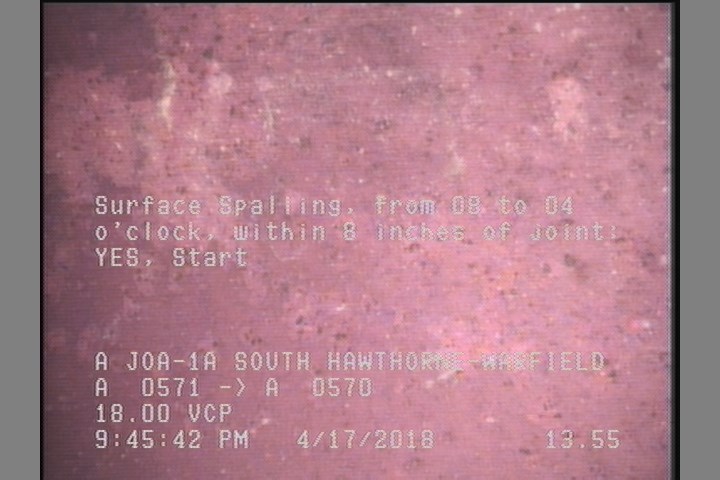

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    13.6 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

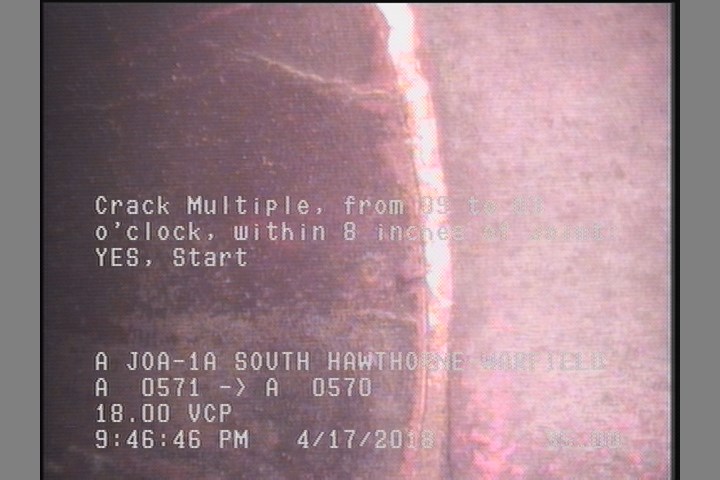

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    35 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

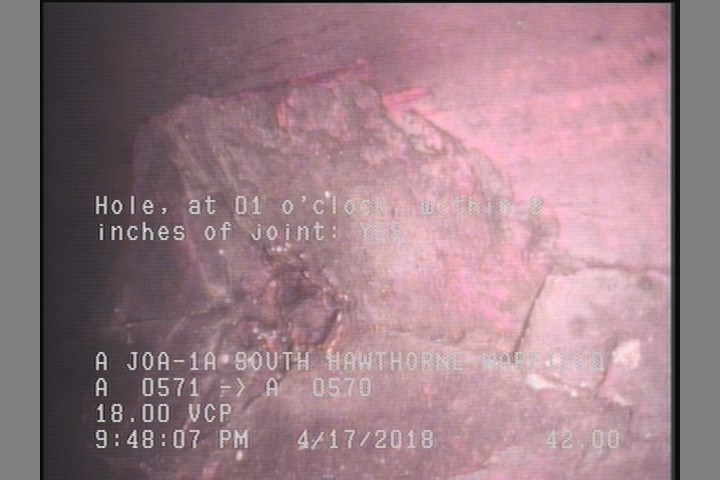

  • Hole, at 01 o'clock, within 8 inches of joint: YES

    42 ft. - Hole, at 01 o'clock, within 8 inches of joint: YES

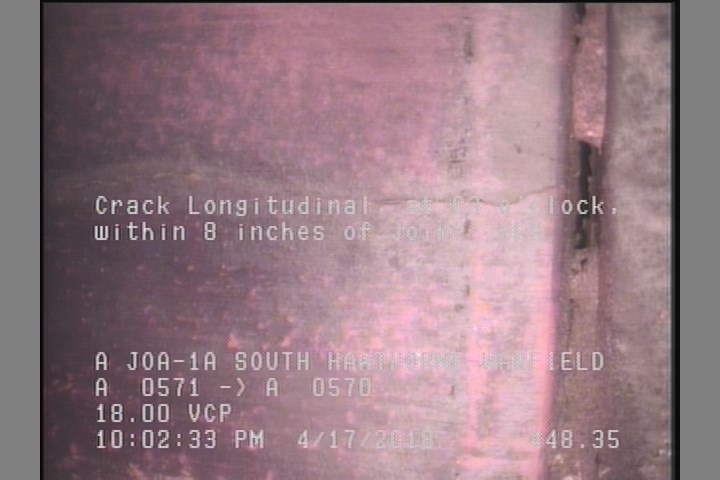

  • Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

    448.4 ft. - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

All inspections of P08352Work order 695770

Observations (35)

DistanceCodeObservation
367.3TFC—
329.9TFC—
447TFC—
0MWM—
414.1TFC—
279.3MGOCAPPED LATERAL 9 O'CLOCK @ MH
502TFC—
36.9TFC—
97TFC—
245.2TFC—
35CM—
73.1TFC—
71B—
343.7TFC—
396.1TFC—
455.2TF—
279.3MGOABANDONED MH
242.5TFC—
13.6SSS—
246.6CM—
279.3MGOCAPPED LATERAL 3 O'CLOCK @ MH
45.2TFC—
157.6TFC—
0MGOCONNECTION AT MH 3 O'CLOCK
520.6AMHA 0570
121.3TFC—
190.2TFC—
498.6TF—
193.4TFC—
0AMHA 0571
148.3TFC—
0MWL—
42H—
448.4CL—
35SSS—
