Wastewater/Activity/PacpInspection/1.0Apr 17, 2018, 05:24 AM
05 0759_05 0758 _16042018_223921.mp4
- Date
- 04/16/2018
- W/O
- 695723
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00484
- PipeID
- P05986
- Time
- 10:24 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5531
- Sewer Name
- 05 MANCHESTER-VERMONT RELIEF TRUNK
- City
- LOS ANGELES
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_695723_TV05315_APR2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 05 0759
- Downstream MH
- 05 0758
- Dir. of Survey
- Downstream
- Length Surveyed
- 424 ft.
- Total Length
- 424 ft.
- Structural Index
- 4
- Structural Quick
- 4P00
- Structural Rating
- 336
- O&M Index
- 2
- O&M Quick
- 2111
- O&M Rating
- 3
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 339
Observation photos (3)

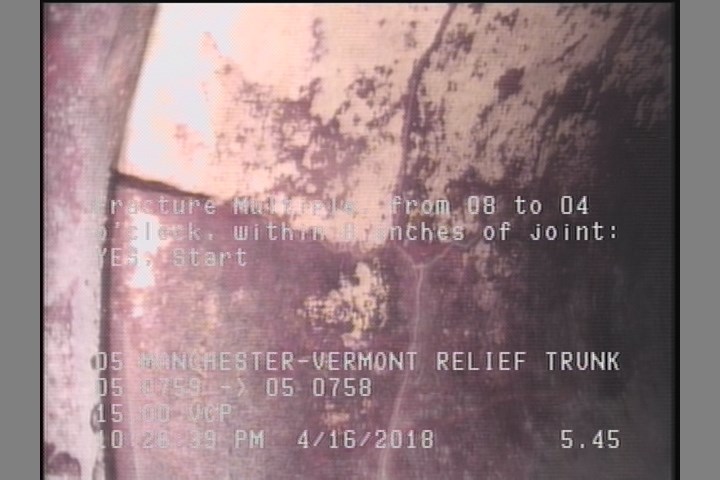

5.5 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

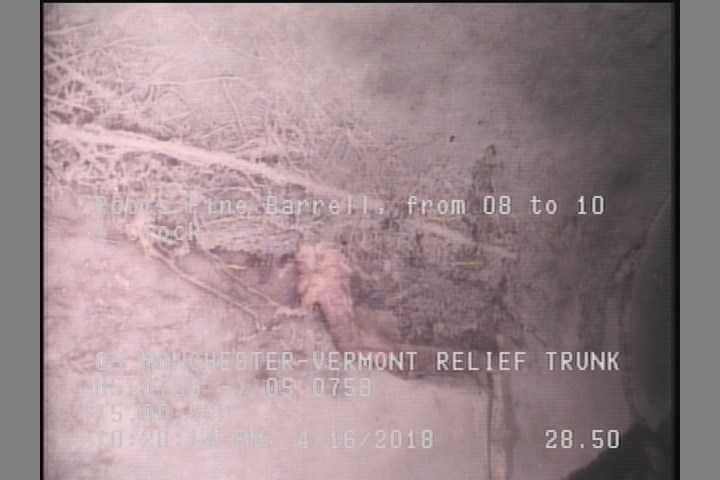

28.5 ft. - Roots Fine Barrell, from 08 to 10 o'clock

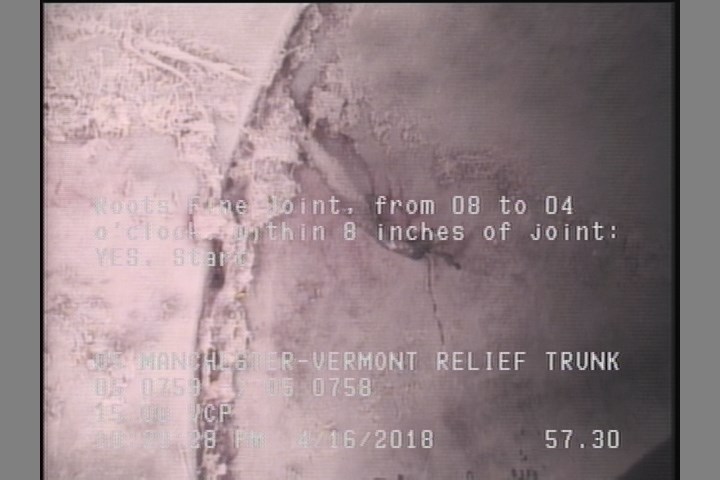

57.3 ft. - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 247.7 | RFJ | — |
| 423 | MGO | Surface Spalling throughout the reach from 7 to 5 oclock |
| 0 | MWL | — |
| 57.3 | RFJ | — |
| 5.5 | FM | — |
| 423.9 | FM | — |
| 0 | MWM | — |
| 28.5 | RFB | — |
| 424 | AMH | 05 0758 |
| 0 | AMH | 05 0759 |
Properties (4)
- additional_info
- SC358739
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-04-16T22:24:56-07:00
