Wastewater/Activity/PacpInspection/1.0Apr 6, 2018, 06:56 AM
H 0378_H 0377_06042018_001915.mp4
- Date
- 04/05/2018
- W/O
- 691322
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00177
- PipeID
- P20456
- Time
- 11:56 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5520
- Sewer Name
- H JOINT OUTFALL H - UNIT 5A
- City
- PICO RIVERA
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 03
- Purpose
- Routine Assessment
- Project
- WO_691322_TV18122_MAR2018
- Sewer Type
- Siphon
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 66 in.
- Width
- 66 in.
- Upstream MH
- H 0378
- Downstream MH
- H 0377
- Dir. of Survey
- Downstream
- Length Surveyed
- 2.1 ft.
- Total Length
- 2.1 ft.
- Structural Index
- 4
- Structural Quick
- 5131
- Structural Rating
- 8
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (3)

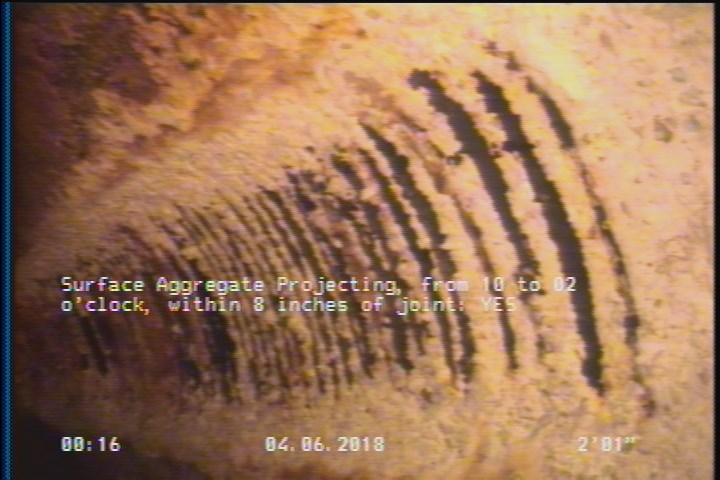

2.1 ft. - Surface Aggregate Projecting, from 10 to 02 o'clock, within 8 inches of joint: YES

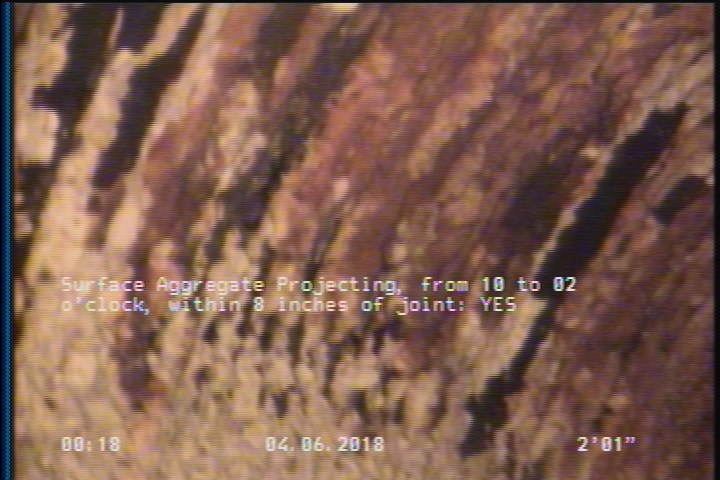

2.1 ft. - Surface Reinforcement Visible, from 10 to 02 o'clock, within 8 inches of joint: YES

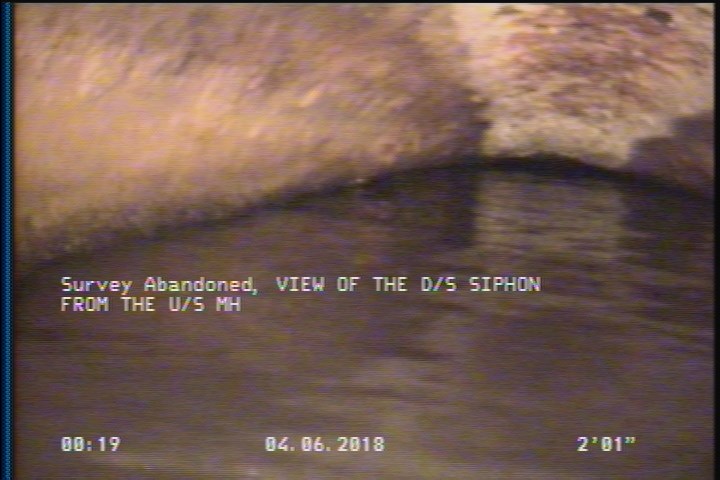

2.1 ft. - Survey Abandoned - VIEW OF THE D/S SIPHON FROM THE U/S MH
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 2.1 | SAP | — |
| 2.1 | SRV | — |
| 0 | AMH | H 0378 |
| 0 | MWL | — |
| 0.7 | MWM | — |
| 2.1 | MSA | VIEW OF THE D/S SIPHON FROM THE U/S MH |
Properties (4)
- additional_info
- SC358727
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-04-05T23:56:49-07:00
