Wastewater/Activity/PacpInspection/1.0Mar 15, 2018, 09:26 AM
18 0419_18 0418_15032018_024115.mp4
- Date
- 03/15/2018
- W/O
- 690550
- Weather
- Light Rain
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00699
- PipeID
- P14254
- Time
- 2:26 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5488
- Sewer Name
- 18 SANTA FE STREET RELIEF TRUNK
- City
- WHITTIER
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- WO_690550_TV18173_MAR2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 18 0419
- Downstream MH
- 18 0418
- Dir. of Survey
- Downstream
- Length Surveyed
- 357.6 ft.
- Total Length
- 357.6 ft.
- Structural Index
- 3
- Structural Quick
- 3M00
- Structural Rating
- 213
- O&M Index
- 2
- O&M Quick
- 412M
- O&M Rating
- 146
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 359
Observation photos (2)
2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

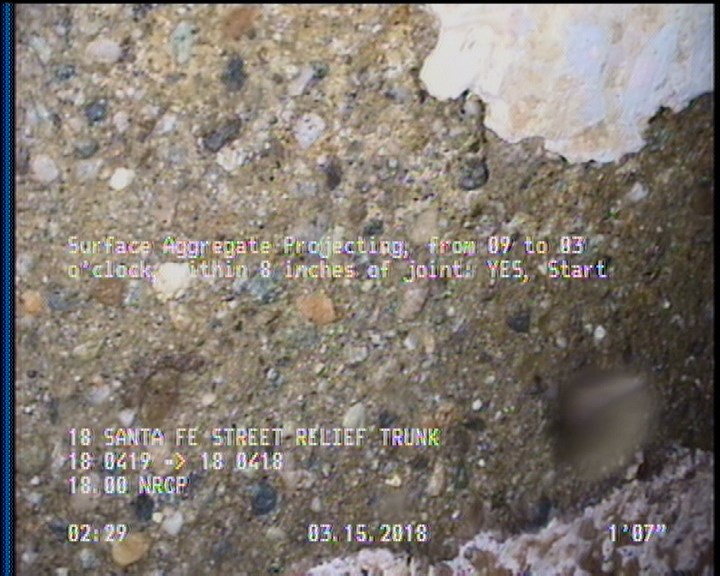

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 2 | DAGS | — |
| 356 | MGO | Surface Spalling throughout the reach from 7 to 5 oclock. |
| 356 | DAGS | — |
| 0 | MWM | — |
| 357.6 | AMH | 18 0418 |
| 30.5 | MGO | MAG COATING 50% THROUGH OUT |
| 2 | SAP | — |
| 356 | SAP | — |
| 0 | AMH | 18 0419 |
Properties (4)
- additional_info
- SC358495
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-03-15T02:26:59-07:00
