Wastewater/Activity/PacpInspection/1.0Apr 2, 2018, 08:41 AM
18 0410_18 0409_02042018_014929.mp4
- Date
- 04/02/2018
- W/O
- 690550
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00699
- PipeID
- P14245
- Time
- 1:41 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5516
- Sewer Name
- 18 SANTA FE STREET RELIEF TRUNK
- City
- WHITTIER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- WO_690550_TV18173_MAR2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 18 0410
- Downstream MH
- 18 0409
- Dir. of Survey
- Downstream
- Length Surveyed
- 127.1 ft.
- Total Length
- 127.1 ft.
- Structural Index
- 3
- Structural Quick
- 3D00
- Structural Rating
- 72
- O&M Index
- 1
- O&M Quick
- 1100
- O&M Rating
- 1
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 73
Observation photos (2)

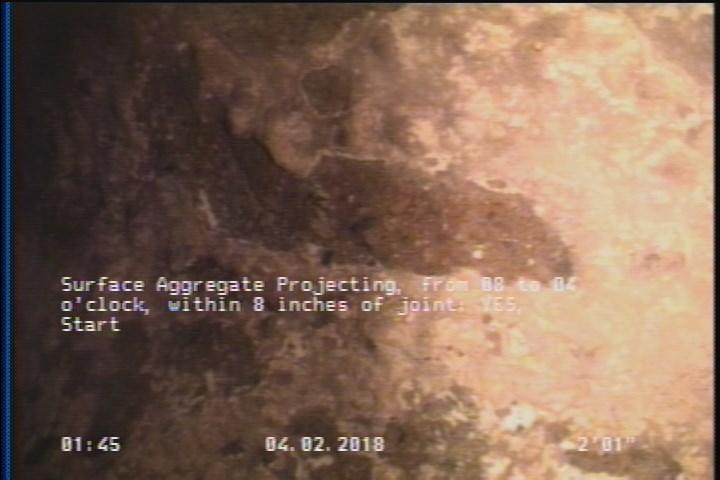

2.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

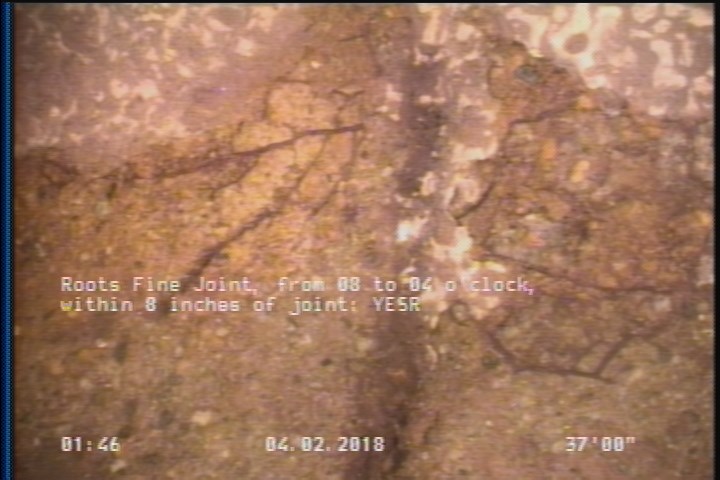

37 ft. - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 127 | MGO | Surface Spalling throughout the reach from 7 to 5 oclock. |
| 0 | MWL | — |
| 0 | MWM | — |
| 37 | RFJ | — |
| 2.1 | SAP | — |
| 0 | AMH | 18 0410 |
| 127.1 | AMH | 18 0409 |
| 123.8 | SAP | — |
Properties (4)
- additional_info
- SC358722
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-04-02T01:41:59-07:00
