Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 2, 2018, 08:49 AM

  • 18 0409_18 0408_02042018_015607.mp4

Date
04/02/2018
W/O
690550
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00699
PipeID
P14244
Time
1:49 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5516
Sewer Name
18 SANTA FE STREET RELIEF TRUNK
City
WHITTIER
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
21
Purpose
Routine Assessment
Project
WO_690550_TV18173_MAR2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
18 0409
Downstream MH
18 0408
Dir. of Survey
Downstream
Length Surveyed
123.9 ft.
Total Length
123.9 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
1
O&M Quick
2112
O&M Rating
4
Overall Index
2
Overall Quick
—
Overall Rating
7
Pipe schematic from manhole 18 0409 to 18 0408
MH: 18 0409MH: 18 0408downstream0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 18 04090 ft. MWL - Water Level, 15 %of cross sectional area2.2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start6.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"64.6 ft. RFB - Roots Fine Barrell, from 11 to 01 o'clock, within 8 inches of joint: NO99.3 ft. RFJ - Roots Fine Joint, at 01 o'clock, within 8 inches of joint: YESR119.2 ft. RFJ - Roots Fine Joint, at 09 o'clock, within 8 inches of joint: YESR123 ft. MGO - General Observation - Surface Spalling throughout the reach from 7 to 5 oclock.123.9 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish123.9 ft. AMH - Downstream Manhole, Survey Ends - 18 0408

Observation photos (3)

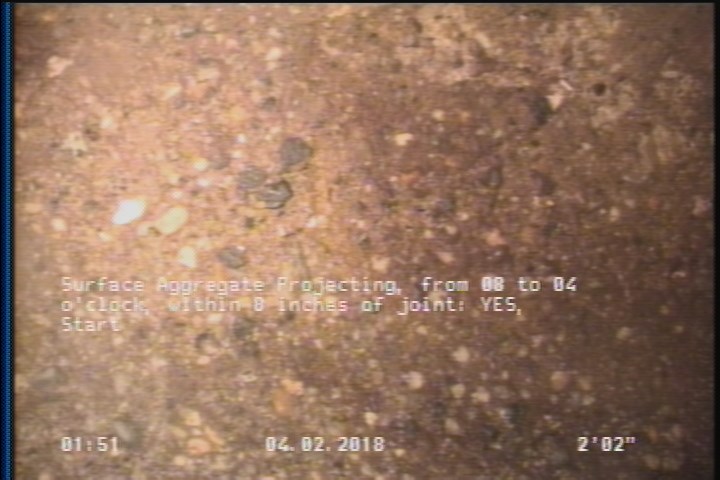

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

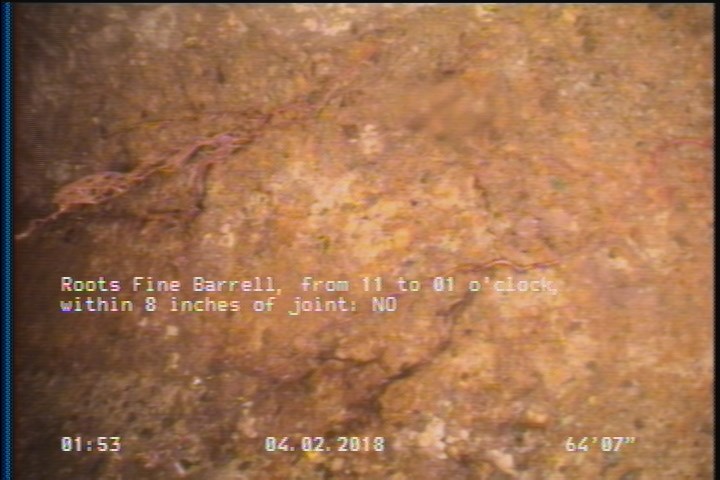

  • Roots Fine Barrell, from 11 to 01 o'clock, within 8 inches of joint: NO

    64.6 ft. - Roots Fine Barrell, from 11 to 01 o'clock, within 8 inches of joint: NO

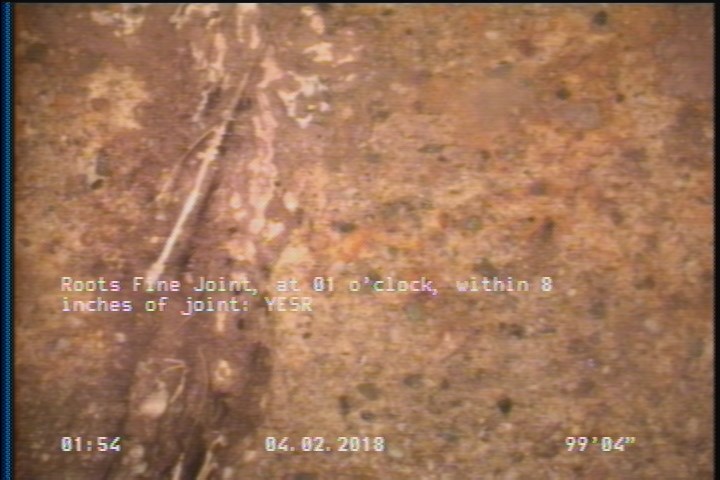

  • Roots Fine Joint, at 01 o'clock, within 8 inches of joint: YESR

    99.3 ft. - Roots Fine Joint, at 01 o'clock, within 8 inches of joint: YESR

All inspections of P14244Work order 690550

Observations (11)

DistanceCodeObservation
64.6RFB—
99.3RFJ—
123.9SAP—
0MWM—
119.2RFJ—
0AMH18 0409
2.2SAP—
0MWL—
123.9AMH18 0408
123MGOSurface Spalling throughout the reach from 7 to 5 oclock.
6.7TF—

Properties (4)

additional_info
SC358722
custom_field_two
3
customer
LACSD
datetime
2018-04-02T01:49:39-07:00
