Wastewater/Activity/PacpInspection/1.0Oct 28, 2017, 05:59 PM
19 0184_19 0183_10282017_113822.mp4
- Date
- 10/28/2017
- W/O
- 0650319
- Weather
- Dry
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z00719
- PipeID
- P15153
- Time
- 10:59 AM
- Certificate
- U-1014-06022541
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- G7548
- Sewer Name
- 19 CERRITOS TRUNK
- City
- CERRITOS
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 19
- Page No.
- 05
- Purpose
- Maintenance Related
- Project
- 20171028SHO_CERRITOS_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 19 0184
- Downstream MH
- 19 0183
- Dir. of Survey
- Downstream
- Length Surveyed
- 87.7 ft.
- Total Length
- 87.7 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 4
- O&M Quick
- 4131
- O&M Rating
- 7
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (1)

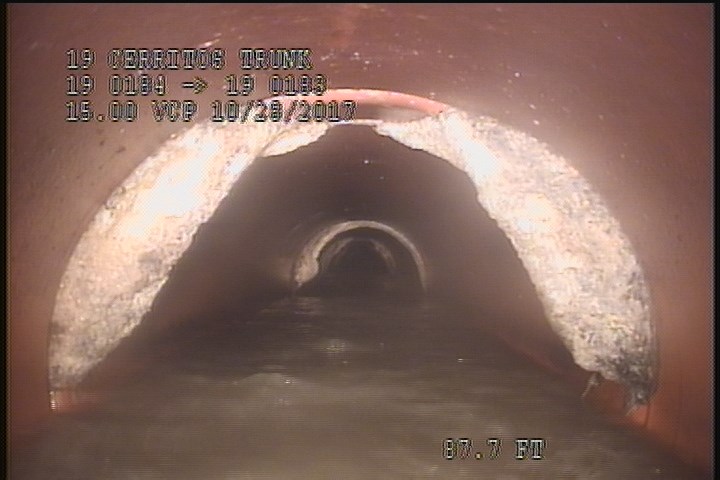

87.7 ft. - Deposits Attached Encrustation, 20 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES
Observations (4)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 0 | MWL | — |
| 87.7 | DAE | — |
| 0 | AMH | 1130 |
Properties (5)
- additional_info
- THEY CLEANED UP TO 140' D/S OF 184
- custom_field_three
- CHAIN-KNOCKER COULDN'T MAKE IT TO THE CAMERA
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2017-10-28T10:59:48-07:00
