Wastewater/Activity/PacpInspection/1.0Jul 21, 2017, 07:14 AM
02 0019B_02 0019A_7212017_054026.mp4
- Date
- 07/21/2017
- W/O
- 0641143
- Weather
- Dry
- Operator/Surveyor
- REVELES
- Sewer ID
- Z00234
- PipeID
- P03048
- Time
- 12:14 AM
- Certificate
- U-115-06022630
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0599
- Sewer Name
- 02 ARTESIA EXTENSION TRUNK
- City
- BELLFLOWER
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 39
- Purpose
- Capital Improvement Program Assesment
- Project
- 20170721VMR_ARTESIA_EXTENSION_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Upstream MH
- 02 0019A
- Downstream MH
- 02 0019B
- Dir. of Survey
- Upstream
- Length Surveyed
- 3 ft.
- Total Length
- 3 ft.
- Structural Index
- 1
- Structural Quick
- 1100
- Structural Rating
- 1
- O&M Index
- 5
- O&M Quick
- 5100
- O&M Rating
- 5
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (2)

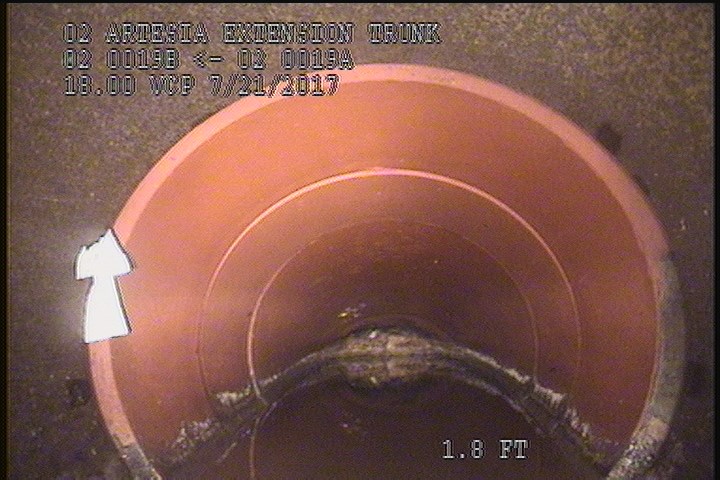

1.8 ft. - Joint Offset Medium, .5"

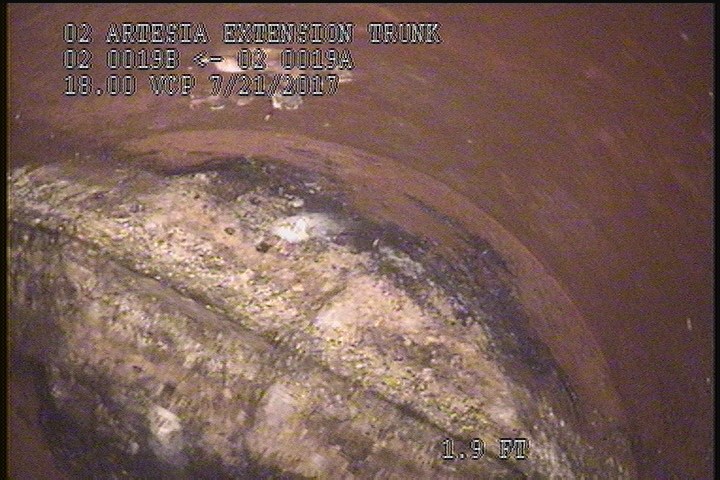

1.9 ft. - Deposits Attached Grease, 50 %of cross sectional area, from 01 to 11 o'clock, , within 8 inches of joint: NO
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 1.8 | JOM | — |
| 1.9 | DAGS | — |
| 0 | AMH | 05:41 AM |
| 0 | MGO | STOPLOG 9:00 |
| 0 | MWM | — |
| 0 | MWL | — |
| 3 | MSA | VIEW OF UPLEG OF THE D/S SIPHON, NORTH BARREL |
Properties (2)
- customer
- LACSD
- datetime
- 2017-07-21T00:14:00-07:00
