Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 16, 2017, 04:10 PM

  • 30 0343_30 0124_6162017_102752.mp4

Date
06/16/2017
W/O
0635597
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00878
PipeID
P17829
Time
9:10 AM
Certificate
415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7437
Sewer Name
30 SOUTH BAY CITIES MAIN TRUNK
City
REDONDO BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 30
Page No.
06
Purpose
Routine Assessment
Project
20170615DF_SOUTH_BAY_CITIES_MAIN_TR
Material
NRCP
Shape
Circular
Height
18 in.
Upstream MH
30 0124
Downstream MH
30 0343
Dir. of Survey
Upstream
Length Surveyed
228.9 ft.
Total Length
228.9 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole 30 0124 to 30 0343
MH: 30 0124MH: 30 0343upstream0 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 35% MAG COAT0 ft. AMH - Upstream Manhole, Survey Ends - 10:52 AM0 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish0 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish2.6 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: YES, 4"18.3 ft. MGP - General Photograph - SPALLING26.5 ft. MGP - General Photograph32.2 ft. MGP - General Photograph58.1 ft. MGP - General Photograph159.8 ft. MGP - General Photograph174.6 ft. MGP - General Photograph - AGGREGATE210.7 ft. MGP - General Photograph - PEELING/FLAKING226.9 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start226.9 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 35% MAG COAT226.9 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start228.9 ft. MWM - Water Mark, 30 %of cross sectional area228.9 ft. MWL - Water Level, 30 %of cross sectional area228.9 ft. AMH - Downstream Manhole, Survey Begins - 10:28 AM

Observation photos (9)

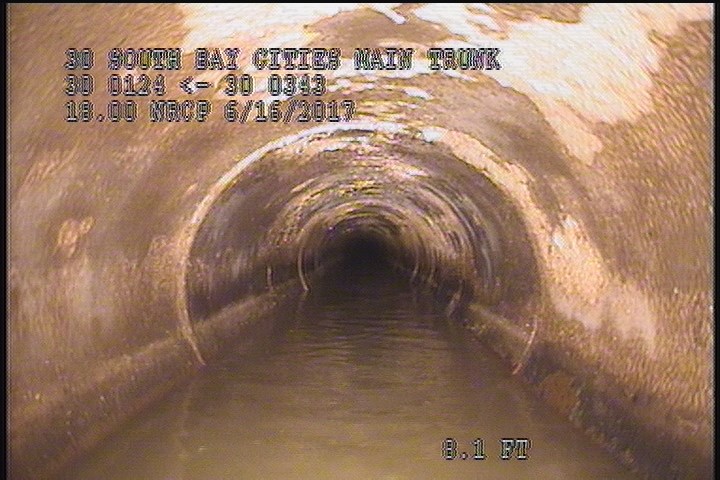

  • Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 35% MAG COAT

    2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 35% MAG COAT

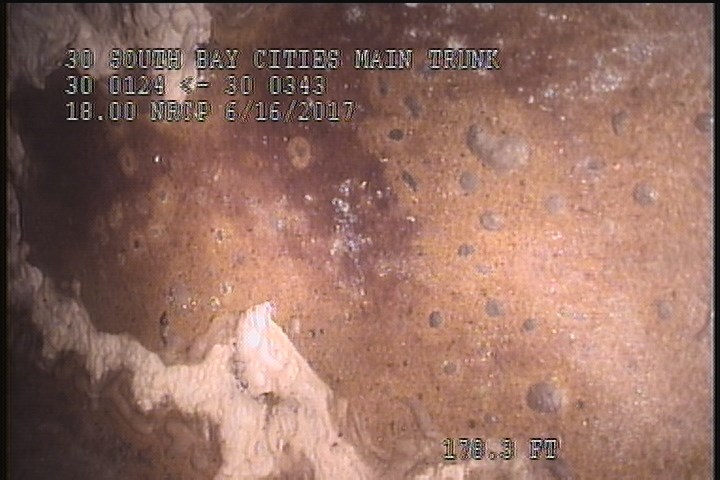

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

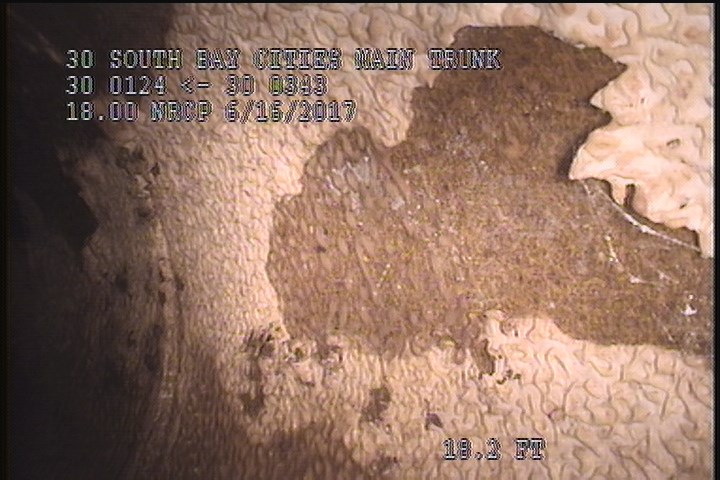

  • General Photograph - PEELING/FLAKING

    18.2 ft. - General Photograph - PEELING/FLAKING

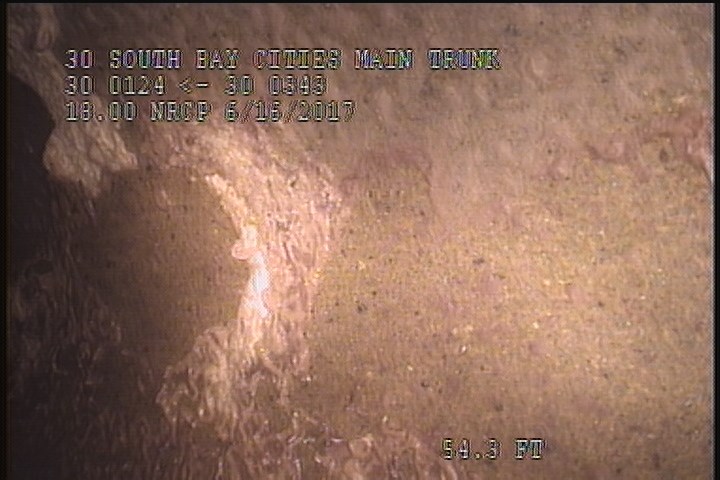

  • General Photograph - AGGREGATE

    54.3 ft. - General Photograph - AGGREGATE

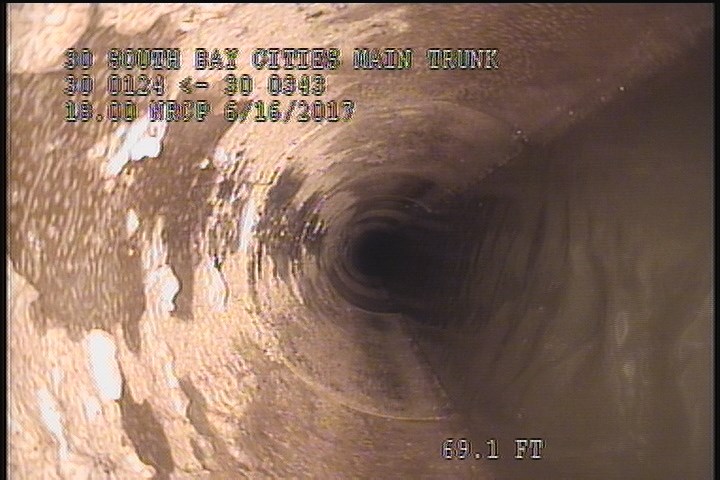

  • General Photograph

    69.1 ft. - General Photograph

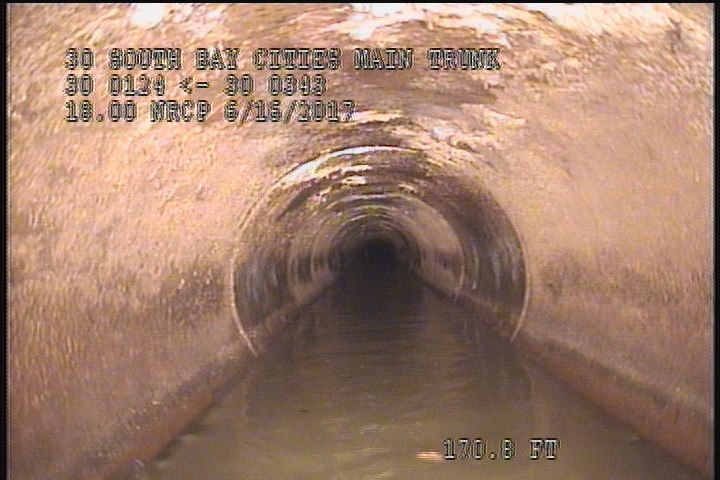

  • General Photograph

    170.8 ft. - General Photograph

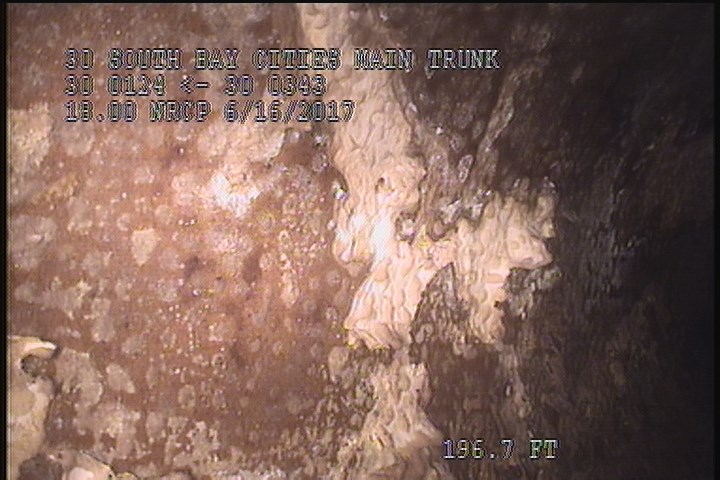

  • General Photograph

    196.7 ft. - General Photograph

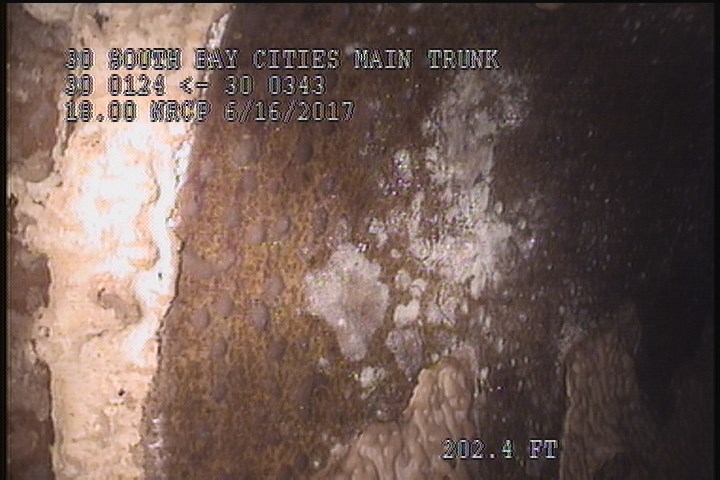

  • General Photograph

    202.4 ft. - General Photograph

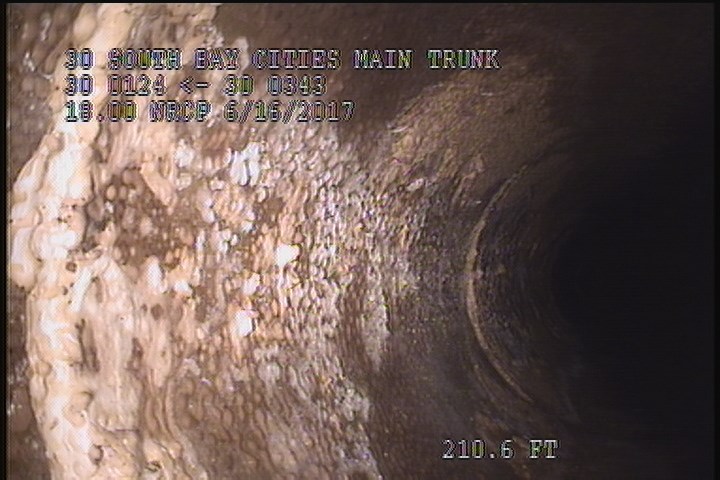

  • General Photograph - SPALLING

    210.6 ft. - General Photograph - SPALLING

All inspections of P17829Work order 0635597

Observations (18)

DistanceCodeObservation
2SSS—
54.3MGPAGGREGATE
228.9SZ35% MAG COAT
170.8MGP—
228.9AMH10:52 AM
2SZ35% MAG COAT
18.2MGPPEELING/FLAKING
2SAV—
0MWM—
228.9SSS—
0MWL—
226.3TFA—
210.6MGPSPALLING
202.4MGP—
0AMH10:28 AM
196.7MGP—
228.9SAV—
69.1MGP—
