Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 15, 2017, 03:58 PM

  • 30 0124_30 0123_6152017_090731.mp4

Date
06/15/2017
W/O
0635597
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00878
PipeID
P17828
Time
8:58 AM
Certificate
415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7433
Sewer Name
30 SOUTH BAY CITIES MAIN TRUNK
City
REDONDO BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 30
Page No.
06
Purpose
Routine Assessment
Project
20170615DF_SOUTH_BAY_CITIES_MAIN_TR
Material
NRCP
Shape
Circular
Height
18 in.
Upstream MH
30 0124
Downstream MH
30 0123
Dir. of Survey
Downstream
Length Surveyed
376 ft.
Total Length
376 ft.
Structural Index
2
Structural Quick
2100
Structural Rating
2
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole 30 0124 to 30 0123
MH: 30 0124MH: 30 0123downstream0 ft. AMH - Upstream Manhole, Survey Begins - 9:06 AM0.1 ft. MWM - Water Mark, 35 %of cross sectional area0.1 ft. MWL - Water Level, 30 %of cross sectional area2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 70% MAG COAT16.8 ft. MGP - General Photograph - PEELING/FLAKING82.4 ft. MGP - General Photograph - AGGREGATE151.4 ft. MGP - General Photograph - CONDENSATION/MAG/SPALLING240.9 ft. MGP - General Photograph - PEELING376 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 70% MAG COAT376 ft. AMH - Downstream Manhole, Survey Ends - 9:30 AM376 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

Observation photos (5)

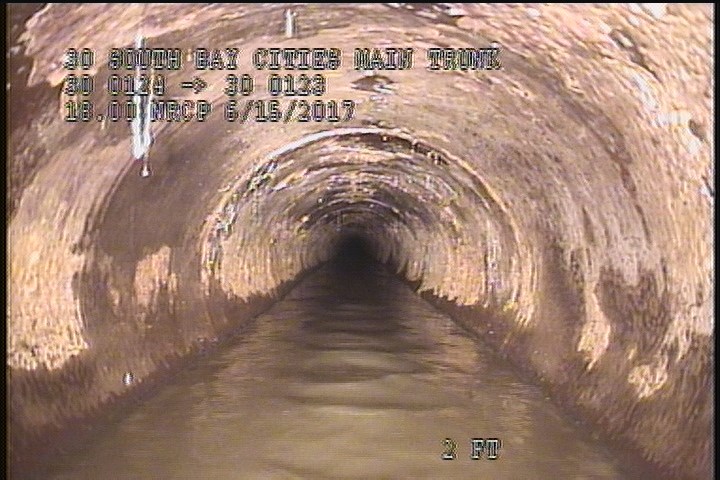

  • Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 70% MAG COAT

    2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 70% MAG COAT

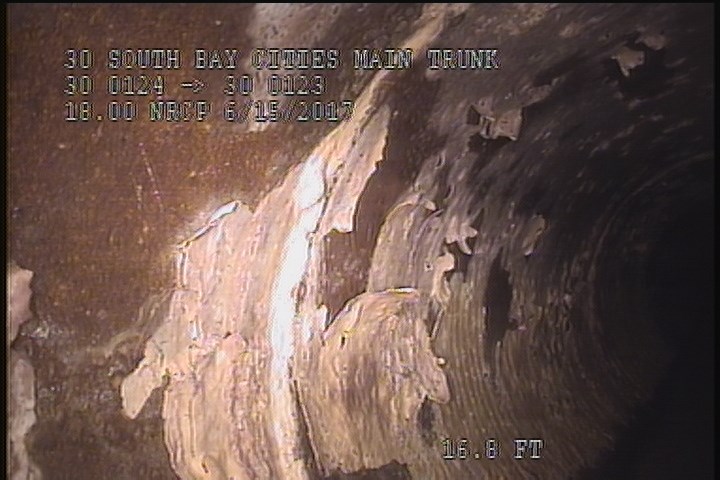

  • General Photograph - PEELING/FLAKING

    16.8 ft. - General Photograph - PEELING/FLAKING

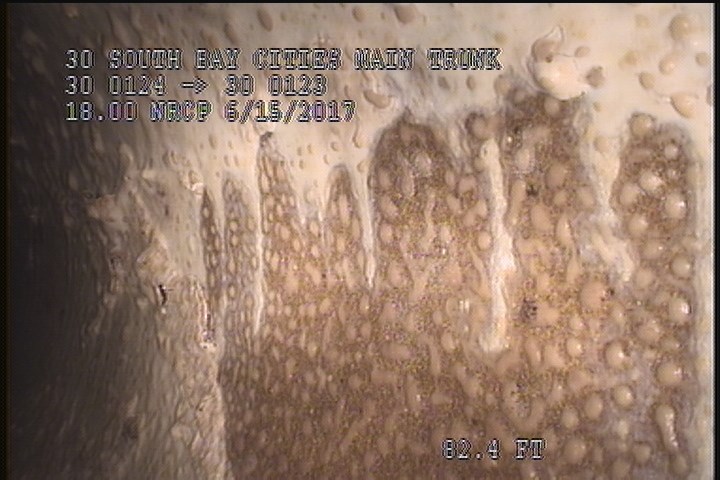

  • General Photograph - AGGREGATE

    82.4 ft. - General Photograph - AGGREGATE

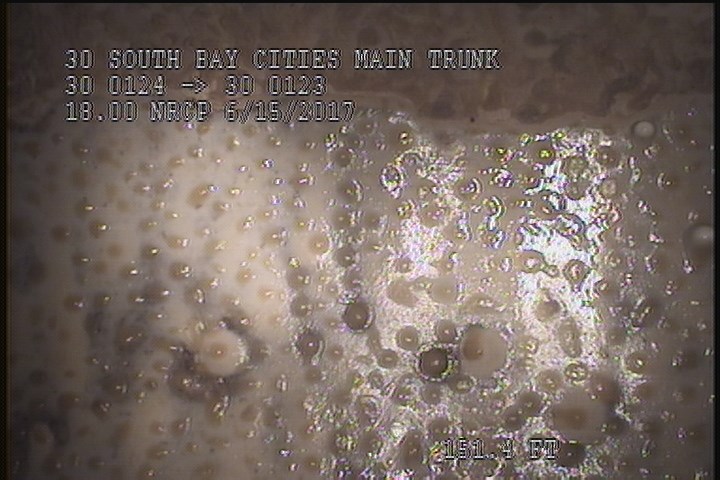

  • General Photograph - CONDENSATION/MAG/SPALLING

    151.4 ft. - General Photograph - CONDENSATION/MAG/SPALLING

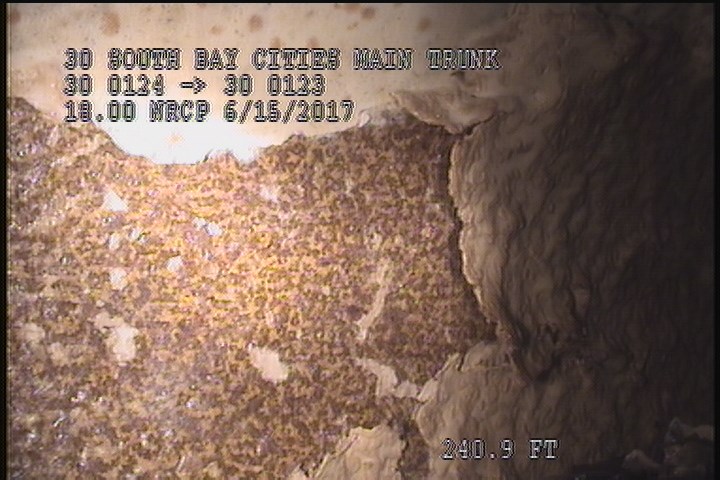

  • General Photograph - PEELING

    240.9 ft. - General Photograph - PEELING

All inspections of P17828Work order 0635597

Observations (12)

DistanceCodeObservation
16.8MGPPEELING/FLAKING
0.1MWM—
2SSS—
2SZ70% MAG COAT
376SZ70% MAG COAT
0AMH9:06 AM
151.4MGPCONDENSATION/MAG/SPALLING
0.1MWL—
376AMH9:30 AM
82.4MGPAGGREGATE
240.9MGPPEELING
376SSS—

Properties (3)

custom_field_two
3
customer
LACSD
datetime
2017-06-15T08:58:25-07:00
