Wastewater/Activity/PacpInspection/1.0Jun 12, 2017, 07:14 PM
30 0120_30 0338_6122017_124106.mp4
- Date
- 06/12/2017
- W/O
- 0635597
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00878
- PipeID
- P17824
- Time
- 12:14 PM
- Certificate
- 415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7432
- Sewer Name
- 30 SOUTH BAY CITIES MAIN TRUNK
- City
- REDONDO BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 30
- Page No.
- 06
- Purpose
- Routine Assessment
- Project
- 20170612DF_SOUTH_BAY_CITIES_MAIN_TR
- Material
- NRCP
- Shape
- Circular
- Height
- 18 in.
- Upstream MH
- 30 0338
- Downstream MH
- 30 0120
- Dir. of Survey
- Upstream
- Length Surveyed
- 90.2 ft.
- Total Length
- 90.2 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (5)

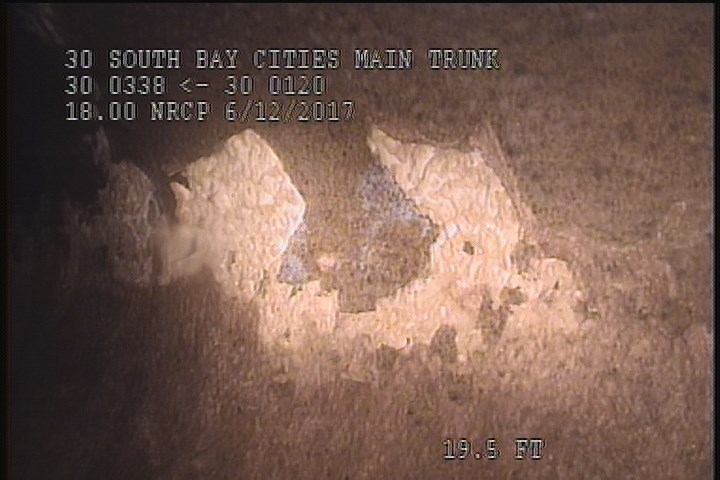

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

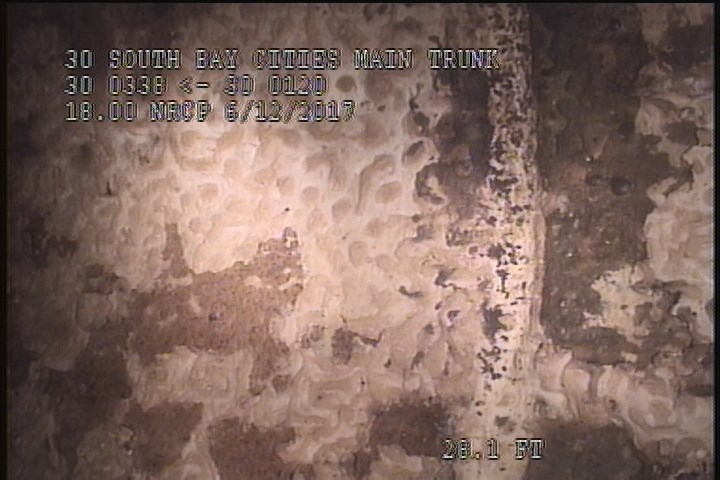

2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

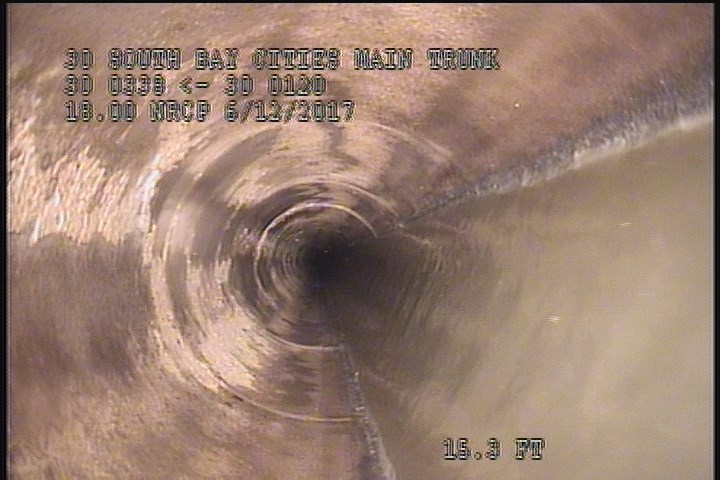

2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 55% MAG COAT

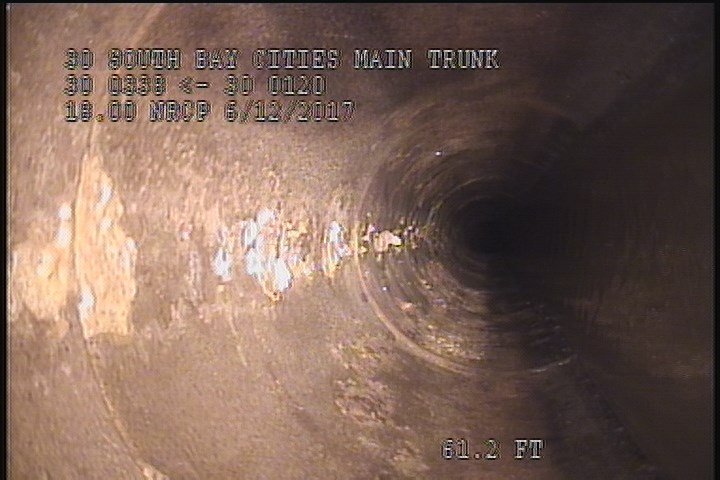

61.2 ft. - General Photograph

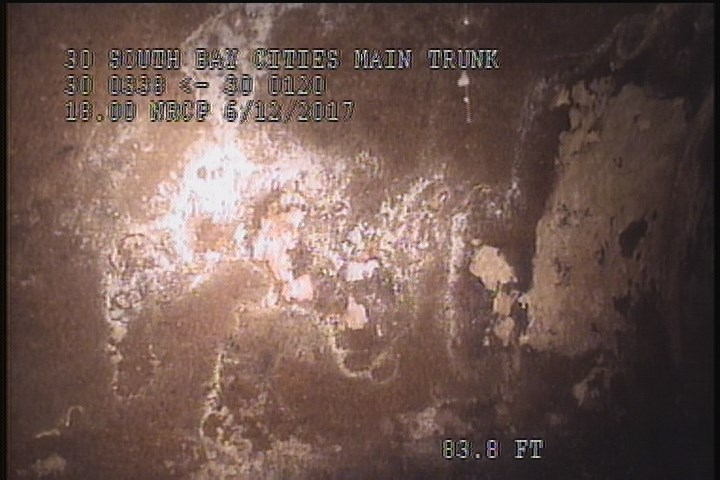

83.8 ft. - General Photograph
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 2 | SSS | — |
| 2 | SAV | — |
| 61.2 | MGP | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 87.7 | SZ | 55%MAG COAT |
| 87.7 | SSS | — |
| 83.8 | MGP | — |
| 0 | AMH | 12:16 PM |
| 87.7 | SAV | — |
| 2 | SZ | 55% MAG COAT |
| 90.2 | AMH | 12:54 PM |
Properties (3)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-06-12T12:14:59-07:00
